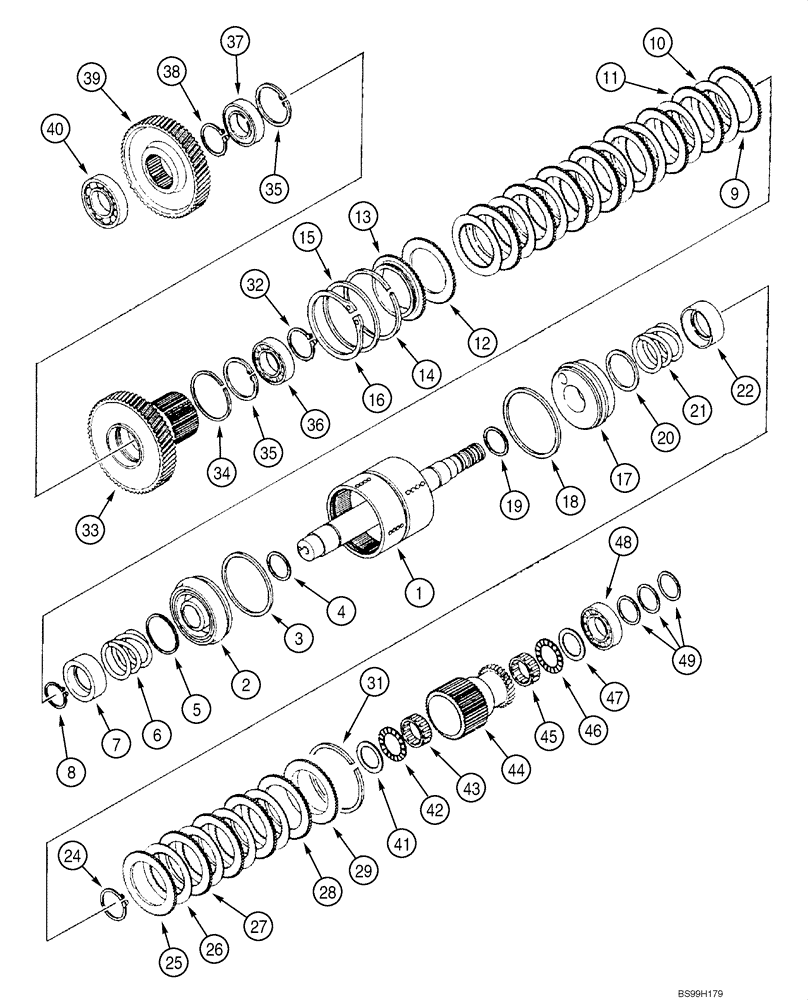

Запчасти Case 580SM (06-29) - TRANSMISSION ASSY, POWERSHIFT - CLUTCH, FORWARD DRIVE (06) - POWER TRAIN

REF

INSTRUCTION

High and Low Speed - Forward Drive, Clutch and Pinions

1шт.

336896A1

GEARBOX ASSY

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 49; Also Includes Parts On Figures 06-25 - 06-36; No Longer Available, Order 445174A1 Transmission

1шт.

87420798R

REMAN-TRANSMISSION

Reman, Transmission, Powershift; Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

445174A1

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 49; Also Includes Parts On Figures 06-25 - 06-36

1шт.

1

305726A1

SHAFT

Drum, High and Low, Forward; 336896A1 Transmission

1шт.

1

445310A1

SHAFT ASSY.

Drum, High and Low, Forward; 445174A1 Transmission

1шт.

2

291520A1

PISTON

Incl. Ref 3, 4

1шт.

3

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

Ring

1шт.

4

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

1шт.

5

291529A1

RING

Wear Ring

1шт.

6

291531A1

SPRING

1шт.

7

291530A1

RETAINER

Seat

1шт.

8

100-11196

SNAP RING,#196, Ext

1шт.

9

291578A1

DISC

Friction

1шт.

10

291580A1

DISC

Friction, Clutch Separator Plate

8шт.

11

291579A1

DISC

Friction

7шт.

12

291578A1

DISC

Friction

1шт.

13

291566A1

DISC

Backing Plate; 336896A1 Transmission

1шт.

13

445312A1

CLUTCH DRIVING PLATE

Backing Plate; 445174A1 Transmission

1шт.

14

292415A1

RING, SNAP

RING SNAP RETAINING RING

1шт.

15

291567A1

SPACER

1шт.

16

800-11115

SNAP RING,M115, Ext

1шт.

17

291520A1

PISTON

Incl. Ref 18, 19

1шт.

18

E114385

SEAL,123.49mm ID x 133.17mm OD x 9.68mm Thk

Ring

1шт.

19

E114386

SEAL,50.98mm ID x 58.03mm OD x 3.3mm Thk

1шт.

20

291529A1

RING

Wear Ring

1шт.

21

291531A1

SPRING

1шт.

22

291530A1

RETAINER

Seat

1шт.

24

100-11196

SNAP RING,#196, Ext

1шт.

25

291578A1

DISC

Friction

1шт.

26

291580A1

DISC

Friction, Clutch Separator Plate

4шт.

27

291579A1

DISC

Friction

3шт.

28

291578A1

DISC

Friction

1шт.

29

291571A1

DISC

Backing Plate

1шт.

31

292415A1

RING, SNAP

RING SNAP Retaining Ring

1шт.

32

800-1150

SNAP RING,M50, Ext

No. 50

1шт.

33

291558A1

PINION

Gear, Forward/Reverse Clutch, 54T; 336896A1 Transmission

1шт.

33

445311A1

GEAR

Forward/Reverse Clutch, 54T; 445174A1 Transmission

1шт.

34

291573A1

CIRCLIP

Retaining Ring; 336896A1 Transmission

1шт.

34

445313A1

SEAL

Lip Seal; 445174A1 Transmission

1шт.

35

800-2180

SNAP RING,M80, Int

2шт.

36

292426A1

BALL BEARING

1шт.

37

292431A1

BALL BEARING

1шт.

38

800-1150

SNAP RING,M50, Ext

No. 50

1шт.

39

291551A1

PINION

Gear, Driven, 42T

1шт.

40

292432A1

BALL BEARING

1шт.

41

294080A1

SPACER

Thrust Washer

1шт.

42

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

1шт.

43

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

1шт.

44

291556A1

PINION

Gear, High Clutch, 34T

1шт.

45

A178460

NEEDLE BEARING,44.99mm ID x 50.02mm OD x 16.8mm W

1шт.

46

A183452

THRUST BEARING,45.05mm ID x 66.85mm OD x 3.85mm W

1шт.

47

294080A1

SPACER

Thrust Washer

1шт.

48

292429A1

BALL BEARING,40mm ID x 80mm OD x 18mm W

1шт.

49

291528A1

SEALING RING

SEALRING Seal Ring

3шт.
