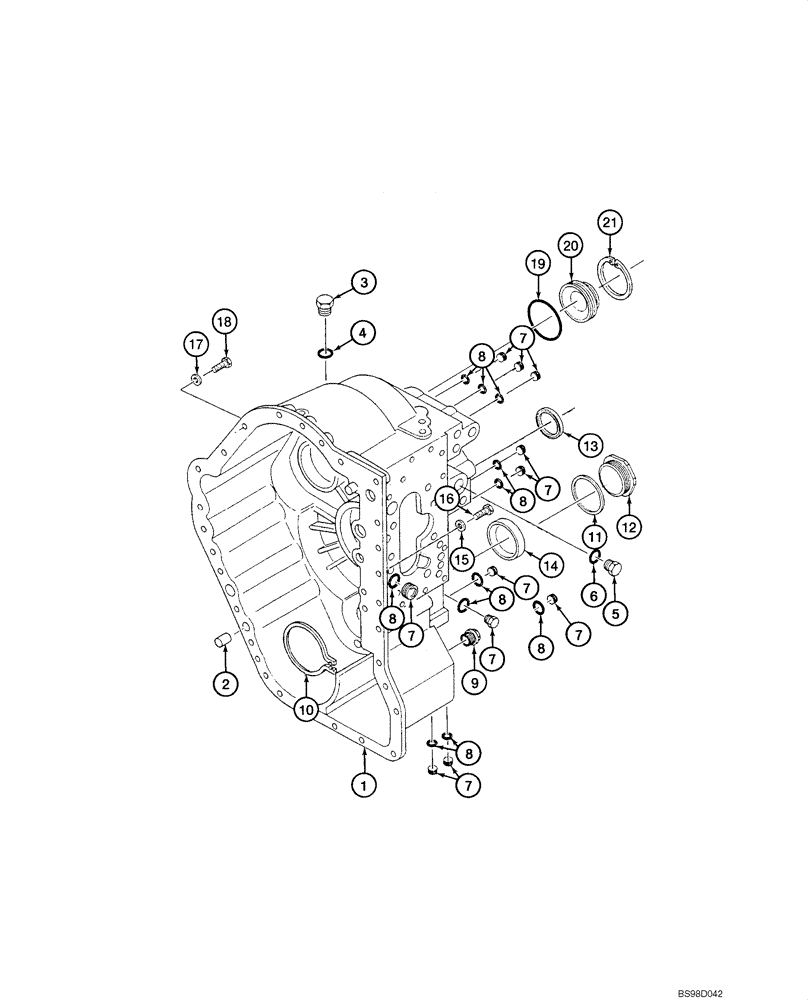

Запчасти Case 580SM (06-26) - TRANSMISSION ASSY, POWERSHIFT - HOUSING, REAR (06) - POWER TRAIN

336896A1

GEARBOX ASSY

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 21; Also Includes Parts On Figures 06-25 - 06-36; No Longer Available, Order 445174A1 Transmission

1шт.

87420798R

REMAN-TRANSMISSION

Reman, transmission, powershift; Does Not Include Torque Converter

1шт.

87420798C

CORE-TRANSMISSION

Return Part Number

1шт.

445174A1

TRANSMISSION

Powershift Transmission, Four Wheel Drive, Incl. Ref 1 - 21; Also Includes Parts On Figures 06-25 - 06-36

1шт.

1

291570A1

HOUSING

1шт.

2

292412A1

DOWEL

2шт.

3

292165A1

PLUG

Incl. Ref 4

1шт.

4

238-7116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 7, 75 Duro

1шт.

5

292170A1

PLUG

Incl. Ref 6

1шт.

6

238-7210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 7, 75 Duro

1шт.

7

292164A1

PLUG

Incl. Ref 8

11шт.

8

238-7011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 7, 75 Duro

1шт.

9

292414A1

PLUG

Drain, Magnetic

1шт.

10

292417A1

CIRCLIP

1шт.

11

L30039

GASKET,46.83mm ID x 58.74mm OD x 3.17mm Thk

1шт.

12

292171A1

PLUG

1шт.

13

291527A1

SEAL

Output

1шт.

14

292173A1

PLUG

PLUG, Output Shaft

1шт.

15

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

2шт.

16

628-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 10.9, Full Thd

2шт.

17

892-10010

LOCK WASHER,10.4mm ID x 18.1mm OD x 3.5mm Thk

7шт.

18

628-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

7шт.

19

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

20

366661A1

PLUG

COVER

1шт.

21

800-2168

SNAP RING,M68, Int

1шт.
