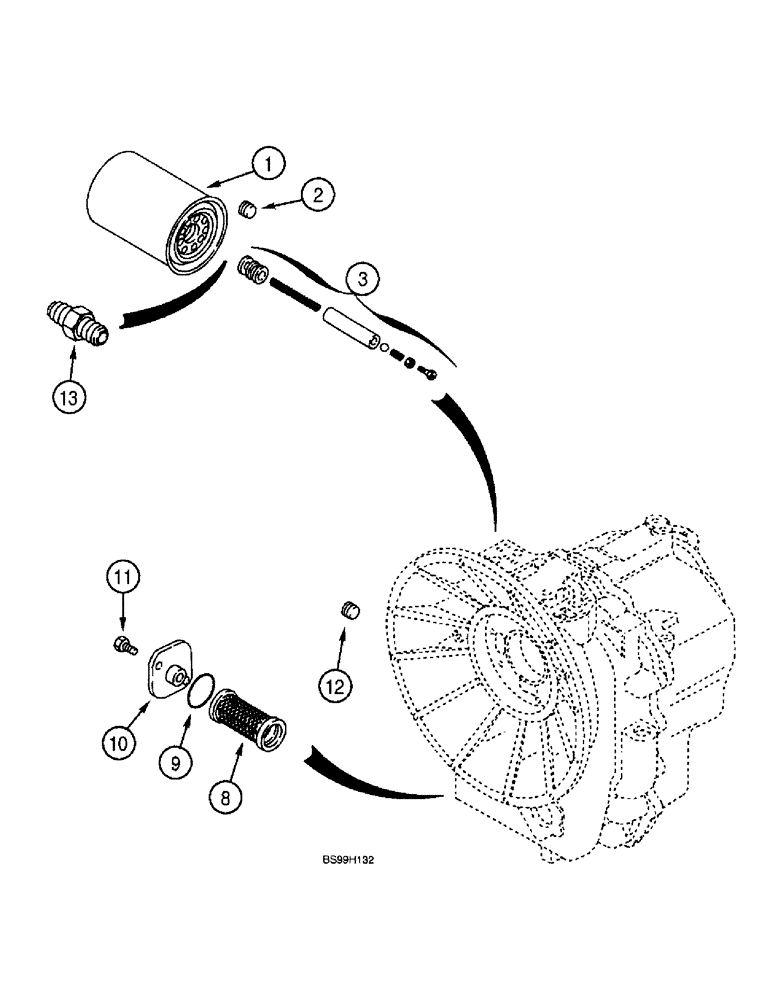

Запчасти Case 590SL (6-034) - CARRARO TRANSMISSION ASSEMBLY, OIL FILTERS, 2WD & 4WD, MODELS W/O POWERSHIFT TRANS. (06) - POWER TRAIN

123842A3

TRANSMISSION

TRANSMISSION ASSEMBLY - two wheel drive, new, w/integrated differential lock solenoid valve, parts list figures 6-34 - 6-58, Replaces 123842A2 transmission which used the chassis mounted differential lock solenoid valve, Fig. 6-156, no longer available

1шт.

When replacing A2 transmissions with A3 transmissions, also order E135809 plug to plug extra port on transmission rear housing (refer to figures 6-156 or 6-158); also order 333264A1 pigtail harness to extend the main harness wire from the old location of the chassis mounted differential lock solenoid valve to the differential lock solenoid valve that is an integral part of the A3 transmissions.

1шт.

123842A3R

REMAN-TRANSMISSION

590SL Series 2, Two Wheel Drive, w/Integrated Differential Lock Control Valve, **Note - Supplier P/N For Case P/N 123842A3R Is 137373, If This Supplier P/N Is Not On Unit Being Removed From Tractor, Do Not Order 123842A3R As A Replacement

1шт.

123842A3C

CORE-TRANSMISSION

Return Number

1шт.

1

254686A1

FILTER CARTRIDGE,Spin-on, 13/16” – 16, 97mm OD x 151.6mm L

FILTER, OIL FILTER - oil, cartridge, transmission, 152 mm (6 inch) long

1шт.

2

181101A1

PLUG,M14 x 1.5

PLUG - oil, 14 - 1.5 mm, used on four wheel drive models only

1шт.

3

181274A1

REPAIR KIT

KIT - valve, used on four wheel drive models only

1шт.

8

278534A1

FILTER SCREEN

FILTER - oil, screen

1шт.

9

100748A1

O-RING,1.421" ID x 1.699" OD x 0.139"

O-RING - sealing

1шт.

10

181219A1

COVER

COVER - access, oil filter

1шт.

11

614-8018

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 8 - 1.25 x 18 m

2шт.

12

181102A1

PLUG

PLUG - oil, used on four wheel models only

1шт.

13

181202A1

FITTING

CONNECTOR - straight, if used

1шт.

E135809

PLUG

PLUG - used with 123842A3 or 123843A3 transmissions with integrated differential lock solenoid valve, if used

1шт.

When replacing A2 transmissions with A3 transmissions, also order E135809 plug to plug extra port on transmission rear housing (refer to figures 6-156 or 6-158); also order 333264A1 pigtail harness to extend the main harness wire from the old location of the chassis mounted differential lock solenoid valve to the differential lock solenoid valve that is an integral part of the A3 transmissions.

1шт.

333264A1

HARNESS

HARNESS - pigtail, differential lock, 540 mm (21-9/32 inch) long, used when Replacing A2 transmissions (which use a chassis mounted differential lock solenoid valve, w/A3 transmissions (which have the integrated differential lock solenoid valve, if used

1шт.
