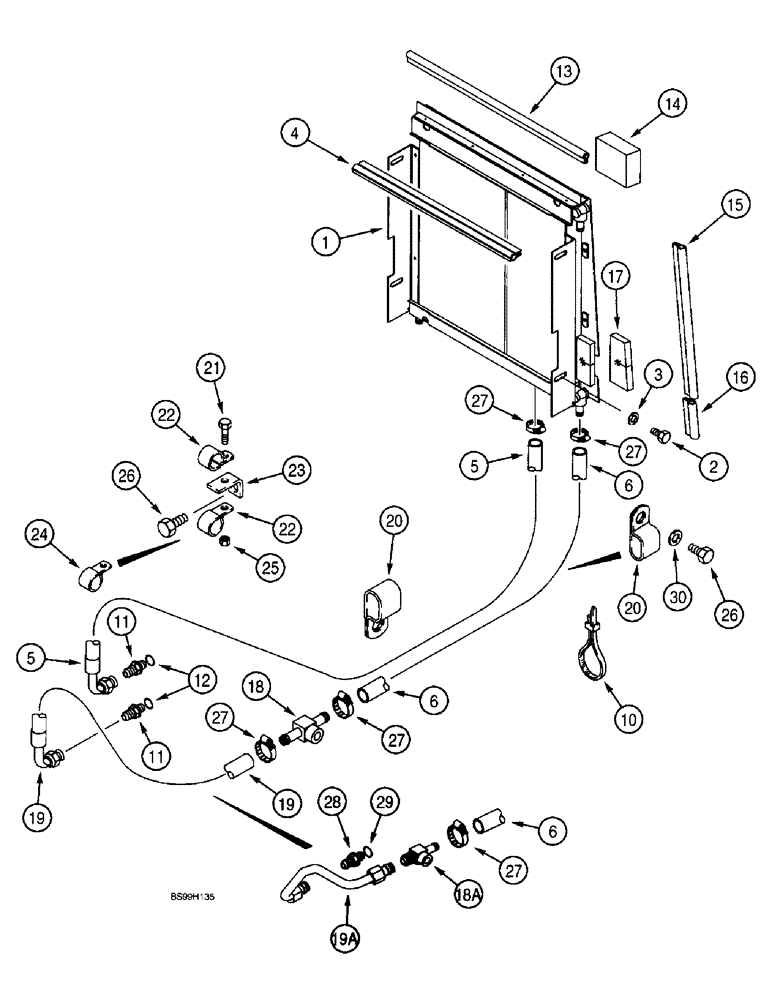

Запчасти Case 590SL (6-026) - TRANS. COOLING SYSTEM, USED W/ 239739A1 HEAVY DUTY RADIATOR ASSY., MODELS W/ POWERSHIFT TRANS. (06) - POWER TRAIN

1

301239A1

COOLER, OIL

COOLER - hydraulic oil, heavy duty, used with 239739A1 heavy duty radiator on fig. 2-4, uses radiator upper mounting bolts, see figure 9-80 for hardware and fig. 8-8 for additional cooler hydraulic routing, includes Ref. 17

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

4

183735A1

OIL SEAL

- radiator to oil cooler

1шт.

5

303987A2

HOSE

- 2075 mm (81-11/16 inch) long, transmission to cooler inlet, Replaces 303987A1, 2300 mm long hose

1шт.

6

301340A2

HOSE

- 2000 mm (78-3/4 inch) long, cooler outlet to transmission, Replaces 303988A1, 2500 mm long and 303988A2 2200 mm long hose

1шт.

10

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, retaining

2-5шт.

11

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 12

1-2шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

233972A1

SEAL

- 564 mm (22-7/32 inch) long, horizontal, Serial Range: cooler-wrapper

1шт.

14

234719A1

SEAL

SEAL - 70 x 100 x 32 mm, upper corner

2шт.

345-44

ADHESIVE

- spray can, 3M No. 74, 23 ounce

1шт.

15

233970A1

SEAL

- 472 mm (18-5/8 inch) long, vertical, Serial Range: cooler-wrapper

2шт.

16

233971A1

SEAL

- 103 mm (4-1/16 inch) long, lower corner

2шт.

17

234499A1

SEAL

- 45 x 120 x 15 mm, furnished with cooler

2шт.

18

304258A1

FITTING

TEE - special, no longer available, order 359210A1, Ref. 18A

1шт.

18a

359210A1

FITTING

TEE - special

1шт.

19

304251A3

PIPE

HOSE - 399 mm (15-11/16 inch) long, at transmission, Replaces 304251A1 852 mm long and 304251A2, 602 mm long hose, no longer available, order 241001A4 tube, Ref. 19A

1шт.

19a

241001A4

TUBE

- at transmission

1шт.

20

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

- P-type, double

1-2шт.

21

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

1шт.

22

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

P-type, 2 used with Ref. 19 hose 15/16", Insul, 1/2" Bolt

1-2шт.

23

234442A1

SUPPORT

BRACKET - support

1шт.

24

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

P-type, Used with Ref. 19A tube 3/4", Insul, 1/2" Bolt

1шт.

26

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 25 mm

1-2шт.

27

328186A1

HOSE CLAMP,400mm L

CLAMP - hose

3-4шт.

28

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 29

1шт.

29

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

30

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

1шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

2шт.
