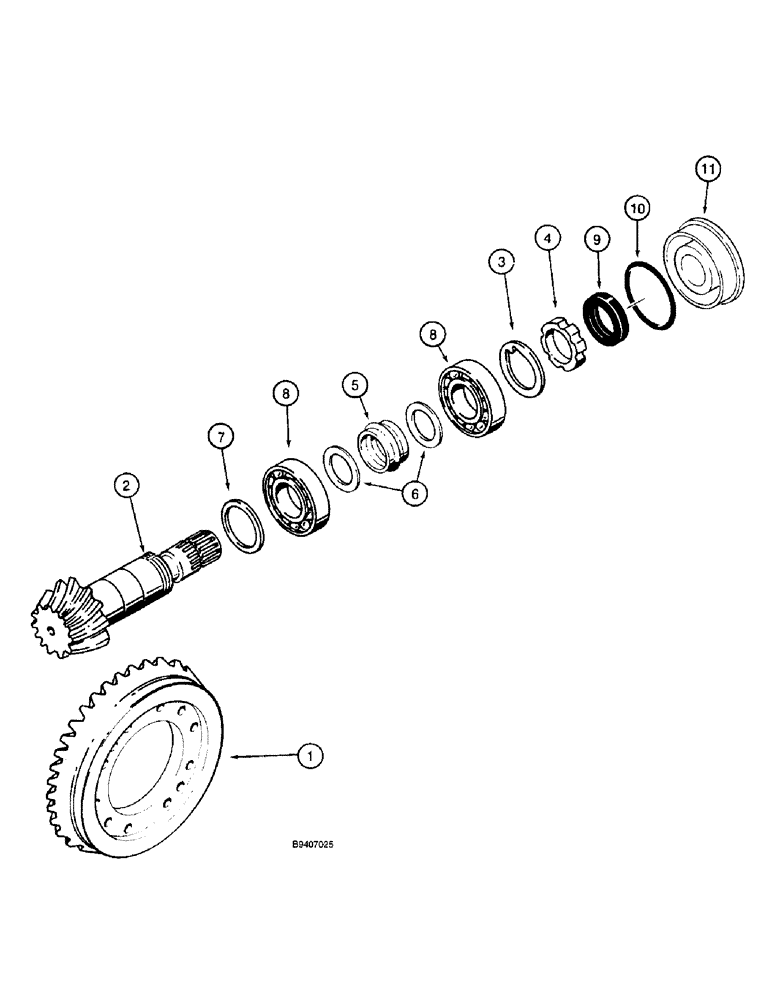

Запчасти Case 590SL (6-016) - FRONT DRIVE AXLE, RING AND PINION GEAR SET (06) - POWER TRAIN

127600A1

AXLE, FRONT

AXLE ASSEMBLY - front drive, parts list figures 6-4 - 6-16, models without powershift transmission, Includes: Ref. 1 - 10 and set gear

1шт.

225063A1

AXLE, FRONT

AXLE ASSEMBLY - front drive, parts list figures 6-4 - 6-16, models with powershift transmission, Includes: Ref. 1 - 10 and set gear

1шт.

195210A1

GEAR SET

Ring and pinion, 127600A1 axle without powershift transmission, Incl Ref 1 - 6

1шт.

311047A1

GEAR, BEVEL

GEAR - set, ring and pinion, 225063A1 axle with powershift transmission, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

GEAR - ring, differential

1шт.

2

NSS

NOT SOLD SEPARAT

GEAR - pinion, differential

1шт.

3

K261065

LOCK WASHER

- special

1шт.

4

K261014

RING NUT,M40 x 1.5

RING - nut, pinion gear

1шт.

5

1349058C1

SPACER

- collapsible

1шт.

6

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

- spacer

2шт.

7

140954A1

SHIM,2.50mm Thk

(0.098") 2.50mm Thk

1шт.

7

140953A1

SHIM,2.60mm Thk

(0.102") 2.60mm Thk

1шт.

7

140951A1

SHIM,2.70mm Thk

(0.106") 2.70mm Thk

1шт.

7

140949A1

SHIM,2.80mm Thk

(0.110") 2.80mm Thk

1шт.

7

140948A1

SHIM,2.90mm Thk

(0.114 ") 2.90mm Thk

1шт.

7

140943A1

SHIM,3.00mm Thk

(0.118") 3.00mm Thk

1шт.

7

140944A1

SHIM,3.10mm Thk

(0.122") 3.10mm Thk

1шт.

7

140945A1

SHIM,3.20mm Thk

(0.125") 3.20mm Thk

1шт.

7

140946A1

SHIM,3.30mm Thk

(0.129") 3.30mm Thk

1шт.

7

140947A1

SHIM,3.40mm Thk

(0.133") 3.40mm Thk

1шт.

8

K395090

TAPERED BEARING,40mm ID x 90mm OD

BEARING, ROLLER, TAPERED, Pinion gear

2шт.

9

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil

1шт.

10

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

11

128570A1

FLANGE

COVER - differential

1шт.

B17575

FLUID

SEALANT - black RTV silicone, 89 ml (3 ounce) tube, differential cover to differential carrier, not shown

1шт.
