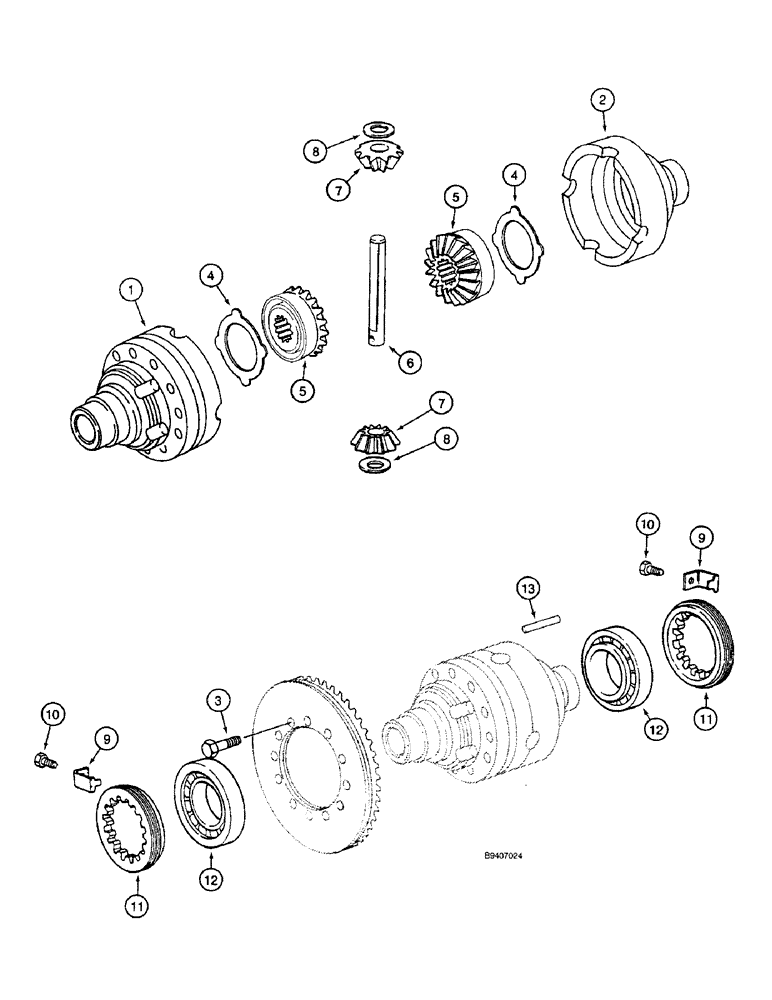

Запчасти Case 590SL (6-014) - FRONT DRIVE AXLE, DIFFERENTIAL (06) - POWER TRAIN

127600A1

AXLE, FRONT

AXLE ASSEMBLY - front drive, parts list figures 6-4 - 6-16, models without powershift transmission, Includes: Ref. 1 - 13

1шт.

225063A1

AXLE, FRONT

AXLE ASSEMBLY - front drive, parts list figures 6-4 - 6-16, models with powershift transmission, Includes: Ref. 1 - 13

1шт.

294933A1

HOUSING

Assy, Differential, Incl. Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - differential, flange half

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - differential, plain half

1шт.

3

827-10075

BOLT,Hex, M10 x 1.5 x 75mm, Cl 10.9

- hex, 10 - 1.5 x 75 mm, class 10.9

12шт.

4

1967003C1

THRUST WASHER

WASHER - thrust, differential

2шт.

5

231397A1

SERVICE KIT

KIT, SERVICE, Set - Gear, Differential, Service replacement, Incl Ref. 5 - 8 and 13

1шт.

5

N14407

GEAR

- side, differential, no longer available, for service order 231397A1 set

2шт.

6

K395087

SHAFT

- Pinion gear, No longer available, For service order 231397A1 set

1шт.

7

N14408

SUN GEAR

GEAR - pinion, differential, no longer available, for service order 231397A1 set

2шт.

8

K395075

THRUST WASHER

WASHER, THRUST, Pinion gear, No longer available, For service order 231397A1

2шт.

9

1966153C1

LOCKING PLATE

BRACKET - lock

2шт.

10

112486A1

BOLT,Hex, M6 x 12

BOLT - hex, self-locking, special, 6 - 1 x 12 mm

2шт.

11

1966559C1

NUT

RING, LOCKING

2шт.

12

K395027

TAPERED BEARING

BEARING, ROLLER, TAPERED, Differential

2шт.

13

K395086

PIN

- dowel, no longer available, for service order 231397A1 set

1шт.

B17575

FLUID

SEALANT - black, RTV silicone, 89 ml (3 ounces) tube, bolt to differential housing, not shown

1шт.
