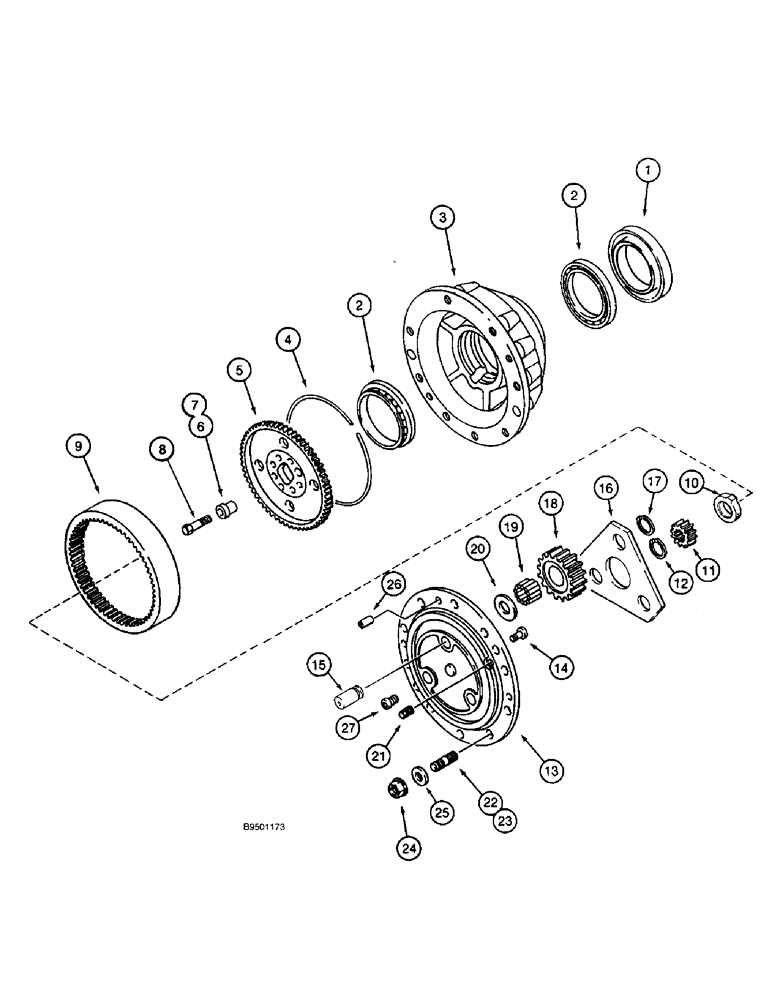

Запчасти Case 590SL (6-012) - FRONT DRIVE AXLE, PLANETARY (06) - POWER TRAIN

127600A1

AXLE, FRONT

AXLE ASSEMBLY - front drive, parts list figures 6-4 - 6-16, models without powershift transmission, Includes: Ref. 1 - 26

1шт.

225063A1

AXLE, FRONT

AXLE ASSEMBLY - front drive, parts list figures 6-4 - 6-16, models with powershift transmission, Includes: Ref.1 - 26

1шт.

1

1349265C1

OIL SEAL,149mm ID x 176mm OD x 16mm Thk

- oil, hub, 149 x 176 x 16

2шт.

2

K395101

TAPERED BEARING,109.5mm ID x 126mm x 21.4mm L

BEARING - ball, hub

4шт.

3

K395123

HUB

- wheel attaching

2шт.

4

H437679

RING, SNAP

RING - locking

2шт.

5

H437678

RING, FLYWHEEL

GEAR - support, Used With (2) 24 mm OD and (6) 20 mm OD Bushings, Ref 6, 7

2шт.

5a

295581A1

PINION CARRIER

GEAR - support, not shown; Used With (8) 20 mm OD Bushings, Ref 6

2шт.

6

107071A1

BUSHING

Centering, 20 mm OD

6-8шт.

7

107072A1

CENTERING RING

BUSHING - centering, 24 mm O.D., centering; If Used

2шт.

8

K395131

BOLT,Hex, M14 x 1.5 x 65mm, Cl 10.9

BOLT, , Special Hex, M14 x 65, Cl 10.9

8шт.

9

H437677

GEAR, RING

GEAR - internal-tooth, planetary

2шт.

10

107073A1

WASHER,30mm ID x 49mm OD x 15mm H

SPACER - pinion gear, one piece

2шт.

11

K395114

GEAR

- pinion, axle shaft

2шт.

12

800-1129

SNAP RING,M29, Ext

RING - external retaining, No. 29, pinion gear

2шт.

K262251

PINION CARRIER

CARRIER ASSEMBLY - planetary, Includes: Ref. 13 - 15

2шт.

13

NSS

NOT SOLD SEPARAT

CARRIER - planetary

1шт.

14

K395093

HEADED PIN,12mm OD x 15mm L

PIN - locking, planetary carrier

1шт.

15

NSS

NOT SOLD SEPARAT

SHAFT - pinion gear

3шт.

16

K395122

PLATE

WASHER - thrust, pinion gear, inner

2шт.

17

800-1134

SNAP RING,M34, Ext

RING, SNAP, , Retaining M34, Ext

6шт.

18

K395110

GEAR

- pinion, planetary

6шт.

19

119685A1

NEEDLE BEARING

BEARING - needle, planetary gear, package of 10

18шт.

20

K395091

THRUST WASHER

WASHER, THRUST, Pinion gear, Outer

6шт.

21

A156873

PLUG, DRAIN,M22 x 1.5

2шт.

22

K260218

STUD

- without collar, special

12шт.

23

N13515

STUD

- with collar, special, for recessed bolt holes

4шт.

24

825-11418

NUT,M18 x 1.5, Cl 8

- hex, 18 mm - 1.5, special, wheel mounting, purchase separately

16шт.

25

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened, special, wheel mounting, purchase separately

16шт.

26

K395094

DOWEL,M18 x 36

Pin, Planetary cover M18 x 36

4шт.

27

K395029

SCREW

- special, planetary cover

4шт.

B17575

FLUID

SEALANT - black RTV silicone, 89 ml (3 ounce) tube, planetary cover to hub, not shown

1шт.
