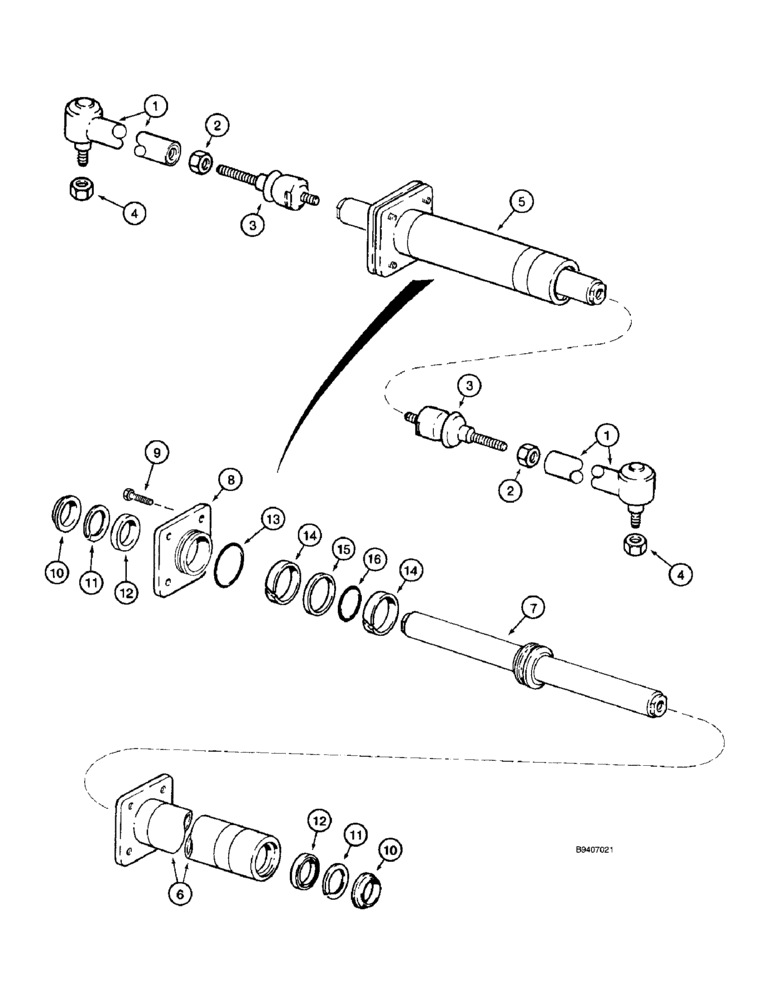

Запчасти Case 590SL (6-008) - FRONT DRIVE AXLE, STEERING CYLINDER (06) - POWER TRAIN

127600A1

AXLE, FRONT

AXLE ASSEMBLY - front drive, parts list figures 6-4 - 6-16, models without powershift transmission, Includes: Ref. 1 - 16

1шт.

225063A1

AXLE, FRONT

AXLE ASSEMBLY - front drive, parts list figures 6-4 - 6-16, models with powershift transmission, Includes: Ref. 1 - 16

1шт.

D142916

BALL JOINT

ARM ASSEMBLY - steering, Includes: Ref.1 - 3

2шт.

1

183677A1

BALL JOINT,34mm OD x 260mm L

JOINT - ball, ball, swivel side

1шт.

2

126143A1

NUT

NUT - hex, special

1шт.

3

N14377

ARTICULATION

JOINT - ball

1шт.

4

107070A1

LOCK NUT

NUT - hex, self-locking, 20 mm - 1.5

2шт.

5

D149729

STEERING CYLINDER,Double Acting, 36mm Rod, 121mm Stroke

CYLINDER ASSEMBLY - steering, order D149739 kit to service seals, see below, Includes: Ref.6 - 16

1шт.

6

D149738

STEERING CYLINDER

TUBE - cylinder

1шт.

7

D149736

ROD

- piston

1шт.

8

D149737

GLAND

- cylinder

1шт.

9

114296A1

BOLT

BOLT - self locking, special, steering cylinder, for service order 100524A1 bolt and 892-11012 washer

4шт.

10

NSS

NOT SOLD SEPARAT

WIPER - rod

2шт.

Part of Seal Kit, P/N D149739

1шт.

11

NSS

NOT SOLD SEPARAT

RING - backup

2шт.

Part of Seal Kit, P/N D149739

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - rod

2шт.

Part of Seal Kit, P/N D149739

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING - gland

1шт.

Part of Seal Kit, P/N D149739

1шт.

14

NSS

NOT SOLD SEPARAT

RING - wear

2шт.

Part of Seal Kit, P/N D149739

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

Part of Seal Kit, P/N D149739

1шт.

16

NSS

NOT SOLD SEPARAT

O-RING - expander

1шт.

Part of Seal Kit, P/N D149739

1шт.

D149739

SEAL PACKAGE

KIT - seal, steering cylinder, for rod, gland, and piston, includes Ref. 10 - 16

1шт.

B17575

FLUID

SEALANT - black, RTV silicone, 89 ml (3 ounce) tube, cylinder flange to cylinder, not shown

1шт.
