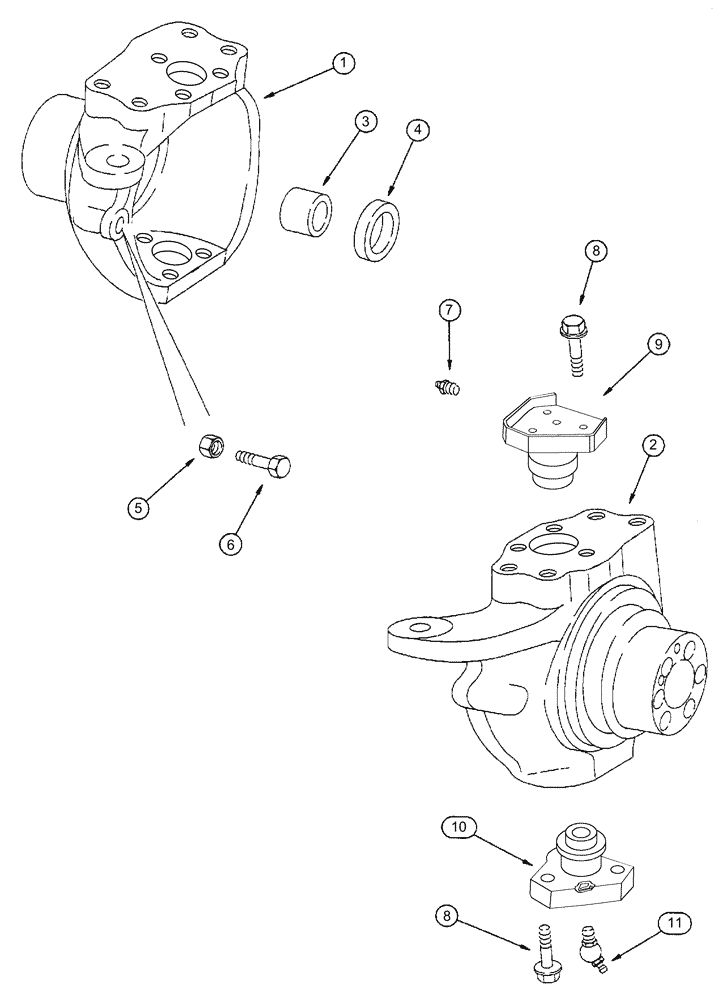

Запчасти Case 590SL (6-006) - FRONT DRIVE AXLE, SWIVEL HOUSING (06) - POWER TRAIN

127600A1

AXLE, FRONT

front drive, parts list Figures 6-4 - 6-16, Includes: Ref. 1 - 11; models without powershift transmission

1шт.

225063A1

AXLE, FRONT

front drive, parts list figures 6-4 - 6-16; Incl. Ref 1 - 11; models with powershift transmission

1шт.

1

195208A1

HOUSING

Swivel, LH; Used With H437678 Ring Gear Carrier, Which Uses (2) 24 mm OD & (6) 20 mm OD Bushings, Ref 5, 6, 7 on Fig 6-12; No Longer Available, Order (1) 295576A1 Housing Below, (1) 295581A1 Ring Gear Carrier & (2) 107071A1 20 mm OD

1шт.

1

295576A1

HUB

Swivel, LH; Used With 295581A1 Ring Gear Carrier, Which Uses (8) 107071A1 20 mm OD Bushings, Ref 5A, 6 on Fig 6-12

1шт.

2

195209A1

HOUSING

Swivel, RH; Used With H437678 Ring Gear Carrier, Which Uses (2) 24 mm OD & (6) 20 mm OD Bushings, Ref 5, 6, 7 on Fig 6-12; No Longer Available, Order (1) 295575A1 Housing Below, (1) 295581A1 Ring Gear Carrier & (2) 107071A1 20 mm OD

1шт.

2

295575A1

HOUSING

Swivel, RH; Used With 295581A1 Ring Gear Carrier, Which Uses (8) 107071A1 20 mm OD Bushings, Ref 5A, 6 on Figure 6-12

1шт.

3

1967535C1

BUSHING

- swivel housing w/o powershift

2шт.

3

K395019

BUSHING

- swivel housing w/ powershift

2шт.

4

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil, swivel housing w/o powershift

2шт.

4

K395103

OIL SEAL

- oil, swivel housing w/ powershift

2шт.

5

85805986

NUT,M16

2шт.

6

1537664C1

BOLT,M16 x 100mm

BOLT - special, steering stop, 16 mm

2шт.

7

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, , Swivel cap M6 x 1, 16mm lg

2шт.

8

D150214

BOLT,Lock, Hex, M14 x 2 x 35mm, Cl 10.9

BOLT - special

16шт.

9

122260A1

PIVOT

PIN - king, swivel housing cap, upper

2шт.

Ref. 9 is a triangular piece with only three holes, not as illustrated.

1шт.

10

122259A1

PIVOT,120mm OD, 15mm ID, 5mm L

PIN - king, swivel housing cap, lower

2шт.

11

N13505

LUBE NIPPLE,45 Degree, M6 x 1

NIPPLE, LUBE, , Special, Swivel cap 45º, M6 x 1

2шт.

B17575

FLUID

SEALANT - black RTV silicone, 3 ounce (89 ml) tube, wear ring to swivel housing, not shown

1шт.
