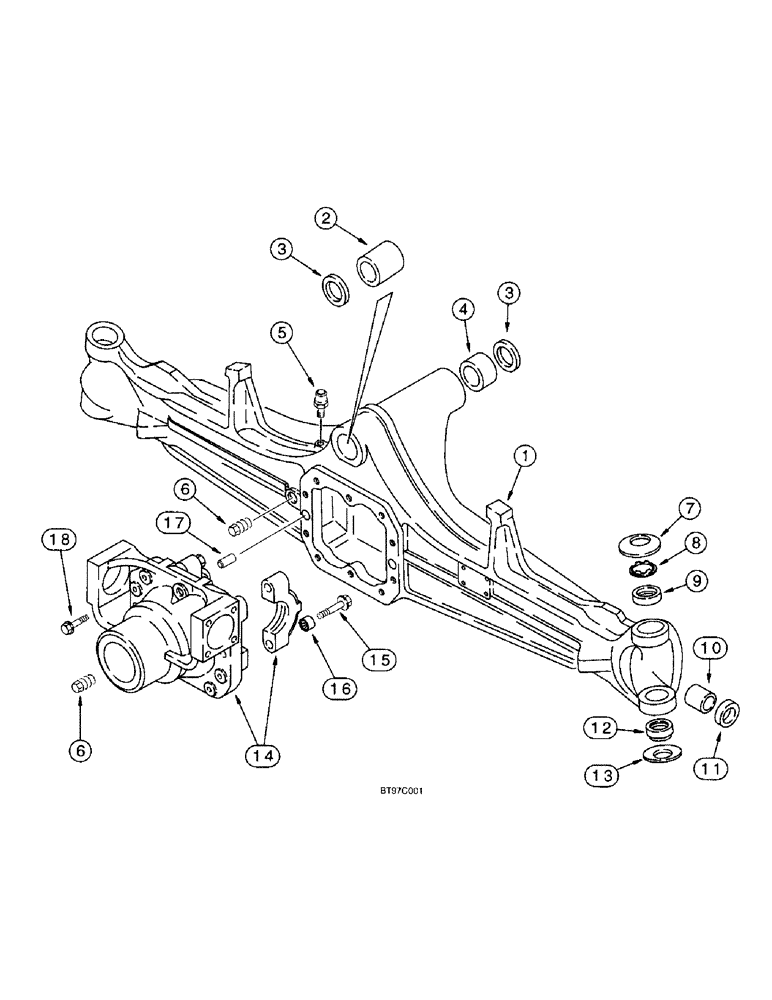

Запчасти Case 590SL (6-004) - FRONT DRIVE AXLE, AXLE HOUSING (06) - POWER TRAIN

127600A1

AXLE, FRONT

AXLE ASSEMBLY - front drive, parts list figures 6-4 - 6-16, models without powershift transmission, Includes: Ref. 1 - 18

1шт.

225063A1

AXLE, FRONT

AXLE ASSEMBLY - front drive, parts list figures 6-4 - 6-16, models with powershift transmission, Includes: Ref. 1 - 18

1шт.

1

195207A1

HOUSING

- front axle

1шт.

2

D149725

BUSHING,59.75 OD x 54mm L

- rear pivot

1шт.

3

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

- bushing, front and rear

2шт.

4

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

- front pivot

1шт.

5

1966149C1

BREATHER

- axle housing

1шт.

6

A156873

PLUG, DRAIN,M22 x 1.5

Housing and Carrier M22 x 1.5

2шт.

7

122262A1

BELLEVILLE WASHER

- Belleville, upper

2шт.

8

144611A1

SHIM

WASHER - spacer, front axle

2шт.

9

N14372

BUSHING

BEARING - roller, housing

2шт.

10

K395019

BUSHING

- housing w/ powershift

2шт.

10

1967535C1

BUSHING

- housing w/o powershift

2шт.

11

K395103

OIL SEAL

- oil w/o powershift

2шт.

11

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

- oil w/ powershift

2шт.

12

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

BEARING - roller, housing, lower

2шт.

13

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

- Belleville, lower

2шт.

144454A1

SUPPORT ASSY.

CARRIER ASSEMBLY - differential, Includes: Ref. 14 - 16

1шт.

14

NSS

NOT SOLD SEPARAT

CARRIER - differentail

1шт.

15

S301065

BOLT,Hex Flg, M14 x 75, 12.9

BOLT, Special

4шт.

16

1966136C1

BUSHING,15mm ID x 18mm OD x 12mm L

- centering, carrier

4шт.

17

1966138C1

DOWEL

PIN - dowel, Serial Range: housing-carrier

2шт.

18

5194169

BOLT,Hex Flg, M12 x 33, 12.9

BOLT - hex flange, 12 x 33 mm, class 12.9, Carrier to housing

10шт.

B17575

FLUID

SEALANT - black RTV silicone, 89 ml (3 ounce) tube, differential carrier to axle housing, not shown

1шт.
