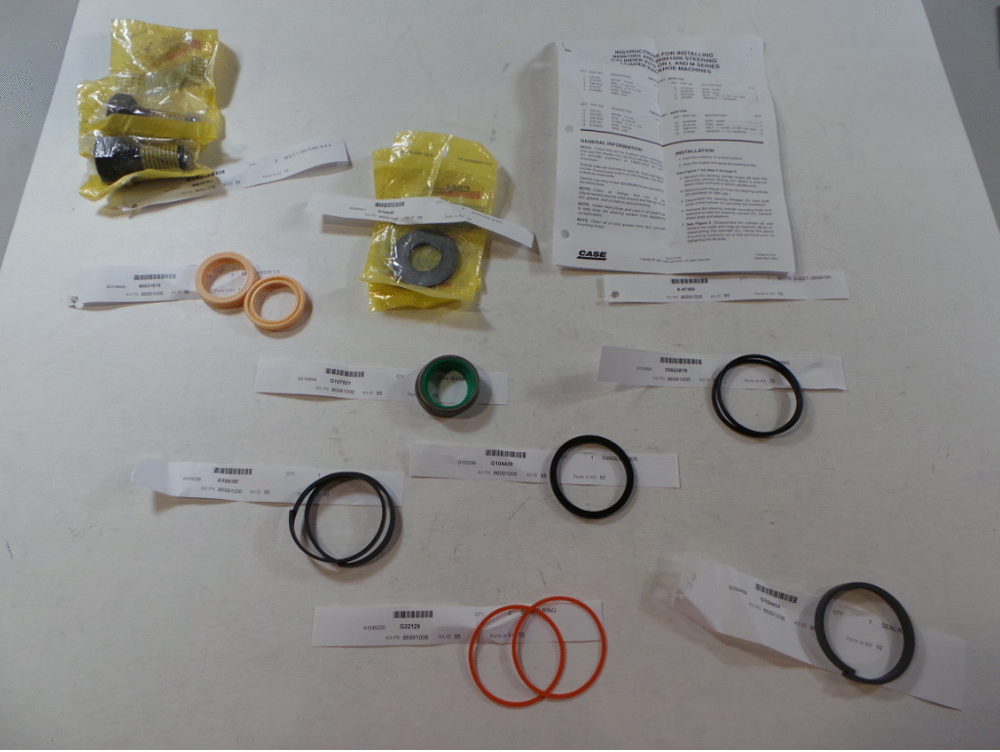

Запчасти Case 590SL (5-19) - KIT SEAL (05) - STEERING

1

86991006

SEAL KIT

Incl 2 - 11

1шт.

2

6-47260

INSTRUCTION

1шт.

3

86631610

WIPER SEAL,36.32mm ID x 50.95mm OD x 7.92mm Thk

2шт.

4

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

2шт.

5

14464880

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

2шт.

6

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

2шт.

7

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

1шт.

8

G104439

RING

1шт.

9

G105187

RING

1шт.

10

446107A1

BOLT (MACHINE),Hex, 1 1/8" - 7 x 2 3/8", Gr 5

2шт.

11

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

2шт.
