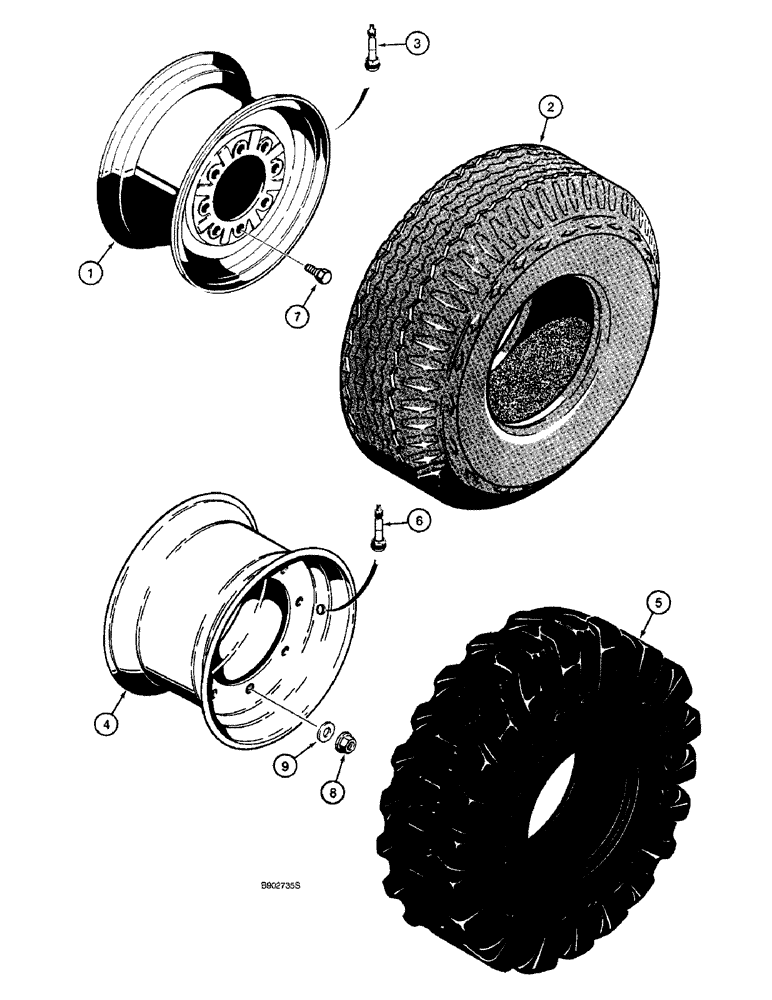

Запчасти Case 590SL (5-18) - FRONT WHEELS AND TIRES, FOR 14 X 17.5 - 16 PLY TIRES, TWO WHEEL DRIVE MODELS (05) - STEERING

1

133124A1

WHEEL

- rim, use on models with 450 pound front counterweight or models without counterweight

2шт.

2

REF

INSTRUCTION

TIRE - front, purchase locally

2шт.

3

A38261

VALVE

- stem, tire inflation

2шт.

1

247104A1

WHEEL

- rim, used on models with 900 pound front counterweight

2шт.

2

REF

INSTRUCTION

TIRE - front, purchase locally

2шт.

3

A38261

VALVE

- stem, tire inflation

2шт.

4

132952A1

WHEEL

- rim, 8-hole pattern, 4 wheel drive models

2шт.

5

REF

INSTRUCTION

TIRE - front, purchase locally, 4 wheel drive models

2шт.

6

A38261

VALVE

- stem, tire inflation, 4 wheel drive models

2шт.

7

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining, 4WD models

16шт.

8

825-11418

NUT,M18 x 1.5, Cl 8

- hex, 18 mm - 1.5, special, 4 wheel drive models

16шт.

9

496-81000

WASHER,25/32" x 1 3/8" x .134", HDN

- flat, 25/32 x 1-3/8 x 1/8 inch, hardened, 4 wheel drive models

16шт.
