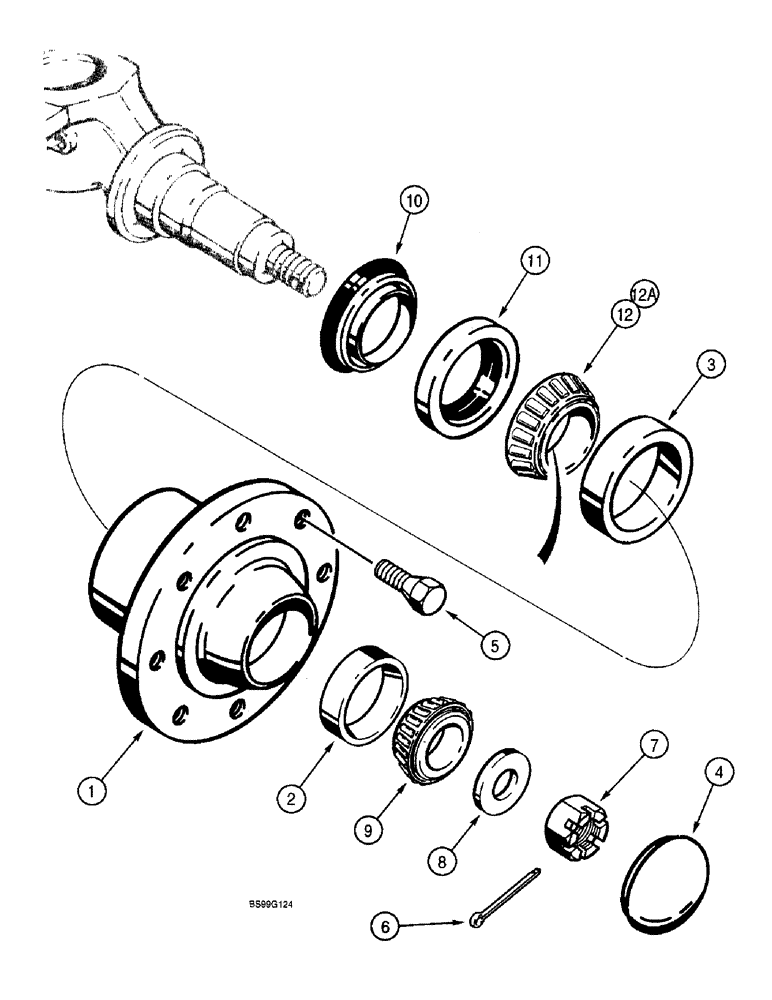

Запчасти Case 590SL (5-16) - FRONT WHEEL HUB AND BEARINGS (05) - STEERING

D75103

HUB

ASSEMBLY - front wheel, order Ref. 1 - 3, also includes Ref. 11 and 12

2шт.

1

A66759

HUB

- wheel

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

2

619387R1

BEARING CUP

CUP - tapered roller bearing, 3-1/16 inch O.D., outer, tapered roller bearing

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

Part of wheel bearing kit, P/N B93222

1шт.

3

625743C1

BEARING CUP,90mm OD x 18.5mm W

CUP - tapered roller bearing, 3035/64 inch O.D., inner, tapered roller bearing

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

Part of wheel bearing kit, P/N B93222

1шт.

4

D143405

CAP

- hub

2шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

Retaining

16шт.

6

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

2шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

7

425-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - hex, thick slotted, 1-1/8 inch NF

2шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

8

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

- flat, special, 1-1/8 inch

2шт.

9

G15215

ROLLER BEARING

CONE - tapered roller bearing, outer

2шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

Part of wheel bearing kit, P/N B93222

1шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- spindle

2шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

Part of wheel bearing kit, P/N B93222

1шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- hub

2шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

Part of wheel bearing kit, P/N B93222

1шт.

12

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - tapered roller bearing, 2-1/16 inch ID, inner, 2.1651 inch ID x .9045 width; .059 inch radius, used with D125340 and D125341 spindles on figure 5-14

2шт.

Part of wheel bearing kit, P/N B93222

1шт.

12a

296824A1

TAPERED BEARING,55mm ID x 23mm W

CONE - tapered roller bearing, 2.1653 ID x 0.9055 width; 0.137 inch radius, used with 335130A1 and 335132A1 spindles on figure 5-14

2шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

B93222

KIT

- wheel bearing, includes Ref. 2, 3, and 9 - 12, two kits required per tractor

1шт.

Ref 12 or 12A radius location is signified by the arrow indicator in the illustration.

1шт.

352484A3

KIT - two wheel drive axle

1шт.

Ref 12 or 12A radius location is signified by the arrow indicator in the illustration.

1шт.
