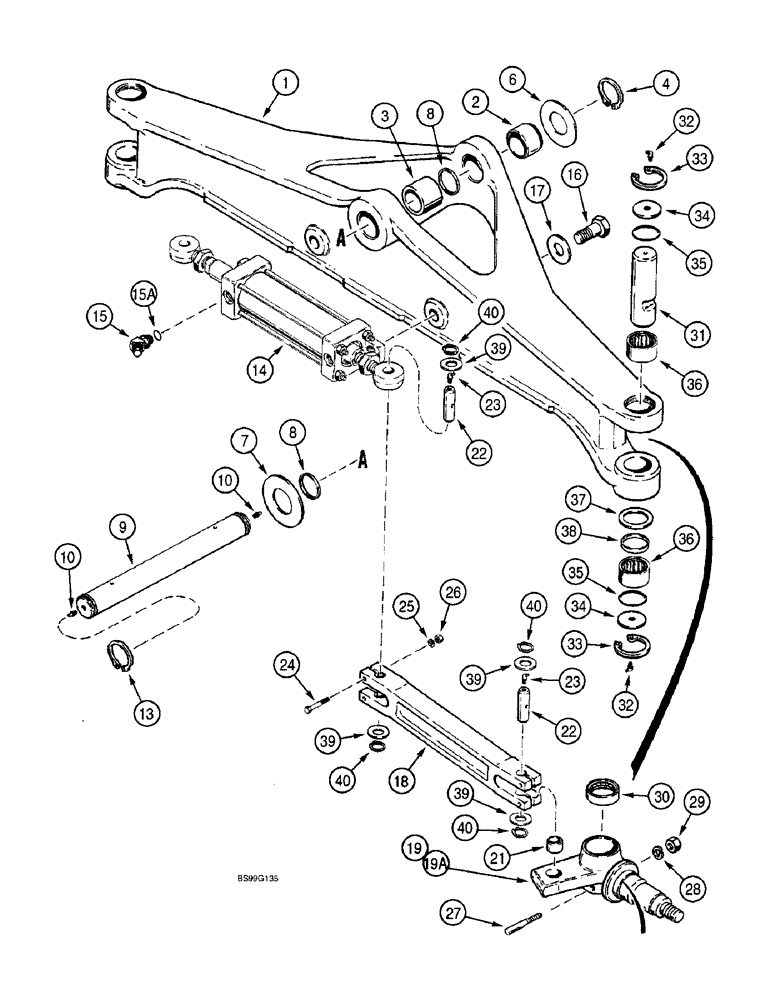

Запчасти Case 590SL (5-14) - FRONT AXLE AND SPINDLES, TWO WHEEL DRIVE MODELS (05) - STEERING

1

D148413

AXLE, FRONT

AXLE ASSEMBLY - front, with single rear bushing, Includes: Ref. 2 and 3

1шт.

2

D137345

BUSHING,50.19mm ID x 60mm OD x 36mm L

- axle, front, 36 mm (1-13/32 inch) long

1шт.

3

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

- 54 mm (2-1/8 inch) long, rear

1шт.

4

800-44050

SNAP RING,M50, Ext

RING - heavy external retaining, No. 50, axle pivot pin retaining, front

1шт.

6

191796A1

WASHER,51.6mm ID x 92mm OD x 1.98mm Thk

- flat, special

1шт.

7

D123684

WASHER,52.3mm ID x 114mm OD x 4.78mm Thk

- flat, special

1шт.

8

D123655

SEAL,50mm ID x 60.15mm OD x 4.06mm Thk

- grease

2шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

9

138616A1

AXLE PIN,50mm OD x 436.5mm L

PIN - axle pivot

1шт.

10

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

13

800-44050

SNAP RING,M50, Ext

RING - heavy external retaining, No. 50, axle pivot pin retaining, rear

1шт.

14

1986518C2

STEERING CYLINDER

CYLINDER ASSEMBLY - 70 (2-3/4) ID x 170 mm (6-45/64 inch) stroke, two wheel drive front axle, parts list figure 5-12

1шт.

15

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj. O-ring boss, Incl. Ref 15A

2шт.

15a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

13-1838

BOLT,Hex, 1-1/8" - 7 x 2-3/8", Gr 5, Full Thd

No Longer Used, For Service Order 446107A1 Bolt Hex, 1 1/8"-7 x 2 3/8", G5, Full Thd

2шт.

16

446107A1

BOLT (MACHINE),Hex, 1 1/8" - 7 x 2 3/8", Gr 5

BOLT - hex, 1-1/8 NC x 2-3/8 inch

2шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

17

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

- flat, special, hardened

2шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

18

D123806

LINK, CONNECTING

LINK - steering

2шт.

19

D125340

SPINDLE

ASSEMBLY - right-hand, .059 inch radius, used with A61447 cone on figure 5-16, if used

1шт.

19a

320977A1

SPINDLE

- right-hand, does not include bushing, order separately, .137 inch radius, used with 296824A1 cone on figure 5-16, for service order 335130A1 spindle which includes bushing, if used

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

19b

335130A1

SPINDLE

ASSEMBLY - right-hand, .137 inch radius, used with 296824A1 cone on figure 5-16, if used

1шт.

20

D125341

SPINDLE

ASSEMBLY - left-hand, not shown, .059 inch radius, used with A61447 cone on figure 5-16, if used

1шт.

20a

303428A1

SPINDLE

- left-hand, not shown, does not include bushing, order separately, .137 inch radius, used with 296824A1 cone on figure 5-16, for service order 335132A1 spindle which includes bushing, if used

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

20b

335132A1

SPINDLE

ASSEMBLY - left-hand, .137 inch radius, used with 296824A1 cone on figure 5-16, if used, Includes: Ref. 21

1шт.

21

D127507

BUSHING,22.33mm ID x 32.25mm OD x 25mm L

- spindle

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

22

D150155

PIN,22.2mm OD x 89mm L

- steering link

4шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

23

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8 PT self-tapping x 25/32 inch

4шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

24

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

8шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

25

492-11038

LOCK WASHER,3/8"

8шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

26

425-106

NUT,3/8"-16, Cl 5

8шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

27

D57486

PIN

- kingpin lock

2шт.

Part of Kingpin Kit, P/N D103626

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

28

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

29

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

30

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING - roller, steering knuckle, spindle

2шт.

Part of Kingpin Kit, P/N D103626

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

31

D123865

PIVOT PIN,50.8mm OD x 168.91mm L

KINGPIN - front axle

2шт.

Part of Kingpin Kit, P/N D103626

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

32

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8 PT self-tapping x 25/32 inch

4шт.

Part of Kingpin Kit, P/N D103626

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

33

100-21237

SNAP RING,2.375", Int, #237

Ring, Snap, , Brg 2.375", Int, #237

4шт.

Part of Kingpin Kit, P/N D103626

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

34

D72371

WASHER,3.17mm ID x 60.2mm OD x 4.57mm Thk

SPACER - kingpin

4шт.

Part of Kingpin Kit, P/N D103626

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

35

238-5139

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

Kingpin seal -139, 90 Duro, 2.175" ID x .103" Thk

4шт.

Part of Kingpin Kit, P/N D103626

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

36

A28230

NEEDLE BEARING,Needle, 50.78mm ID x 60.34mm OD x 25.4mm W

BEARING - needle, kingpin

4шт.

Part of Kingpin Kit, P/N D103626

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

37

D72372

WASHER,50.85mm ID x 69.6mm OD x 0.81mm Thk

- thrust, bearing

2шт.

Part of Kingpin Kit, P/N D103626

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

38

D61297

SEAL,50.8mm ID x 60.22mm OD x 6.4mm Thk

- oil

2шт.

Part of Kingpin Kit, P/N D103626

1шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

39

495-11094

WASHER,7/8", SAE

- flat, 15/16 x 1-3/4 x 1/8 inch

8шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

40

103-1687

SNAP RING,#87, Ext

Ring, Snap, , Pin #87, Ext

8шт.

Part of two wheel drive axle kit, P/N 352484A3

1шт.

D103626

PACKAGE

KIT - kingpin, includes Ref. 27, and 30 - 38

1шт.

352484A3

KIT - two wheel drive axle, includes Ref. 8, 16, 17, 19A, 20A, and 21 - 40

1шт.
