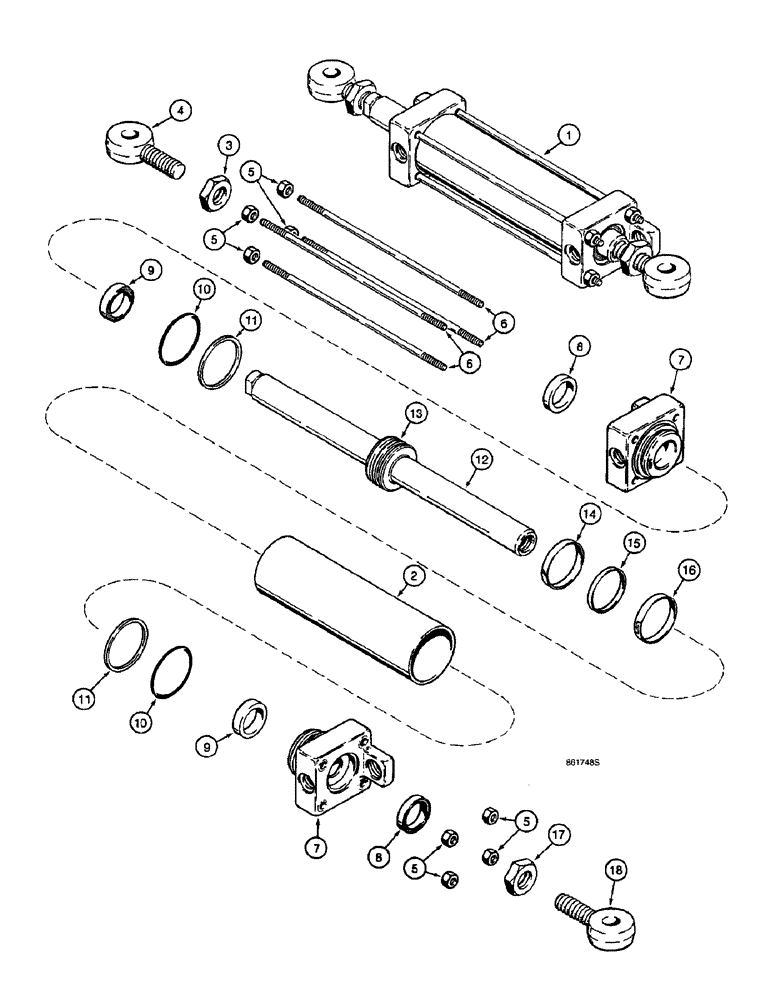

Запчасти Case 590SL (5-12) - STEERING CYLINDER, TWO WHEEL DRIVE FRONT AXLE (05) - STEERING

1

1986518C2

STEERING CYLINDER

CYLINDER ASSEMBLY - 70 (2-3/4) ID x 170 mm (6-45/64 inch) stroke, (170 mm) stroke, see footnote, steering, two wheel drive front axle, Includes: Ref. 2 - 17

1шт.

The cylinder assembly part number is stamped on some cylinder glands and tubes.

1шт.

2

G106808

TUBE,69.85 mm ID x 79.76 mm OD x 233.60 mm L

- cylinder

1шт.

3

129-369

JAM NUT,Jam, 7/8"-14, G5

LH thread Jam, 7/8"-14, G5

1шт.

4

1542550C1

BALL JOINT

EYE - rod, left-hand thread

1шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

6

G106817

TIE-ROD

ROD - tie, 338 mm (13-5/16 inch) long, cylinder

4шт.

7

1986520C1

CYLINDER END CAP

GLAND - cylinder

2шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

WIPER - piston rod, outer

1шт.

Part of seal kit G110045

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

1шт.

Part of seal kit G110045

1шт.

10

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

Part of seal kit G110045

1шт.

11

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

- backup, gland O-ring

1шт.

Part of seal kit G110045

1шт.

G107721

ROD ASSY.

ROD ASSEMBLY - piston, 38 mm (1-1/2 inch) diameter, Includes: Ref. 12 and 13

1шт.

12

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

13

NSS

NOT SOLD SEPARAT

PISTON - cylinder

1шт.

14

G105187

RING

- wear, piston

1шт.

Part of seal kit G110045

1шт.

15

G104439

RING

- seal, inner

1шт.

Part of seal kit G110045

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

- piston, expandable, outer

1шт.

Part of seal kit G110045

1шт.

17

425-1514

JAM NUT,Jam, 7/8"-14, G5

- hex, jam, 7/8 inch NF

1шт.

18

1542549C1

BALL JOINT

EYE - rod, right-hand thread

1шт.

G110045

KIT

- seal, includes Refs. 8, 9, 10, 11, 14, 15, and 16

1шт.
