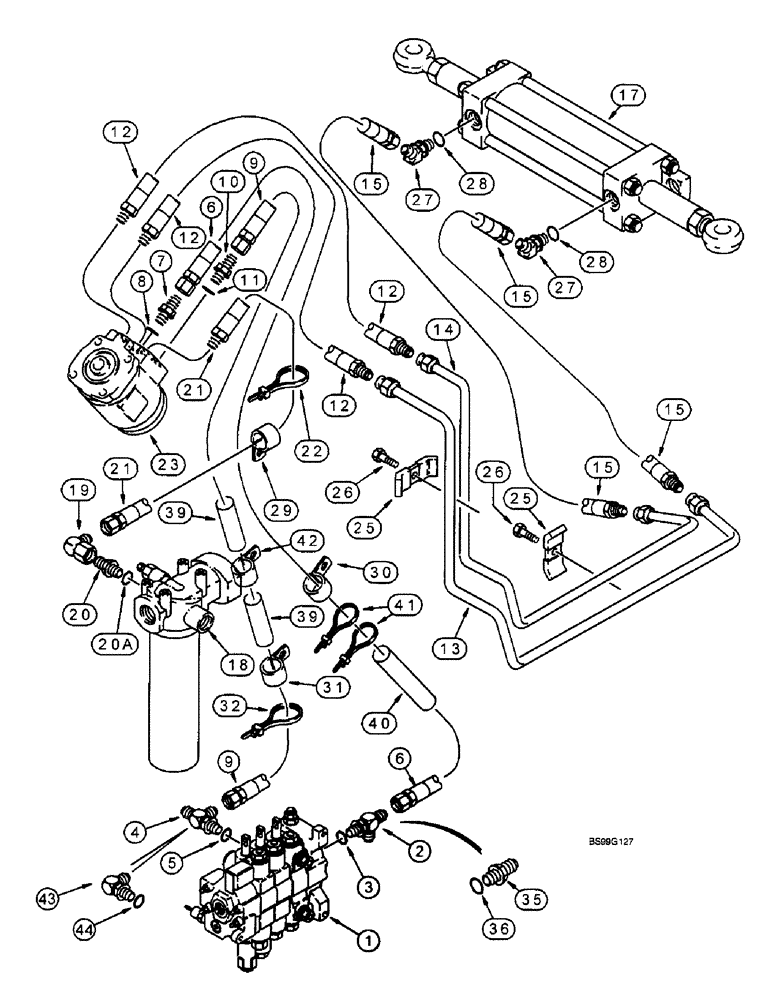

Запчасти Case 590SL (5-04) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - loader control, for correct assembly and components, see figure 8-72 - 8-75A

1шт.

2

282428A1

VALVE PRESSURE RELIE

VALVE, PRESSURE RELIEF, Steering check, models with hand held auxiliary hydraulics, Includes: Ref. 3

1шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4

218-5576

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 3/4"-16

- 3/4-16 fl branch x 1-1/16-12 fl x 7/8-14 inch adj O-ring, lower inlet port, for 45 degree elbow used with this tee on models with ride control, see figure 8-60, Includes: Ref. 5

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5241 or 218-5576 tee

1шт.

6

144221A1

HOSE

- 1275 mm (50-3/16 inch) long, steering pilot, steering control valve small center port to loader control valve

1шт.

7

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 flare x O-ring boss, Incl. Ref. 8

1шт.

8

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

9

224423A1

HYDRAULIC HOSE,9.65 mm ID x 1300.00 mm

- Steering pressure, Loader control valve to steering control valve RH port 9.65 mm ID x 1300.00 mm

1шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR, HYD., , Adapter, Straight, O-ring boss, Incl. Ref 11 3/4"-16, 37º x 3/4"-16, O-Ring

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

132929A1

HOSE

- 730 mm (28-3/4 inch) long, steering control valve upper and lower left-hand, Serial Range: ports-tubes

2шт.

13

120386A1

TUBE

- lower, to steering cylinder right-hand port hose

1шт.

14

120388A1

TUBE

- upper, to steering cylinder left-hand port hose

1шт.

15

144219A1

HOSE,9.53mm ID x 485mm L

- 485 mm (19-3/32 inch) long, to right-hand and left-hand port of steering cylinder

2шт.

17

1986518C2

STEERING CYLINDER

CYLINDER ASSEMBLY - 70 (2-3/4) ID x 170 mm (6-45/64 inch) stroke, steering, parts list figure 5-12

1шт.

18

181001A1

FILTER ASSY

FILTER ASSEMBLY - hydraulic oil, parts list figure 8-124

1шт.

19

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

1шт.

20

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 20A

1шт.

20a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

21

176328A1

HOSE

- 1730 mm (68-1/8 inch) long, steering return, steering control valve upper right-hand port to hydraulic oil filter

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, retaining, use (1) to tie return hose, Ref. 21, to corner of crossover tube, Ref. 2, shown on figure 7-8, use (1) to tie pilot hose, Ref. 6, and pressure hose, Ref. 9, together

5шт.

23

139599A1

PUMP, HYDRAULIC

VALVE ASSEMBLY - steering control, parts list figure 5-10

1шт.

23

139599A2

PUMP, HYDRAULIC

VALVE ASSEMBLY - steering control, parts list figure 5-10

1шт.

23

139599A3

PUMP

VALVE ASSEMBLY - steering control, parts list figure 5-10

1шт.

25

D40236

CLAMP

- tube

2шт.

26

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

Full Thd Hex, M10 x 30, 8.8

2шт.

27

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss, see Figure 6-2 for fittings used on four-wheel drive front axle, Incl. Ref 28

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

29

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

30

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

P-type, Replaces 49854 clamp, If used 1/2", Insul, 5/16" Bolt

1шт.

31

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-Type, If used 5/8", Insul, 3/8" Bolt

1шт.

32

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, if used

1шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, may be used on models without auxiliary hydraulics, if used, Incl. Ref. 36

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

39

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE - hose guard

2шт.

40

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

SLEEVE - hose guard, 460 mm (18-1/8 inch) long

1шт.

41

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

42

49773

CLAMP

- P-type

1шт.

43

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss, may be used on models without auxiliary hydraulics, if used, Includes: Ref. 44

1шт.

44

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
