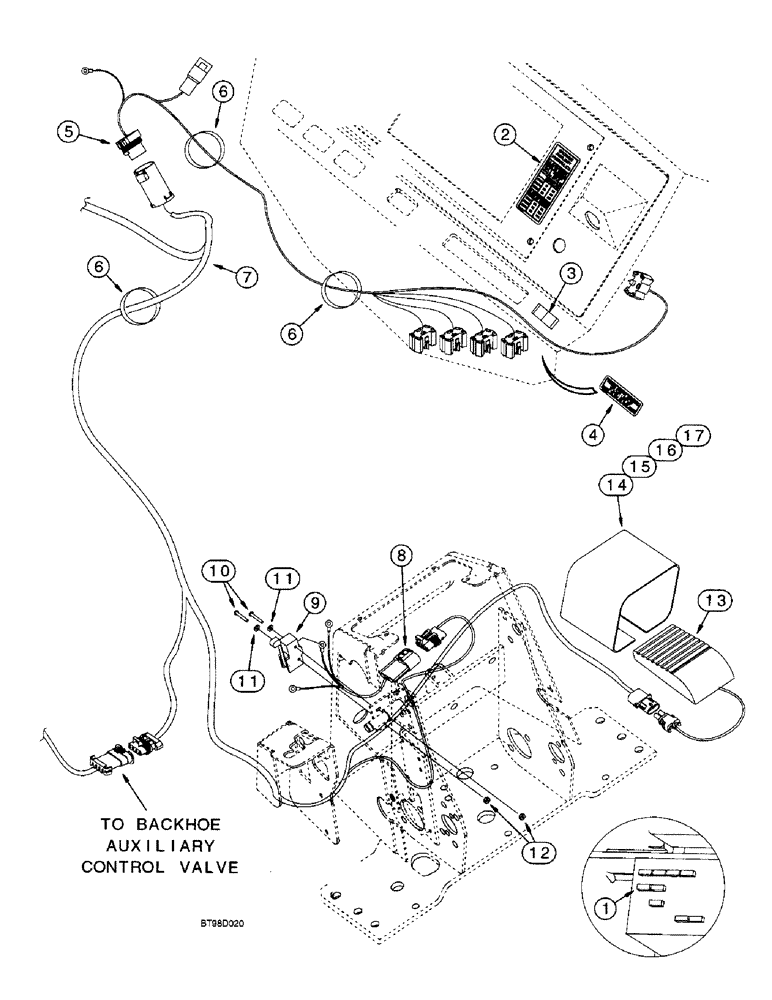

Запчасти Case 590SL (4-46) - BACKHOE AUXILIARY HYDRAULIC ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

121413A1

FUSE,15A, Mini, Blue

1шт.

2

284480A1

DECAL

- backhoe auxiliary hydraulics, hi flow/low flow

1шт.

3

284058A1

SWITCH

- rocker, backhoe auxiliary hydraulics, was mounted below key switch, now mounts behind throttle slot

1шт.

4

284627A1

DECAL

- backhoe auxiliary hydraulics, low flow - light on/hi flow - light off

1шт.

5

296508A2

HARNESS

- side console options, attaches to side console harness and chassis options harness

1шт.

6

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

7

302803A2

HARNESS

- chassis options, replaces 302803A1 harness

1шт.

8

298681A1

HARNESS

- pigtail, detent lever

1шт.

9

D137363

SWITCH

- contact, limit

1шт.

10

440-10616

SCREW,Cross Pan Hd, #6-32 x 1"

2шт.

11

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

2шт.

12

193-1003

NUT,Keps, w/LW,#6-32

- hex, with external tooth lock washer, No. 6 NC

2шт.

13

137219A1

SWITCH

- foot, backhoe auxiliary hydraulics

1шт.

14

300030A1

COVER

GUARD - foot switch

1шт.

15

843-1516

SCREW,Flat , M5 x 16mm, Cl 4.8

- machine, flat Phillips, 5 - 0.8 x 16 mm

2шт.

16

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

17

824-1405

NUT,M5, Cl 5

2шт.
