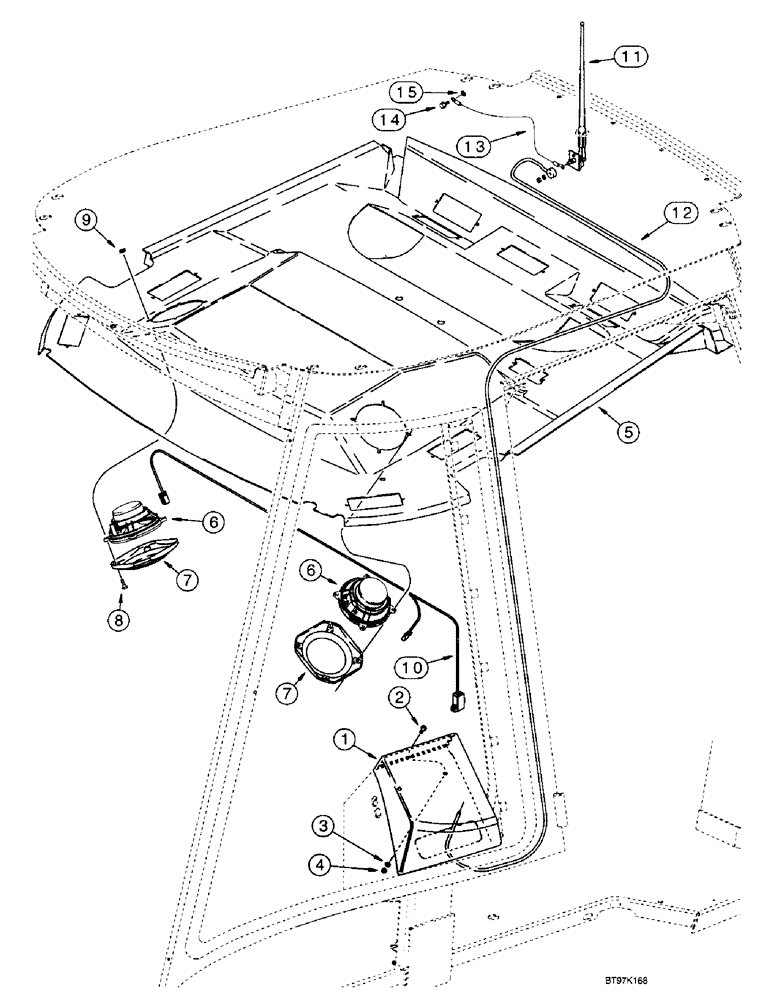

Запчасти Case 590SL (4-44) - RADIO MOUNTING BOX, ANTENNA AND SPEAKERS (04) - ELECTRICAL SYSTEMS

292654A1

RADIO

Package, radio ready, order from Machinery Price List, also includes right hand side instrument panel, see figure 4-24, no longer available, order components, Includes: Ref. 1 - 15

1шт.

Does not include radio. Parts Buyers Guide 98-9 advises that ZAE1000, ZAE2000, ZAE3000 or ZAE50 radios may be used with the above package and also advises that ZAE1121875 adapter kit is needed to mount these radios on units. If unit is not equipped with the above radio-ready package, then order ZAE900LKT radio kit.

1шт.

1

221418A1

BOX

BOX - radio mounting

1шт.

2

161-115

HEX SOC SCREW,Btn Hd, 1/4" - 20 x 3/4"

SCREW - hex socket button head, 1/4 NC x 3/4 inch

2шт.

3

495-11028

WASHER,1/4", SAE

WASHER, (flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

4

231-1444

NUT,1/4"-20, GB

2шт.

300701A1

ROOF LINING

HEADLINER ASSEMBLY - cab, models with radio-ready package, see figure 9-130 for headliner components, Includes: Ref. 5 - 9

1шт.

5

300157A1

ROOF LINING

HEADLINER ASSEMBLY - cab, models with radio-ready package

1шт.

6

182721A2

SPEAKER

SPEAKER - radio, 5-1/4 inch, round

2шт.

7

187281A1

COVER

GRILLE - speaker cover

2шт.

8

761-17325

SELF-TAP SCREW,Pan Hd, M4.2 x 25

8шт.

9

177269A1

SPRING NUT,M4.2

U-type

8шт.

10

298228A1

HARNESS

HARNESS - speaker

1шт.

11

197745A1

ANTENNA

ANTENNA - radio, includes flat washer and nut which are not serviced separately

1шт.

12

284549A1

CABLE

CABLE - antenna

1шт.

13

291010A1

ELECTRICAL WIRE

WIRE WIRE - antenna ground, ground eyelet must be mounted on cab side of antenna cable or am radio will not operate

1шт.

14

760-14413

SELF-TAP SCREW,Pan Hd, M4.8 x 13

No longer used, Order 282-17512

1шт.

14

282-17512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

SCREW - self-drilling tapping, hex washer head, No. 10 - 16 x 3/4 inch

1шт.

15

893-11005

LOCK WASHER,Ext Tooth, M5

1шт.
