Запчасти Case 590SL (4-42) - ROTATING BEACON, USED ON CAB OR CANOPY MODELS (04) - ELECTRICAL SYSTEMS

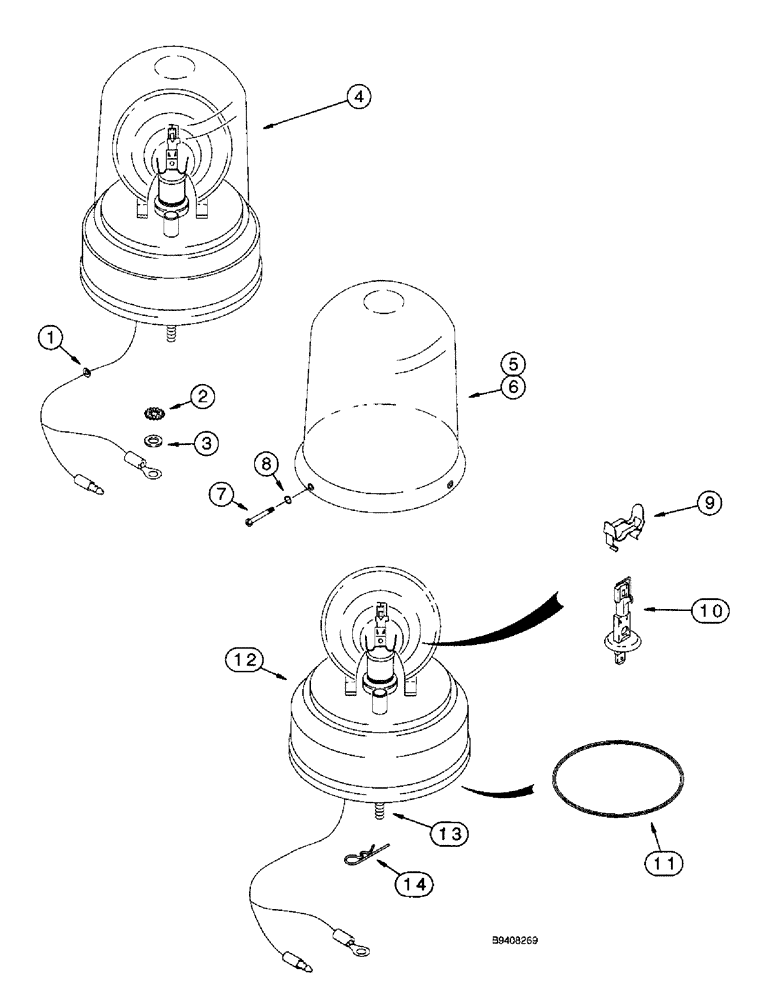

Схема запчастей Case 590SL - (4-42) - ROTATING BEACON, USED ON CAB OR CANOPY MODELS (04) - ELECTRICAL SYSTEMS
2
5
4
8
6
13
7
11
1
10
14
9
12
3

Артикул

Название

Примечание

Количество

1

A23870

GROMMET

- wire

1шт.

2

493-11026

LOCK WASHER,Ext-Int Tooth, 1/4"

ground Ext-Int Tooth, 1/4"

1шт.

3

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch, ground

1шт.

4

108366A1

BEACON

Assy, Rotating, Attaches to cab or canopy harness, Includes: Ref. 5-14

1шт.

5

A187542

LENS

- beacon, amber, if used

1шт.

6

127158A1

LENS

- beacon, blue, if used

1шт.

7

168-71

DRIVE SCREW,Type U, Rnd Hd, #8 x 1/2"

- drive, round head, No. 8 x 1/2 inch, Lens mounting

3шт.

8

238-5005

O-RING,0.094" ID x 0.062" Width

-005, 70 Duro, .101" ID x .070" Thk, Lens mounting screw

3шт.

9

101531A1

CLIP

- bulb

1шт.

10

3125705R1

BULB

LAMP - beacon, 12 volt, 55 watt

1шт.

11

A187575

O-RING

Drive Motor, Rotating Beacon

1шт.

12

NSS

NOT SOLD SEPARAT

BASE - with drive motor

1шт.

13

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 20 mm

3шт.

14

136-54

PIN

- cotter, hair, 1/4 x 11/16 inch, bolt retaining

3шт.

15

133714A1

BEACON SWITCH

- rocker, rotating beacon, not shown

1шт.

Выбрано товаров: 15
