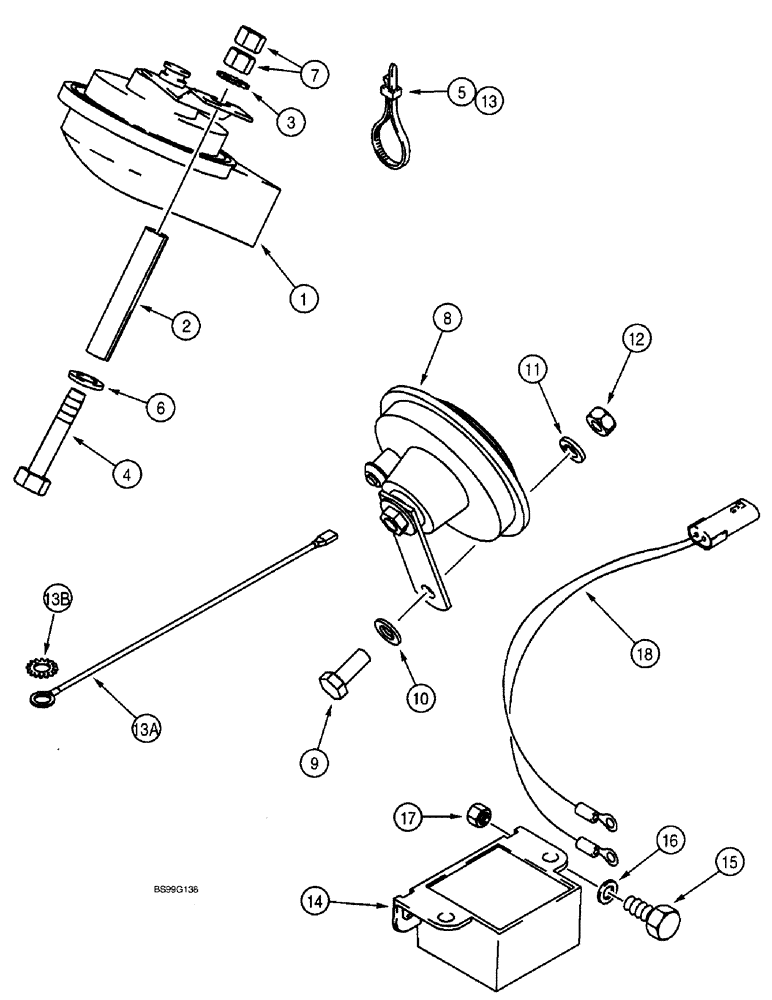

Запчасти Case 590SL (4-40) - HORN AND BACKUP ALARM, HORN, BACKUP ALARM (04) - ELECTRICAL SYSTEMS

1

190155A1

BUZZER

HORN - 12 volt, includes mounting bracket, Sparton, no longer available, order 3057542R91

1шт.

2

116423A1

SPACER

- split

1шт.

3

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

4

814-8110

BOLT,Hex, M8 x 1.25 x 110mm, Cl 8.8

- hex, 8 - 1.25 x 110 mm

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm, If used

1шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

If used M8, Cl 10

2шт.

347902A1

BUZZER

KIT - horn, used when replacing 190155A1 Sparton horn with 3057542R91 Bosch horn, Includes: Ref. 8 - 13B

1шт.

8

3057542R91

HORN

- warning sound, 12 volt, Bosch

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

11

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

12

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

2шт.

13a

347933A1

HARNESS

WIRE - horn, if used

1шт.

13b

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, , If Used Ext Tooth, M8

1шт.

14

109511A1

ALARM

- backup, attaches to main engine harness, see figure 4-10 for engine harness options

1шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

17

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

2шт.

18

D139175

HARNESS

WIRE - pigtail, attaches main engine, Serial Range: harness-alarm

1шт.
