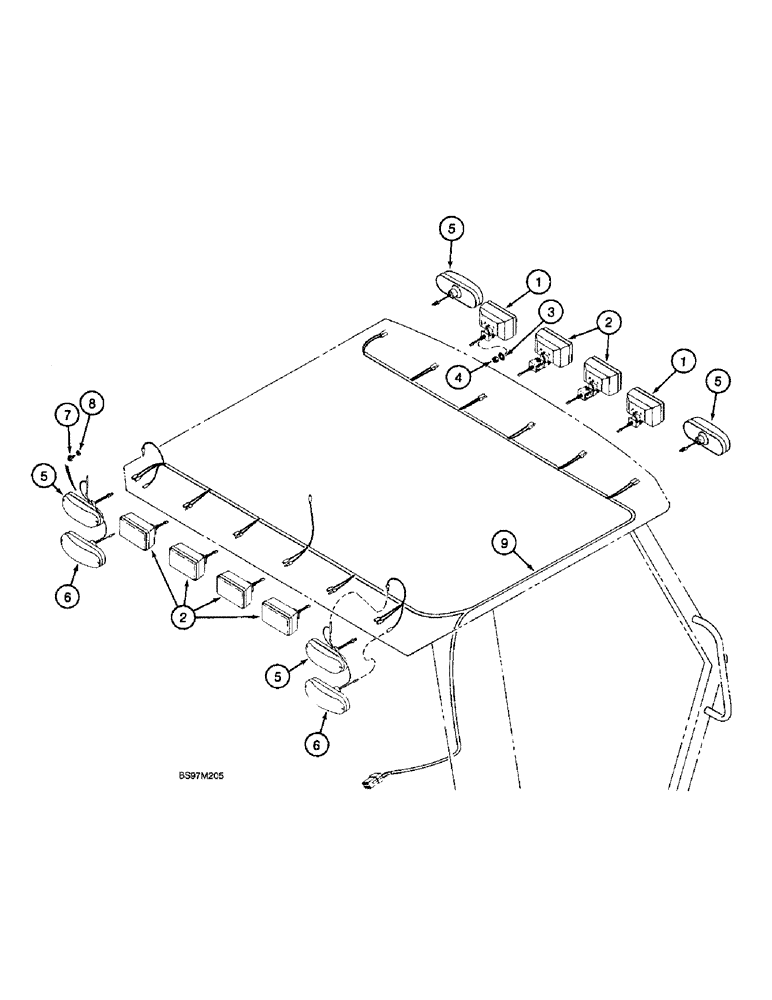

Запчасти Case 590SL (4-28) - TRACTOR LAMP ELECTRICAL CIRCUIT, WITH ROPS CANOPY (04) - ELECTRICAL SYSTEMS

1

D132681

LAMP,Halogen, 12V, 50W, Clear

ASSEMBLY - front driving, outer, parts list figure 4-32, no longer available, order ZAA7376350 lamp package

2шт.

2

D132682

HEADLIGHT,Halogen, 12V, 50W, Clear

LAMP ASSEMBLY - flood and work, rear flood (outer) and center front and rear work lamps, parts list figure 4-32, no longer available, order ZAA7376150 lamp package and ZAA8066600 mounting kit

6шт.

3

493-11052

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER - internal-external tooth lock, 1/2 inch

8шт.

4

425-148

JAM NUT,Jam, 1/2"-13, G5

8шт.

5

D135384

LAMP,12V

ASSEMBLY - turn signal and flasher, amber, front and rear, parts list figure 4-36

4шт.

6

D121152

LAMP,12V

ASSEMBLY - stop and tail, red, rear, parts list figure 4-36

2шт.

7

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

- special, hex washer head, No. 10 NC x 3/8 inch, Replaces 281-4556

12шт.

8

495-31022

WASHER,#10

12шт.

9

283001A1

HARNESS

- ROPS canopy, lamps, attaches to side console instrument harness, see figure 9-144 for harness cover and clamps that mount to the right-hand ROPS post

1шт.
