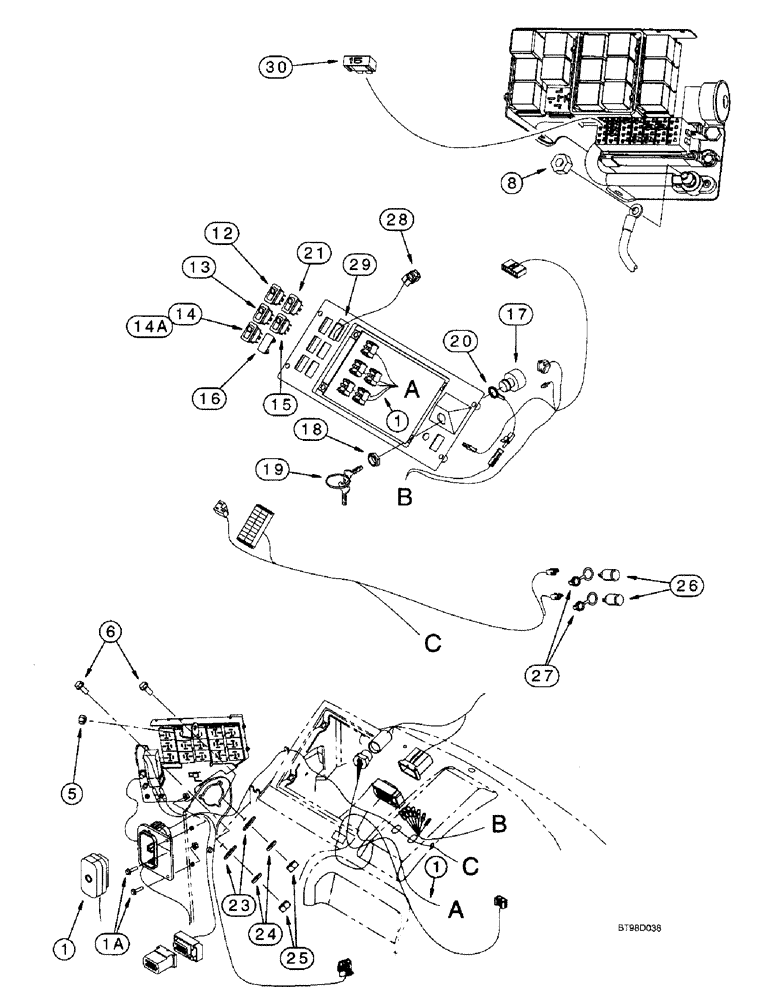

Запчасти Case 590SL (4-20) - SIDE CONSOLE INSTRUMENT HARNESS AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

282013A3

HARNESS

- side instrument console

1шт.

1a

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 25 mm

2шт.

5

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, , Attaches Fuse and Relay Mounting Bracket to Parking Brake Lever Mounting Bolt M8 x 1.25, Cl 8

1шт.

6

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

2шт.

8

425-106

NUT,3/8"-16, Cl 5

Attaches power wire from starter, Ref. 23 on Figure 4-10, to power junction block 3/8"-16, G5

1шт.

12

133711A1

LIGHT SWITCH

- rocker, driving lamps

1шт.

13

133713A1

LIGHT SWITCH

- rocker, front work lamps

1шт.

14

133716A1

ROCKER SWITCH

- rocker, four-wheel drive, models without powershift transmission, if used, see figure 4-24 for plug used in place of switch

1шт.

14a

239408A1

SWITCH

- rocker, four-wheel drive, models with powershift transmission, if used, see figure 4-24 for plug used in place of switch

1шт.

15

133715A1

LIGHT SWITCH

SWITCH, LIGHTS, Rocker, Rear flood lamps

1шт.

16

86000535

PLUG,1.427" x .62", Plastic

Accessory, If used 1.427" x .62", Plastic

1шт.

282775A1

IGNITION SWITCH

SWITCH ASSEMBLY - ignition, includes keys, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

SWITCH - key, without keys

1шт.

18

NSS

NOT SOLD SEPARAT

NUT - hex, special, key switch mounting

1шт.

19

1964831C2

IGNITION KEY

KEY - set of two, padded

1шт.

20

D137820

HARNESS

WIRE - ignition, Serial Range: switch-ground

1шт.

21

191532A1

SWITCH

- rocker, hand held auxiliary hydraulics, if used, see figure 4-24 for plug used in place of switch

1шт.

23

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

24

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

25

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

26

283779A1

POWER SOCKET,12V

SOCKET, POWER

2шт.

27

283781A1

CAP,Polyester Elastomer

- power plug outlet

2шт.

28

296508A2

HARNESS

- side console options, hand held

1шт.

29

192299A1

DECAL

- auxiliary hydraulics

1шт.

30

121413A1

FUSE,15A, Mini, Blue

Auxiliary hydraulics 15 Amp, Mini

1шт.
