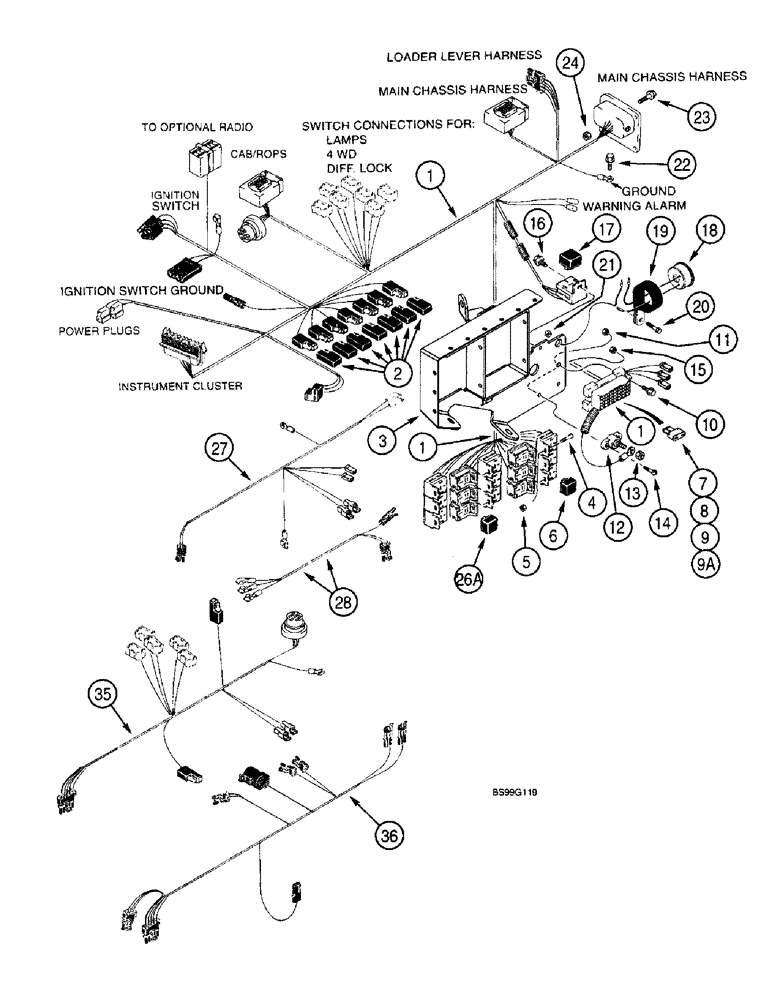

Запчасти Case 590SL (4-18) - SIDE CONSOLE INSTRUMENT HARNESS, OPTIONAL EQUIPMENT (04) - ELECTRICAL SYSTEMS

1

282013A3

HARNESS

- side instrument console, used with Ref. 26A relay

1шт.

2

L71879

DIODE ELEMENT,400V, 3A

DIODE - harness, isolation

7шт.

3

304898A1

BRACKET

- fuse and relay mounting

1шт.

4

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch

6шт.

5

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

6шт.

6

D128310

RELAY

- 30 ampere, mini, 12 volt

13шт.

7

121412A1

FUSE,10A, Mini, Red

Red 10 Amp, Mini

5-6шт.

8

121414A1

FUSE,20A, Mini, Yellow

- mini, 20 ampere, Yellow

1шт.

9

121413A1

FUSE,15A, Mini, Blue

Blue 15 Amp, Mini

2шт.

9a

121416A1

FUSE,30A, Mini, Green

- mini, 30 ampere, Green

1-2шт.

10

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 25 mm

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

1шт.

12

184277A1

CONNECTION

BLOCK - junction, power

1шт.

13

425-106

NUT,3/8"-16, Cl 5

1шт.

14

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

- machine, pan Phillips, No. 10 NF x 1/2 inch

2шт.

15

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

2шт.

16

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

- special, hex washer head, No. 10 NC x 3/8 inch, Replaces 281-4556

1шт.

17

D147166

FLASHER UNIT

SWITCH - hazard and turn signal

1шт.

18

D137468

BUZZER

ALARM - warning, for engine water temperature, engine oil pressure and parking brake

1шт.

19

D120561

CLAMP

- P-type, warning alarm, Serial Range: mounting-bracket

1шт.

20

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

22

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

- heavy hex flange, 10 - 1.5 x 20 mm

1шт.

23

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 25 mm

2шт.

24

832-10406

NUT,M6 x 1, Cl 8

LOCK, M6 x 1, Cl 8

2шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

26a

347706A1

RELAY

- sealed time delay, forward reverse control, Replaces 278665A1

1шт.

133041A1

KIT

- harness, field, to install air conditioning on units not presently equipped with air conditioning, order Ref. 27 and 28

1шт.

27

130876A1

HARNESS

- adapter, cab, attaches to side console instrument harness for air conditioning connections

1шт.

28

186607A1

HARNESS

- adapter, engine, attaches to side console instrument harness for air conditioning connections

1шт.

35

296508A2

HARNESS

- side console options

1шт.

Optional equipment consists of ride control, hand held auxiliary hydraulics, auxiliary backhoe hydraulics and hydraulic quick coupler, Also see figure 4-20 for additional side console instrument harness and connections.

1шт.

36

302803A2

HARNESS

- chassis options, Replaces 302803A1

1шт.

Optional equipment consists of ride control, hand held auxiliary hydraulics, auxiliary backhoe hydraulics and hydraulic quick coupler, Also see figure 4-20 for additional side console instrument harness and connections.

1шт.

21

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
