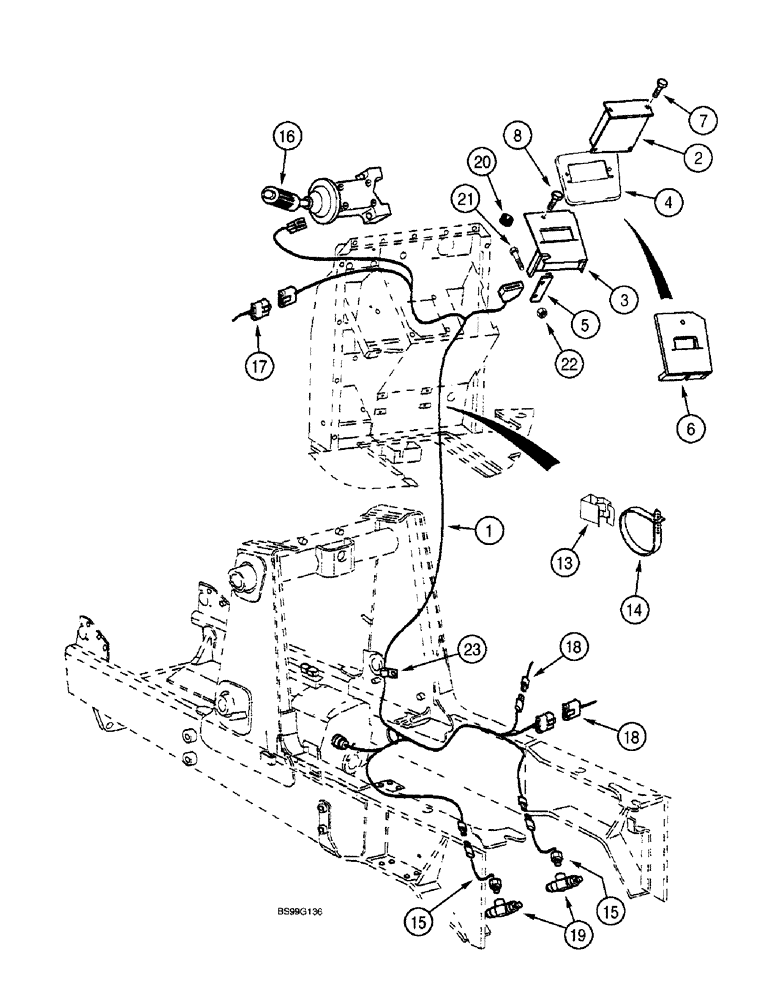

Запчасти Case 590SL (4-17A) - POWERSHIFT TRANSMISSION ELECTRICAL CIRCUIT (04) - ELECTRICAL SYSTEMS

1

282010A3

HARNESS

- powershift transmission, replaces 282010A2

1шт.

2

336551A1

CASE

CONTROLLER - transmission, APC70, replaces 226178A2 and 226178A3 APC50 controller and 226178A4 APC70 controller

1шт.

3

284396A1

SUPPORT

BRACKET - mounting, transmission controller

1шт.

4

277643A1

LARGE PLATE

PLATE - controller

1шт.

5

233407A1

GUIDE

PLATE - mounting

2шт.

6

325162A1

SEAL

- powershift

1шт.

7

261-67540

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW - self-tapping, pan Phillips, No. 10 NC x 2-1/2 inch, replaces 261-67536 2-1/4 inch long screw used on some models

2шт.

8

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW - self-tapping, special, No. 10-16 x 3/4 inch

3шт.

13

302502A1

CLIP

- retaining, tie strap

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

15

D138955

SWITCH

- pressure, stop lamp

2шт.

16

231520A2

SWITCH

LEVER - shuttle shift, transmission, forward/neutral/reverse, also see figure 4-16

1шт.

17

282014A2

HARNESS

- front console, see figure 4-16

1шт.

18

REF

INSTRUCTION

HARNESS - engine, see figure 4-10

1шт.

19

222889A1

FITTING

TEE - at rear axle brakes, see figure 7-8

2шт.

20

303738A1

GROMMET

- split

1шт.

21

463-11012

SCREW,Hex Hd, #10-24 x 3/4"

- machine, hex head, No. 10 NC x 3/4 inch

4шт.

22

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

4шт.

23

D147383

CLIP,5/8" J

CLAMP - J-type, harness

1шт.
