Запчасти Case 590SL (4-08) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS

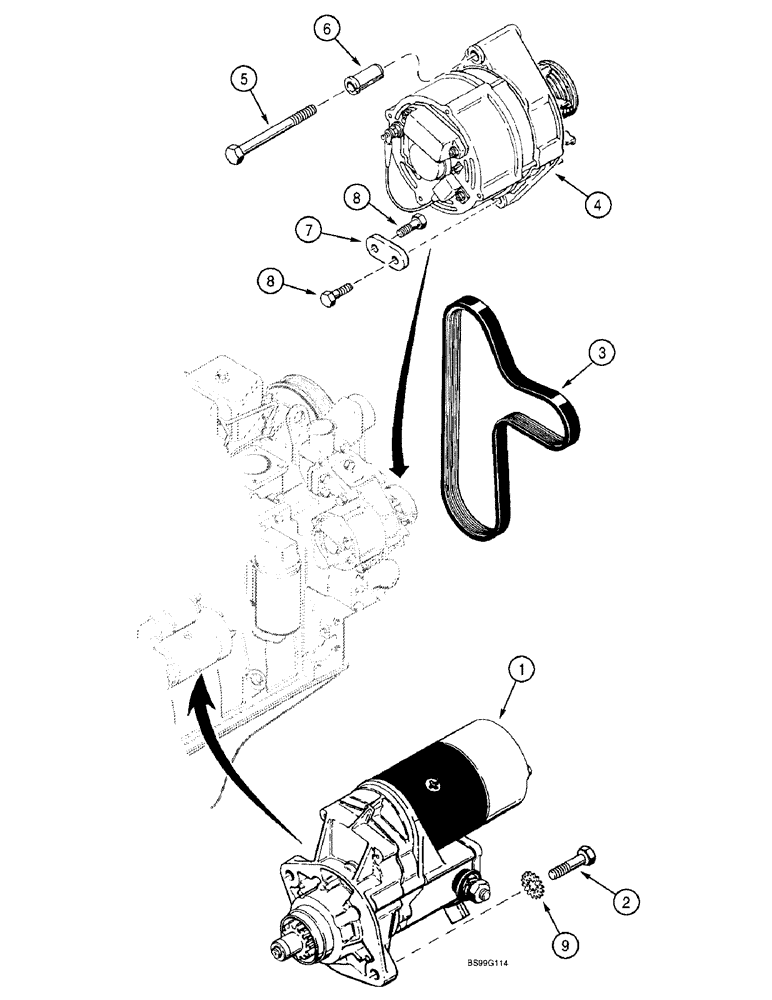

Схема запчастей Case 590SL - (4-08) - STARTER AND ALTERNATOR MOUNTING (04) - ELECTRICAL SYSTEMS
8
2
6
8
9
3
4
5
1
7

Артикул

Название

Примечание

Количество

1

1987559C1

STARTING MOTOR

STARTER ASSEMBLY - engine, new, parts list figures 4-2 and 4-4

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, STARTER, 12 volt 2.5KW

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Number, STARTER 12 volt, 2.5KW

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

Bolt, Hex, M10 x 40, 8.8, Full Thd

2шт.

3

J925953

BELT,27.92 mm W x 1490.00 mm L, 8 Ribs

Fan, Alternator and fan

1шт.

4

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - engine, 65 ampere, parts list figure 4-6

1шт.

4

AR187873

REMAN-ALTERNATOR

Reman for New PN A187873

1шт.

4

AC187873

CORE-ALTERNATOR

Return Number

1шт.

4

A187873GV

ALTERNATOR

Value, 65A

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 100 mm

1шт.

6

J902469

SPACER

SPACER - alternator mounting

1шт.

7

J903089

SUPPORT

BRACE - alternator mounting

1шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

BOLT - hex, full threads, 8 - 1.25 x 20 mm

2шт.

9

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

WASHER - internal-external tooth lock, 3/8 inch, ground strap

2шт.

Выбрано товаров: 16
