Запчасти Case 590SL (3-02) - FUEL RESERVOIR AND FUEL LEVEL SENSOR (03) - FUEL SYSTEM

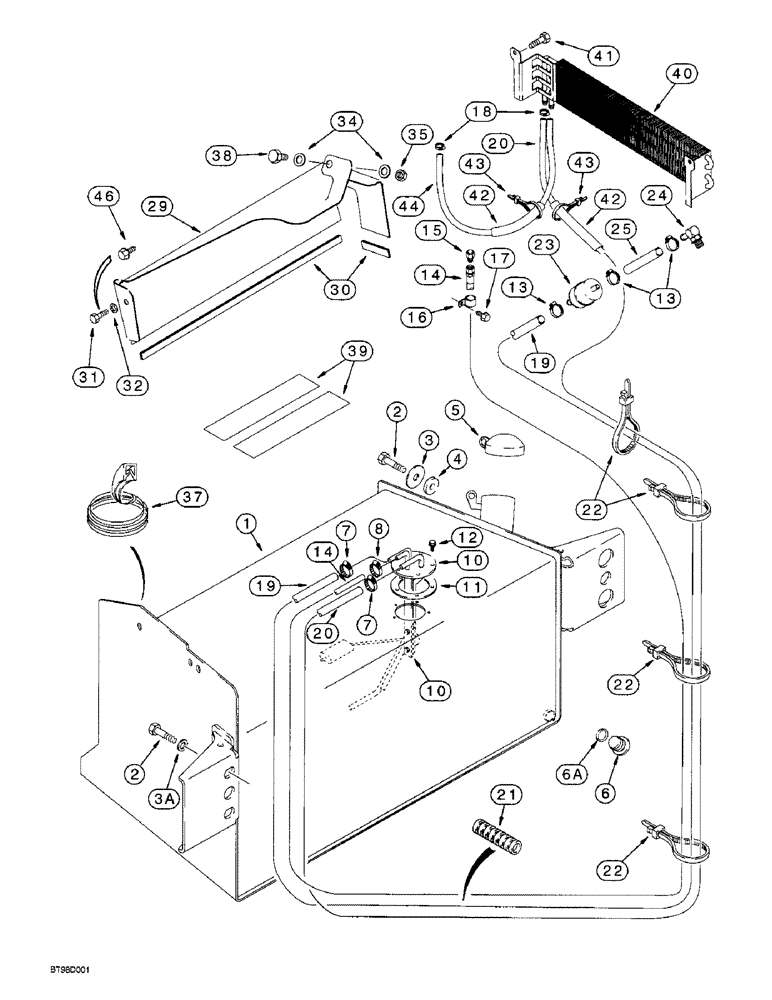

Схема запчастей Case 590SL - (3-02) - FUEL RESERVOIR AND FUEL LEVEL SENSOR (03) - FUEL SYSTEM
32
19
41
21
24
42
14
11
2
5
34
25
35
43
18
14
43
39
30
13
44
7
37
31
20
12
22
7
6a
2
3
10
16
40
17
8
29
20
4
38
13
46
1
22
42
3a
6
22
15
19
10
23

Артикул

Название

Примечание

Количество

1

296280A4

FUEL TANK

TANK, fuel reservoir, 42 gallon, includes left-hand steps, mounts to left hand side of chassis, also includes Ref. 6 plug, Replaces 296280A3

1шт.

2

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

- hex, full threads, 20 - 2.5 x 40 mm, class 10.9

4шт.

3

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

- flat, hardened, special

2шт.

3a

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

2шт.

4

185926A1

SPACER,21mm x 40mm x 6.6mm Th

- bushing, left-hand side of tank

2шт.

5

130049A1

FILLER CAP

CAP - fuel tank, non-vented

1шт.

6

86625138

PLUG,7/18" - 14

Drain, Included with Ref. 1 or 1A Fuel Tank, Includes Ref. 6A Hex Soc, 7/8"-14 ORB

2шт.

6a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

CLAMP - adj., 1/2 - 29/32 inch dia

2шт.

8

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

CLAMP, HOSE, , Center Hose #4, 0.25/0.62 Type M Worm

2шт.

10

298463A1

SENDER UNIT

SENSOR - fuel level, includes grounding nut, lock washer and flat washer

2шт.

11

188311A2

GASKET,2.38mm Thk

- fuel sensor

1шт.

12

D75465

SCREW,#10 - 32 x 5/8"

- self tapping, hex washer head, special, No. 10 NF x 5/8 inch

5шт.

13

196252A1

CLAMP

- hose

3шт.

14

234892A1

HOSE

HOSE - 1100 mm( 43-5/16 inch) long, vent

1шт.

15

130047A1

BREATHER ASSY.

VENT - fuel, 1/4 inch PTF short

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type 1/2", Insul, 3/8" Bolt

1шт.

17

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT - hex washer, special, 10 - 1.5 x 30 mm

1шт.

18

1348264C1

HOSE CLAMP

CLAMP - hose, 3/8 inch

3шт.

19

234888A1

FUEL HOSE,12.70 mm ID x 1280.00 mm , SAE 30R7

Fuel Supply, to Fuel Lift Pump 12.70 mm ID x 1280.00 mm , SAE 30R7

1шт.

20

244552A1

FUEL HOSE,9.53 mm ID x 2550.00 mm, SAE 30R7

Fuel Return, Fuel Cooler To Tank 9.53 mm ID x 2550.00 mm, SAE 30R7

1шт.

21

130048A1

PROTECTOR

SLEEVE - 203 mm (8 inch) long, fuel line hose guard

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

23

194199A1

FUEL FILTER

FILTER - fuel, in-line

1шт.

24

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 1/2 stem end x 1/4 inch PT, to engine fuel lift pump

1шт.

25

196247A1

FUEL HOSE,12.70 mm ID x 78.0 mm, SAE 30R7

Fuel Filter to Lift Pump 12.70 mm ID x 78.0 mm, SAE 30R7

1шт.

29

189602A2

COVER ASSY

COVER - left-hand loader lift frame tubing, mounted above fuel reservoir, models without clam bucket or auxiliary hydraulics, Replaces 189602A1

1шт.

29a

188009A2

COVER ASSY

COVER - left-hand loader lift frame tubing, mounted above fuel reservoir, models with clam bucket, not shown, Replaces 188009A1

1шт.

30

191046A1

ORNAMENTAL STRIP

TRIM - edge, 650 mm (25-19/32 inch) long, cut from A165860 bulk trim

1шт.

Apply 75 mm (3 inch) of trim to front lower edge and 570 mm (22-7/16 inch) of trim to outside lower edge of cover.

1шт.

31

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

1шт.

37

D40442

MOLDING

TRIM - edge, 305 mm (12 inch) long, cut from F42827 bulk trim

1шт.

38

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

- hex, 10 - 1.5 x 45 mm, Used with 188009A2 cover on models with three spool valve

1шт.

38

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Used with 189602A2 cover on models with two spool valve Hex, M10 x 20, 8.8, Full Thd

1шт.

39

D80270

ANTI-SKID STRIP,635mm / 25 Inch

STRIP, ANTI-SKID

2шт.

40

241685A1

COOLER

- fuel

1шт.

41

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

42

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

GUARD - hose sleeve

2шт.

43

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

4шт.

44

303922A1

FUEL HOSE

HOSE - 1225 mm (48-1/4 inch) long, injection pump to fuel cooler

1шт.

46

307577A1

BOLT

- hex washer, self-aligning, 8 - 1.25 x 20 mm

1шт.

A165860

TRIM

- edge, bulk, 696 mm (27-38 inch) long

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 2946 mm (116-inch) long

1шт.

32

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1-2шт.
