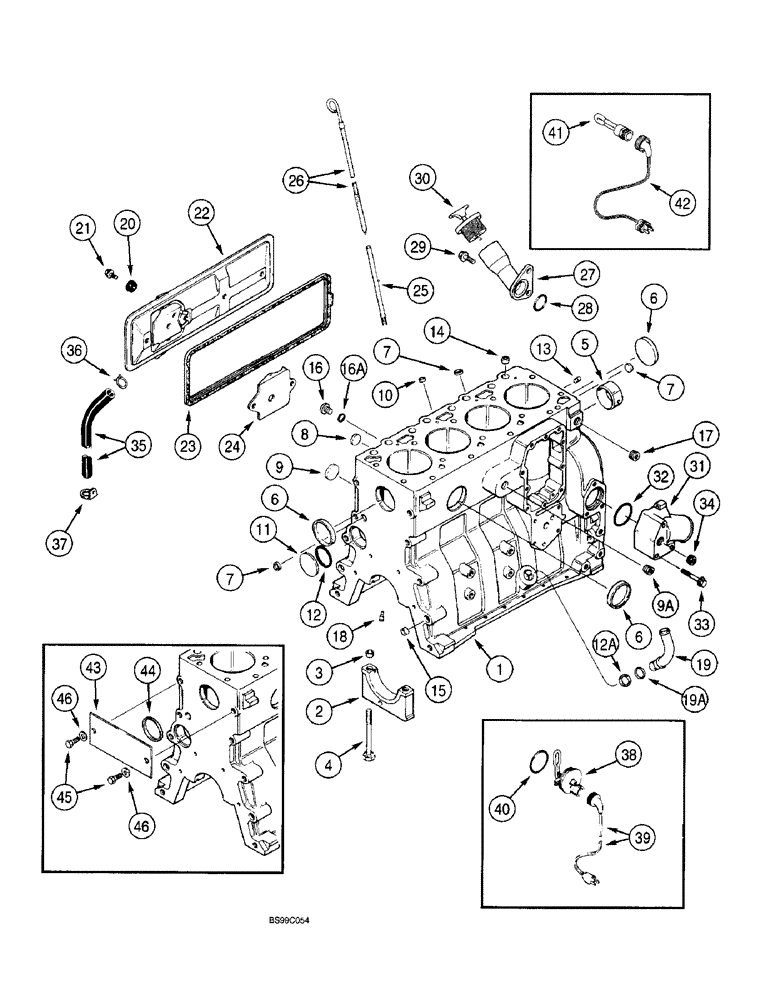

Запчасти Case 590SL (2-38) - CYLINDER BLOCK, 4T-390 EMISSIONS CERTIFIED ENGINE, ENGINE (02) - ENGINE

193744A2

ENGINE ASSEMBLY

- 4T-390 Emissions Certified, complete, for service Order 234277A2 basic engine below, models without powershift transmission

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover. Refs. 17A - 17E are not used in this application. Install Ref. 41 element in place of Ref. 9A, A77505 plug. Refs. 43 - 46 are not part of the engine assembly.

1шт.

283197A1R

ENGINE, EXCHANGE

Reman for new PN 193744A2

1шт.

4T-391C

CORE

Return Number

1шт.

283197A1

ENGINE ASSEMBLY

- 4T-390 Emissions Certified, complete, models with powershift transmission

1шт.

The engine part number is stamped on a metal tag which is mounted on the front gear cover. Refs. 17A - 17E are not used in this application. Install Ref. 41 element in place of Ref. 9A, A77505 plug. Refs. 43 - 46 are not part of the engine assembly.

1шт.

283197A1R

ENGINE, EXCHANGE

EXCHANGE ENGINE - Remanufactured, 4T-390 Emmissions Certified, complete

1шт.

4T-391C

CORE

-ENGINE - Return Number, use this part number to return P/N 283197A1 and P/N 283197A1R

1шт.

87605115

ENGINE

- Replacement, CDC, 3.9L, 4 Cyl.

1шт.

84251597R

REMAN-REPLACEMENT EN

Remanufactured, For N.A. Only

1шт.

84251597C

CORE-REPLACEMENT ENG

CORE-ENGINE - Return Number, CDC, 3.9L, 4 Cyl., N.A. Only

1шт.

234277A2

BASIC ENGINE

includes all parts except starter, alternator, fan, fan belt,air cleaner,muffler,exhaust manifold, flywheel & housing, oil fill & dipstick,fuel injection pump,injectors & lines,front pulley,belt tensioner,turbocharger & aftercooler; See Note

1шт.

234277A2R

REMAN-BASIC ENGINE

Component parts shown on this figure do not apply to the remanufactued assembly; See Note

1шт.

234277A2C

CORE-BASIC ENGINE

Return Number

1шт.

J933648

SHORT ENGINE

BLOCK ASSEMBLY - Short, New, includes stripped block, pistons, connecting rods and bearings, crankshaft and bearings, Includes: Ref. 1 - 8

1шт.

J933648R

SHORT ENGINE

BLOCK ASSEMBLY - short, Remanufactured, component parts shown on this figure do not apply to the remanufactured assembly

1шт.

J933648C

CORE-ENGINE

Return Number

1шт.

1

J932012

SCREW

BLOCK ASSEMBLY - stripped, engine, Order J933220 block hardware kit shown below also

1шт.

2

J903492

BEARING CAP

CAP - main bearing, Includes: Ref. 3

5шт.

3

J900068

BEARING WASHER

RING - dowel, 18 mm O.D., main bearing, Serial Range: cap-block

10шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

SCREW, , Main bearing cap, Special Hex Flg Hd, M12 x 1.5 x 119

10шт.

5

REF

INSTRUCTION

BUSHING - camshaft front, see figure 2-36, Ref. 2

1шт.

6

A77782

PLUG

- expansion, 58 mm O.D.

1шт.

7

J900956

PLUG

- expansion, 18 mm O.D.

3шт.

8

41-1616

PLUG,Cup, 1", Stainless

Expansion Cup, 1", Stainless

2шт.

J933220

PACKAGE,SERVICE

KIT - block hardware, includes Ref. 9 - 18

1шт.

9

J900958

PLUG

- expansion, 32 mm O.D.

2шт.

9a

A77505

PLUG

- hex socket, 3/4 inch PT

1шт.

10

J900955

PLUG

- expansion, 10 mm O.D.

1шт.

11

172599

PLUG,Exp, 2 3/8"

- expansion, Welch, 60 mm O.D.

1шт.

12

J926047

O-RING,0.07" Thk x 2.239" ID

- sealing, 57 mm ID

1шт.

12a

J920706

PLUG

- expansion, 22 mm O.D., not used in this application, Ref. 19, J931973 turbocharger oil drain tube is installed in this port

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

- dowel, 16 mm long, locating

2шт.

14

J902343

DOWEL

RING - dowel, 16 mm O.D.

2шт.

15

J900068

BEARING WASHER

RING - dowel, 18 mm O.D.

2шт.

16

J678923

PLUG,M10 x 1

- hex socket, 10 mm

3шт.

16a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

Cl 7, 8.1MM ID x 1.6 Thk, Plug

1шт.

17

A77429

PLUG

- hex socket, 1/2 inch PT

1шт.

17a

J678921

PLUG

- hex socket, 14 mm, not shown

1шт.

Not used in this application.

1шт.

17b

J678912

O-RING,2.2mm Thk x 11.3mm ID

Sealing, Not shown 11.3MM ID x 2.2 Thk

1шт.

Not used in this application.

1шт.

17c

J932296

PLUG

- timing sensor hole, not shown

1шт.

Not used in this application.

1шт.

17d

J330478

O-RING,0.07" Thk x 0.676" ID

- sealing, not shown

1шт.

Not used in this application.

1шт.

17e

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, M8 - 1.25 x 16 mm, 8.8, Not shown

1шт.

Not used in this application.

1шт.

18

J930139

NOZZLE CAP

NOZZLE - piston cooling

4шт.

19

J931973

TUBE,0.875" OD

- turbocharger oil drain, Replaces J903744

1шт.

19a

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING - sealing, 18 mm ID

1шт.

20

J900267

SEAL

- cover bolt

4шт.

21

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 16 mm

2шт.

22

J925680

COVER

- tappet

1шт.

23

J283767

GASKET,7.4mm Thk

- tappet cover

1шт.

24

J907586

BAFFLE

- tappet cover

1шт.

25

J905779

TUBE,9.52 mm OD x 228 mm L

- dipstick, models without powershift transmission

1шт.

26

J905781

DIPSTICK

- oil level gauge, models without powershift transmission

1шт.

27

J911696

TUBE,38.1 - 52.39 mm OD x 102.9, 56.5 mm L

- oil fill, models without powershift transmission

1шт.

27a

J905127

TUBE,9.52 mm OD x 180 mm L

- dipstick, models with powershift transmission, not shown

1шт.

27b

J904287

DIPSTICK

- oil level gauge, models with powershift transmission, not shown

1шт.

27c

J934190

TUBE

- oil fill, models with powershift transmission, not shown

1шт.

28

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

O-RING - 38 mm (1-1/2 inch) ID

1шт.

29

854-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 25 mm, class 10.9

2шт.

30

A77424

FILLER CAP

CAP - oil fill tube

1шт.

31

J934877

HYD CONNECTOR

CONNECTION - water inlet, Replaces J903102

1шт.

32

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING - sealing, 50 mm ID

1шт.

33

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, M10 x 75; 10.9

3шт.

34

A77429

PLUG

- hex socket, 1/2 inch PT

2шт.

35

J918612

TUBE,360.00 mm

Breather 360.00 mm

1шт.

36

J904230

CLAMP,25.4mm

- spring, hose

1шт.

37

J928989

CLIP

- retaining

1шт.

196803A1

KIT

- engine block heater, Includes: Ref. 38 - 40

1шт.

38

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt, 750 watt

1шт.

39

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

40

J910517

O-RING

- heater sealing

1шт.

309651A1

KIT

- engine block heater

1шт.

41

NSS

NOT SOLD SEPARAT

ELEMENT - engine heater, 120 volt, 750 watt

1шт.

Install element in place of Ref. 9A, A77505 plug.

1шт.

42

196466A1

ELECTRIC CABLE

CABLE - engine block heater

1шт.

323698A1

KIT

- expansion plug repair, Includes Ref. 43-46

1шт.

Not part of the engine assembly.

1шт.

43

322984A1

PLATE

- cover

1шт.

44

J910530

SEAL

- quad ring

1шт.

45

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

- hex, full threads, 12 - 1.75 x 40 mm

2шт.

46

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

A77887

PACKAGE,SERVICE

KIT engine overhaul, includes Refs. 47 - 54

1шт.

47

J802747

PISTON & RINGS KIT,100MM PISTON DIAMETER

KIT - piston, standard, ses figure 2-46

4шт.

48

J919053

PISTON PIN

PIN - piston, See figure 2-46

4шт.

49

A77465

BEARING SET

KIT - bearing, upper and lower set, standard, see figure 2-26

4шт.

50

A77405

CRANKSHAFT BEARING

BEARING - main, upper and lower set, standard, see figure 2-42

4шт.

51

A77896

BEARING SET

BEARING - main thrust, upper and lower set, standard, see figure 2-42

1шт.

52

A77870

SEAL PACKAGE

KIT - gasket, valve grind, see figure 2-48

1шт.

53

J283333

CYLINDER HEAD GASKET,2.32mm Thk

- head, standard, see figure 2-32

1шт.

54

A77673

GASKET KIT

KIT - gasket, oil pan, see figure 2-30

1шт.
