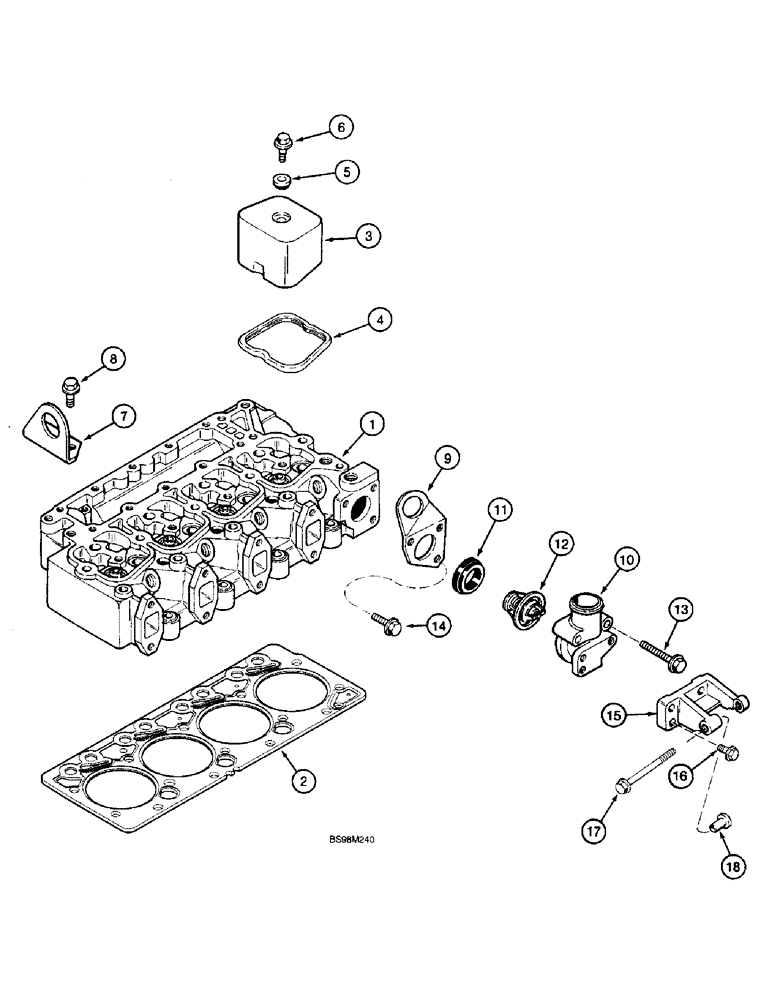

Запчасти Case 590SL (2-32) - CYLINDER HEAD COVERS, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

1

REF

INSTRUCTION

HEAD - cylinder, see figure 2-34 for correct cylinder head and parts list

1шт.

2

J283333

CYLINDER HEAD GASKET,2.32mm Thk

- head, standard

1шт.

2

J283336

GASKET

- head, 2 notches, 0.25 mm thicker

1шт.

2

J283338

GASKET

- head, 3 notches, 0.50 mm thicker

1шт.

3

J928404

COVER

- rocker arm

4шт.

4

J930906

GASKET

SEAL - rocker arm cover

4шт.

5

J935449

ISOLATOR,10.2mm ID x 19mm OD x 10.1mm L

- noise, replaces J928406 isolator and 495-11041 flat washer

4шт.

6

J907049

BOLT,Hex

- hex flange, special, 8 - 1.25 x 21.25 mm

4шт.

7

J908118

BRACKET

- lifting, rear

1шт.

8

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 30 mm, class 10.9

2шт.

9

J903757

BRACKET

- lifting, front, thermostat and housing

1шт.

10

J914409

HOUSING

- thermostat and housing

1шт.

A77736

THERMOSTAT

KIT - coolant thermostat, Includes: Ref. 11 and 12, and housing

1шт.

11

J923331

GASKET

- thermostat housing

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT - coolant, and housing

1шт.

13

J926972

FLANGE BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

BOLT - heavy hex flange, 8 - 1.25 x 70 mm, thermostat and housing

2шт.

14

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 35 mm, Thermostat and housing

1шт.

15

J923387

SUPPORT

- alternator mounting, thermostat and housing

1шт.

16

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 25 mm, Thermostat and housing

3шт.

17

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

- hex, 10 - 1.5 x 100 mm, Models with powershift transmission, thermostat and housing

1шт.

18

J902469

SPACER

- alternator mounting, models with powershift transmission, thermostat and housing

1шт.
