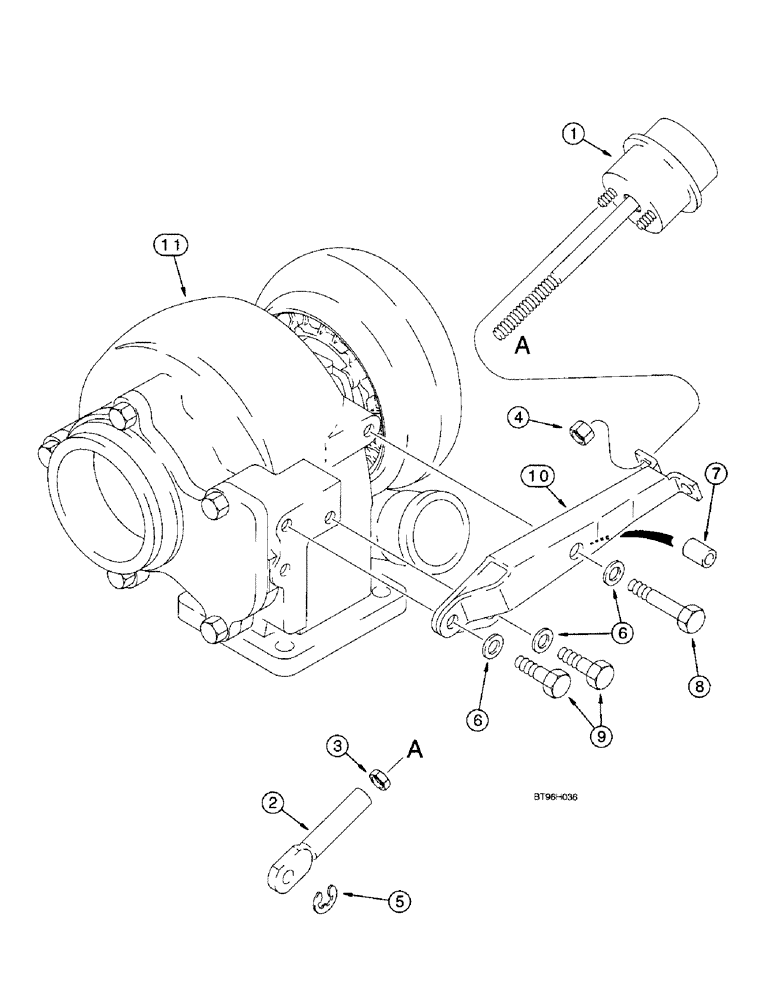

Запчасти Case 590SL (2-26) - WASTEGATE ACTUATOR, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J802798

TURBOCHARGER

KIT - turbocharger, includes all parts shown below and on figure 2-24, Includes: Ref. 1 - 11

1шт.

JR802798

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

JC536336

CORE-TURBOCHARGER

Return Part Number

1шт.

1

J537560

ACTUATOR

- turbo wastegate

1шт.

2

J528177

LINK

- adjusting

1шт.

3

425-155

JAM NUT,Jam, 5/16"-24, G5

- hex, jam, 5/16 inch NF

1шт.

4

J528204

LOCK NUT

- lock

2шт.

5

J528221

CIRCLIP

RING - retaining

1шт.

6

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

3шт.

7

J532195

SPACER,9.38mm ID x 16.03mm OD x 13.7mm L

- mounting, short, 13,6 mm

1шт.

8

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm

1шт.

9

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

10

J535203

SUPPORT

BRACKET - wastegate actuator

1шт.

11

NSS

NOT SOLD SEPARAT

HOUSING - turbine

1шт.
