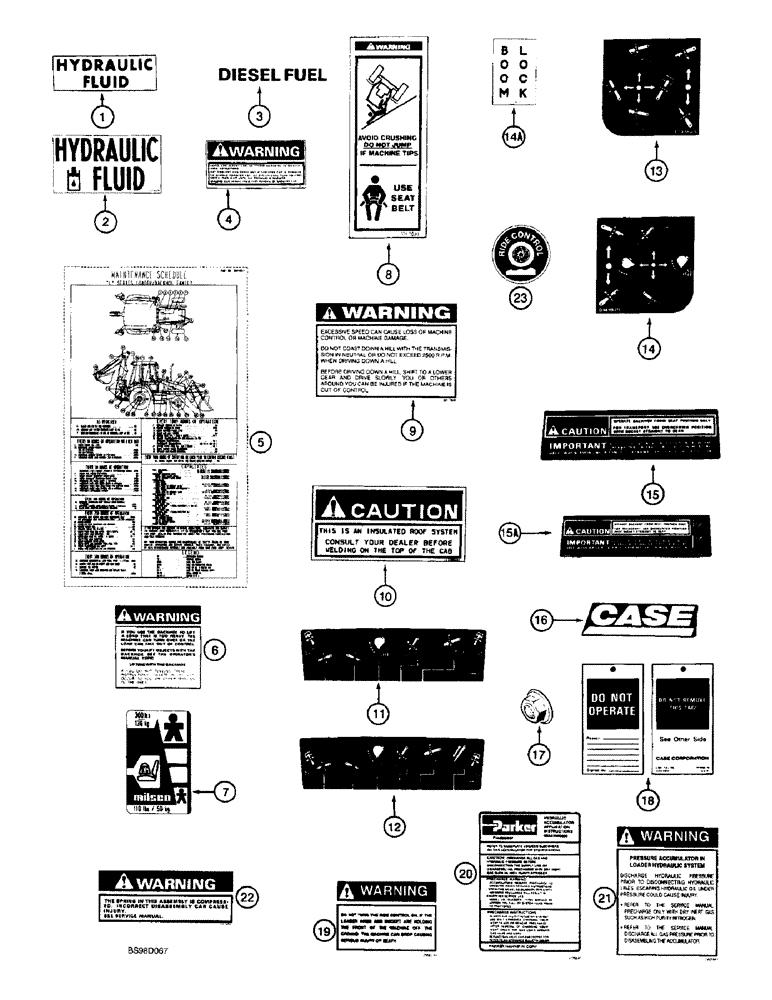

Артикул
Название
Примечание
Количество
1
321-229
DECAL
- hydraulic fluid, used in production, for service order 321-6376, Ref. 2
1шт.
2
321-6376
DECAL
- hydraulic fluid
1шт.
3
321-230
DECAL
- diesel fuel
1шт.
4
321-6672
DECAL
- Warning, check and service cooling system
2шт.
5
304940A1
DECAL
- maintenance schedule, supplied by Parts and Components
1шт.
6
321-6046
WARNING DECAL
DECAL, WARNING, if you use the backhoe to lift a load that is too heavy
1-3шт.
7
116534A1
KIT
- decal, seat weight adjustment, includes instructions, included in seat assembly
1шт.
8
321-7030
WARNING DECAL
DECAL WARNING, Do Not Jump - Use Seat Belt
1шт.
9
D150900
DECAL
- Warning, excessive speed can cause loss of machine control
1шт.
10
112236A1
DECAL
- Caution, this is an insulated roof system, cab models
1шт.
11
D149824
DECAL
- standard backhoe control pattern, with foot swing, upper
1шт.
12
D149825
DECAL
- extendahoe control pattern, with foot swing, upper
1шт.
13
D149828
DECAL
- standard backhoe control pattern, with hand swing, upper, left-hand side of control console
1шт.
14
D149829
DECAL
- standard backhoe control pattern, with hand swing, upper, right-hand side of control console
1шт.
14a
L111356
DECAL
- boom lock
1шт.
15
D149826
IMPORTANT DECAL
DECAL - Caution, operate backhoe from seat position only, lower, for all models, with foot swing backhoe controls and standard backhoe models with hand swing
1шт.
15a
D149827
IMPORTANT DECAL
DECAL - Caution, operate backhoe from seat position only, lower, for extendahoe backhoe models with hand swing
1шт.
16
186989A1
EMBLEM
- Case
1шт.
17
131-431
PUSH-ON NUT,Self, Threading, 1/4"
NUT, LOCK, , Push on type Self, Threading, 1/4"
2шт.
18
321-4614
TAG
- do not operate
1шт.
19
255927A1
WARNING DECAL
- Warning, do not turn the ride control on, if the loader arms and bucket are holding the front of the machine off the ground, mounts on console by ride control switch, models with ride control, if used
1шт.
20
L129440
DECAL
- hydraulic accumulator application instructions, mounts on accumulator, models with ride control, if used
1шт.
21
256318A1
DECAL
- Warning, pressure accumulator in loader hydraulic system, mounts on accumulator mounting plate, models with ride control, if used
1шт.
22
321-6774
WARNING DECAL
DECAL, WARNING, the spring in this assembly is
1шт.
23
304083A1
DECAL
- ride control
2шт.
Выбрано товаров: 25
