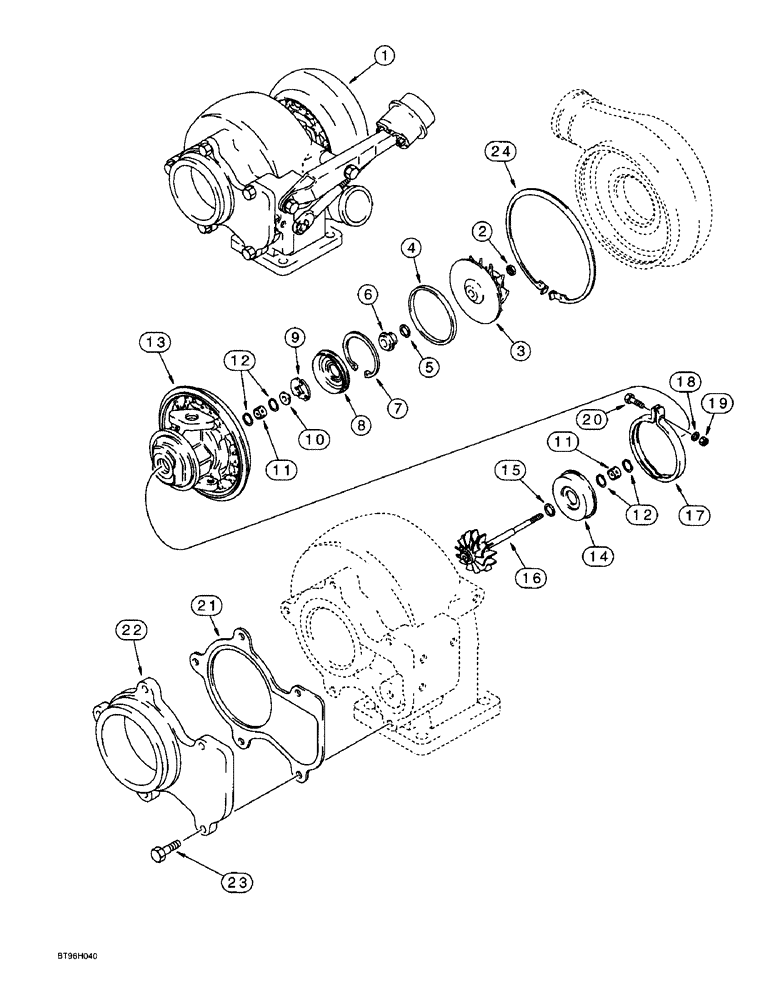

Запчасти Case 590SL (2-24) - TURBOCHARGER ASSEMBLY, 4T-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

J802798

TURBOCHARGER

KIT - turbocharger, large frame, includes new turbocharger assembly, (1) J519807 turbo oil drain tube gasket and (1) J709861 turbocharger mounting gasket, not shown,See Ref. 1 - 11 on figure 2-26, Includes: Ref. 1 - 24

1шт.

JR802798

REMAN-TURBOCHARGER

KIT - turbocharger, engine, remanufactured, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 1 - 24

1шт.

JC537562

CORE-TURBOCHARGER

Return Part Number use this part number to return turbocharger core for credit when using a remanufactured assembly, Includes: Ref. 1 - 24

1шт.

See Refs. 1 - 11 on figure 2-26.

1шт.

1

J580234

HOUSING ASSY.

CENTER HOUSING ASSEMBLY - turbocharger, Includes: Ref. 2 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

NUT - hex, lock

1шт.

Part of turbocharger overhaul kit J575205

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER - turbocharger

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - plate

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - slit ring

1шт.

Part of turbocharger overhaul kit J575205

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER - oil

1шт.

7

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

Part of turbocharger overhaul kit J575205

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE - oil

1шт.

Part of turbocharger overhaul kit J575205

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING - turbocharger thrust

1шт.

Part of turbocharger overhaul kit J575205

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR - thrust

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING - turbocharger

2шт.

Part of turbocharger overhaul kit J575205

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retaining

4шт.

Part of turbocharger overhaul kit J575205

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING - turbo bearing

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD - turbo heat

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL - split ring

1шт.

Part of turbocharger overhaul kit J575205

1шт.

15a

NSS

NOT SOLD SEPARAT

SEAL - oil, not shown

1шт.

Part of turbocharger overhaul kit J575205

1шт.

16

NSS

NOT SOLD SEPARAT

ROTOR ASSEMBLY - with shaft

1шт.

17

J531670

CLIP

CLAMP - adjustable

1шт.

18

J535971

WASHER

- flat, special

1шт.

19

J531582

NUT

- hex

1шт.

Part of turbocharger overhaul kit J575205

1шт.

20

J531598

BOLT,Hex, M6 x 1 x 35, Stainless

BOLT - hex

1шт.

Part of turbocharger overhaul kit J575205

1шт.

21

J535001

GASKET,0.25mm Thk

- adapter

1шт.

22

J527759

ADAPTER

- connection

1шт.

23

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

24

J535800

RING, SNAP

RING - snap

1шт.

J575205

PACKAGE, REPAIR

KIT overhaul, turbocharger, Includes Ref. 2, 5, 7 - 9, 11, 12, 15, 15A, 19 and 20

1шт.
