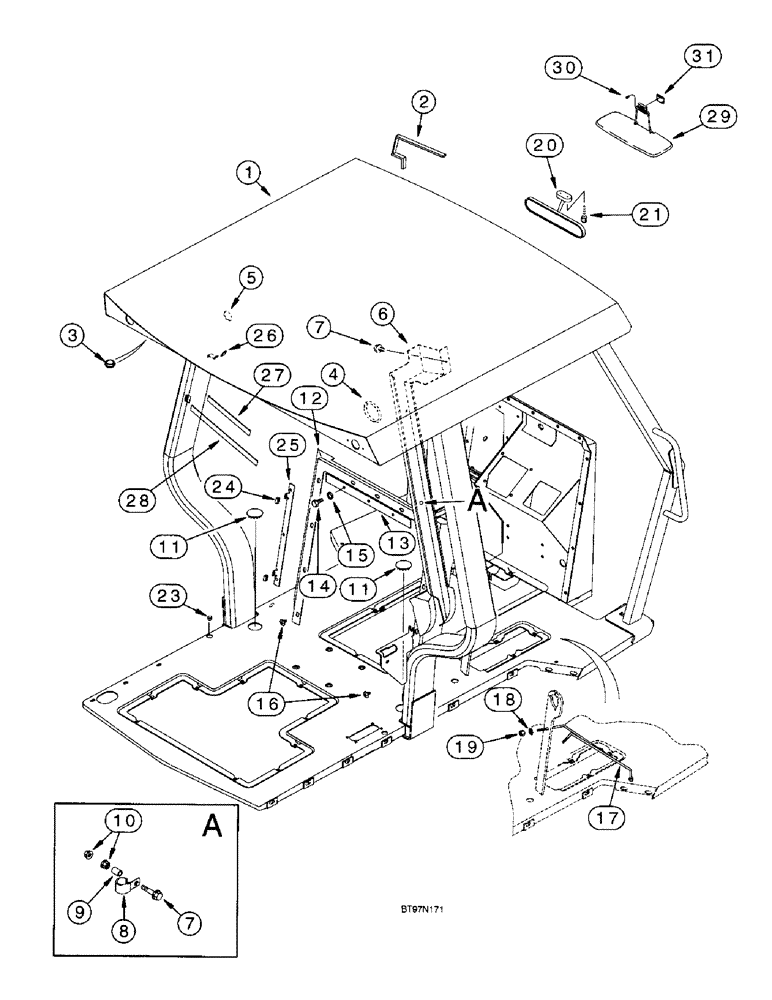

Запчасти Case 590SL (9-91) - ROPS CANOPY, OPERATOR COMPARTMENT (09) - CHASSIS/ATTACHMENTS

1

281001A1

ROPS

CANOPY - ROPS, order from Machinery Price List, for service order 281004A1 which is the complete ROPS canopy with decals and mounts

1шт.

2

D60180

STRIP

TRIM - edge, 368 mm (14-1/2 inch) long, cut from F42827 bulk trim, if used

2шт.

345-133

GLUE

ADHESIVE - Superbonder 409, attaches wire harness to ROPS post, if used

1шт.

3

353-405

PLUG,Dome, .562" hole, Nylon

- button, 9/16 inch

4-10шт.

4

1302758C1

PLUG

- plastic, 89 mm O.D., Replaces D93716 plug

4шт.

5

353-417

PLUG,Dome, 2.000" hole, Nylon

- button, 2 inch, nylon, driving, flood and work lamps

8шт.

6

127324A1

COVER

- wiring, right-hand ROPS post

1шт.

7

282-16512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

- self-drilling tapping, hex washer head, No. 10-16 x 3/4 inch, Teflon

3шт.

8

D147383

CLIP,5/8" J

CLAMP - J-type, canopy harness to ROPS post

2шт.

9

128265A1

SPACER,10.31mm ID x 15.85mm OD x 13mm L

- clamp

2шт.

10

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

4шт.

11

205-129

HOLE PLUG BUTTON,2"

PLUG - button, 2 inch ID, floor

2шт.

12

143121A1

MOLDING

SEAL - firewall

1шт.

13

143127A1

PLATE

- stiffener, firewall

1шт.

14

781-24820

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 20mm

BOLT - hex flange, self-tapping, 8 - 1.25 x 20 mm

9шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

9шт.

16

D143242

PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L

RETAINER - push-in, plastic

2шт.

17

180801A1

SUPPORT

BRACE - loader control bracket

1шт.

18

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

19

425-106

NUT,3/8"-16, Cl 5

6шт.

20

194513A1

MIRROR

- rear view, interior

1шт.

21

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

- self-tapping, Fillister head, No. 10 NC x 1-1/4 inch

2шт.

23

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch, if used

1шт.

24

127367A1

NUT,M6, U

4шт.

25

137851A1

PLATE

- bar, front console, Serial Range: mounting-firewall

2шт.

26

294666A1

COVER

- coat hook

1шт.

27

296367A1

STRAP

- velcro

1шт.

28

282845A1

STRAP

- velcro

1шт.

29

E47027

VISOR, SUN

VISOR - sun shade

1шт.

30

260-14516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1 inch, Replaces 260-14512 3/4 inch long screw used on some models

3шт.

31

307243A1

SHIM,60mm W x 45mm L x 3mm Thk

- plate, visor mounting

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 2946 mm (116 inch) long

1шт.
