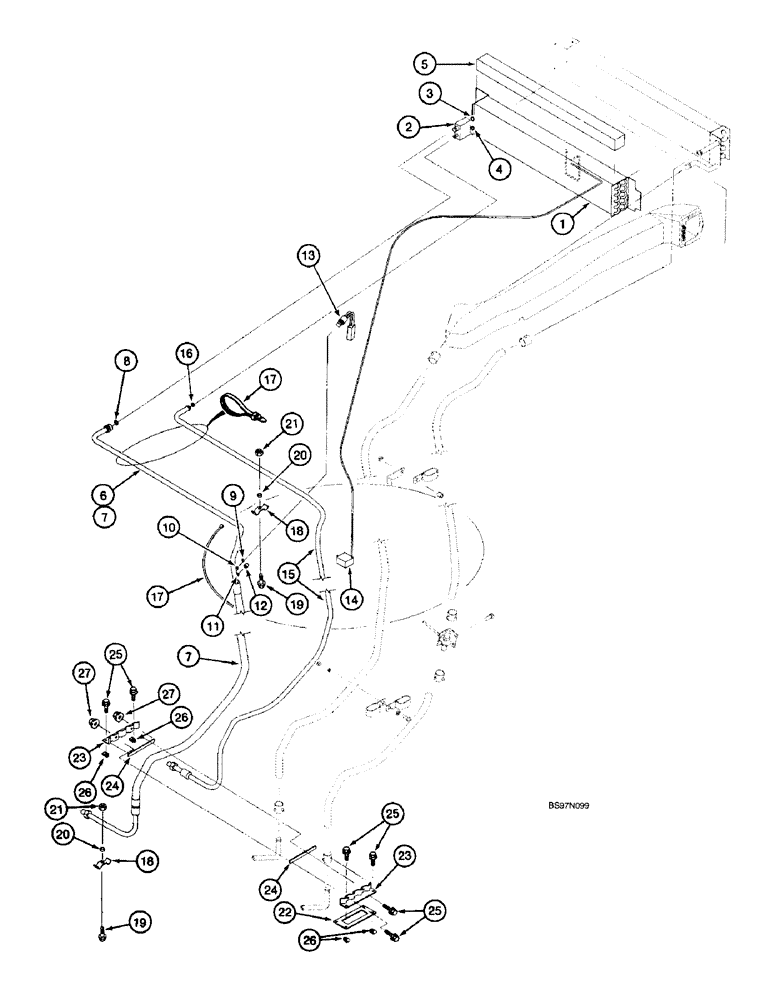

Запчасти Case 590SL (9-88) - CAB, EVAPORATOR CORE AIR CONDITIONING LINES (09) - CHASSIS/ATTACHMENTS

1

131127A2

EVAPORATOR

CORE ASSEMBLY - evaporator, Includes: Ref. 2 - 4

1шт.

2

1990756C2

VALVE

- expansion

1шт.

3

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide

1шт.

4

128484A1

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 70 Duro

- 7/16 ID x 1/16 inch wide

1шт.

5

181980A1

SEALING STRIP

SEAL - adhesive-backed, 19 (3/4) x 19 (3/4) x 680 mm (26-3/4 inch) long, apply seal to top of evaporator core on models with heat and air conditioning

1шт.

6

83822C1

TAPE

- 610 mm (24 inch) long, cut from 1954475C1 bulk tape, insulation, expansion valve and hoses at expansion valve

3шт.

7

190599A1

HOSE

- suction, Includes: Ref. 8 - 12

1шт.

8

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

- 9/16 ID x 1/16 inch wide, hose end

1шт.

9

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide, hose valve core

1шт.

10

1250594C1

CORE

VALVE - core, hose, low pressure switch

1шт.

11

1250594C1

CORE

VALVE - core, hose, low side service port

1шт.

12

122553A1

CAP

- sealing

1шт.

13

122579A1

SWITCH, A/C LOW PRES

SWITCH - low pressure

1шт.

14

1340287C1

SWITCH

- temperature control, air conditioning

1шт.

15

124727A1

HOSE

- 3200 mm (126 inch) long, pressure, liquid line, attaches to Ref. 24 hose on figure 9-89, Includes: Ref. 16

1шт.

16

128483A1

O-RING,1.78mm Thk x 7.65mm ID, 70 Duro

- 5/16 ID x 1/16 inch wide, hose end

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, retaining

1шт.

18

D143427

CLAMP

- tube

2шт.

19

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30, Full Thd

2шт.

20

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

- 10 ID x 16 O.D. x 6 mm long, hose clamp

2шт.

21

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

2шт.

22

124011A1

GASKET,149mm L x 64mmL x 5mm L

- at cab floor, heat or air conditioned models, trim center of gasket for air conditioned units

1шт.

23

123980A1

SHIN

CLAMP - heater and air conditioning hoses

2шт.

24

181979A1

SEALING STRIP

SEAL - foam

2шт.

25

845-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 20 mm

6шт.

26

833-40406

NUT,M6, U

- U-type, 6 mm - 1.0

4шт.

27

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

1954475C1

ROLL

TAPE - bulk, 63.5 (2-1/2) x 9150 (360) x 3 mm (1/8 inch) thick, insulation

1шт.
