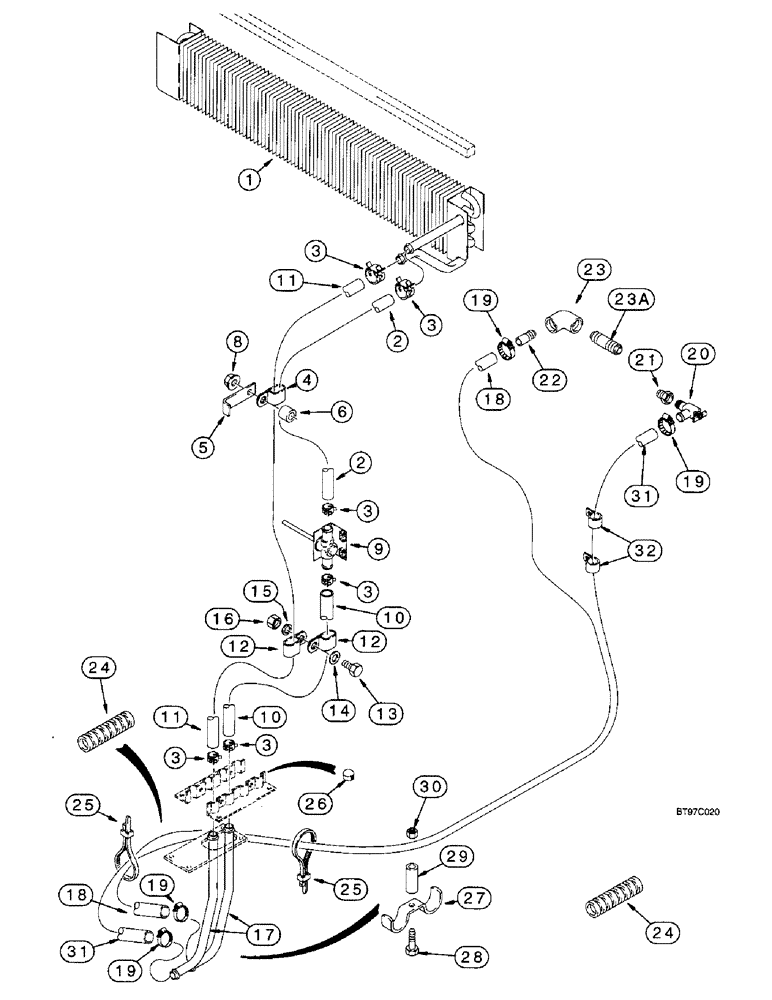

Запчасти Case 590SL (9-87) - CAB, HEATER (09) - CHASSIS/ATTACHMENTS

1

131124A1

CORE

- heater, mounts in blower housing box, seal mounts on top of heater core on models with heater only, see figure 9-88 for seal

1шт.

2

128412A1

HEATER HOSE,15.50 mm ID x 1100.00 mm, SAE J20, 20R3

HOSE , Cut from 97252CX bulk hose, Heater Core to Temperature Control Valve 15.50 mm ID x 1100.00 mm, SAE J20, 20R3

1шт.

3

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, , Adjustable #24

6шт.

4

470375C1

CLAMP,1", Insul, 3/8" Bolt

- double

2шт.

5

R53634

SHIN

CLAMP - hose, included in air conditioner package

2шт.

6

126907A1

SPACER,10.31 ID x 15.85 OD x 16.7 L

- hose

2шт.

8

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

2шт.

9

R52483

VALVE

- temperature control, heater, see figure 9-80 for mounting hardware

1шт.

10

128410A1

HEATER HOSE,15.50 mm ID x 925.00 mm, SAE J20, 20R3

HOSE , Cut from 97252CX bulk hose, Temperature Control Valve to Floor 15.50 mm ID x 925.00 mm, SAE J20, 20R3

1шт.

11

128411A1

HEATER HOSE,15.50 mm ID x 2030.00 mm, SAE J20, 20R3

HOSE , Cut from 97252CX bulk hose, Heater Core to Floor 15.50 mm ID x 2030.00 mm, SAE J20, 20R3

1шт.

12

470375C1

CLAMP,1", Insul, 3/8" Bolt

- double, hose

2шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

1шт.

14

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

17

190675A1

TUBE,15.88 mm OD, 295 mm Length

- heater elbow at floor

2шт.

18

307843A1

HOSE,15.88 mm ID x 2120.00 mm, SAE J20 or SAE 20R3

HEATER HOSE - Cut from 97252CX bulk hose, Floor to LH side of engine, Short 15.88 mm ID x 2120.00 mm, SAE J20 or SAE 20R3

1шт.

19

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

4шт.

20

301803R1

SHUT-OFF VALVE

VALVE - shutoff, shutoff, right-hand side of engine

1шт.

21

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

- pipe, 1/2 male x 3/8 inch female, replaces existing plug

1шт.

22

L17985

FITTING,3/8" - 18 NPT

NIPPLE - 3/8 inch PT, left-hand side of engine

1шт.

23

221-1382

ELBOW,90 Degree, Fem, 1/2" NPt x 3/8" NPT

- street, 90 degree 1/2 x 3/8 inch PT

1шт.

23a

221-190

PIPE,Nipple, 1/2" NPT x 2"

NIPPLE - straight, 1/2 PT x 2 inch, replaces existing plug

1шт.

24

D132982

PADDLE,26.87mm ID x 400mm L

SLEEVE - hose guard

4шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon, retaining

3шт.

26

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch, air conditioning drain, used on models with heat only

2шт.

27

D143427

CLAMP

- tube

1шт.

28

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30, Full Thd

1шт.

29

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

- 10 ID x 16 O.D. x 6 mm long

1шт.

30

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

M8 x 1.25", Flg, Cl 8

1шт.

31

307844A1

HOSE,15.88 mm ID x 3020.00 mm, SAE J20 or SAE 20R3

HEATER HOSE - Cut from 97252CX bulk hose, RH side of engine 15.88 mm ID x 3020.00 mm, SAE J20 or SAE 20R3

1шт.

32

D88052

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

- P-type, 1 inch ID, uses existing bellhousing hardware

2шт.

97252CX

HOSE

- bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long

1шт.
