Артикул
Название
Примечание
Количество
A186171
WIPER MOTOR
WIPER ASSEMBLY - windshield, 12 volt, with bracket, front windshield wiper, Includes: Ref. 1 - 9
1шт.
1
A186256
WIPER MOTOR,12V
MOTOR - wiper, 12 volt, windshield wiper
1шт.
2
N8359
SUPPORT
BRACKET - windshield wiper assembly
1шт.
3
N8362
CAPTIVE WASHER SCREW,Hex, M6 x 18.50mm, Gr 10.9
SCREW - with washer, special, motor to bracket
3шт.
4
N8361
SPRING WASHER
- Belleville
1шт.
5
L112090
NUT
- hex, special, 8 mm
1шт.
6
N8360
SUPPORT
ARM - drive
1шт.
7
N8358
LINK
LINK - wiper
1шт.
8
N14112
SHAFT
- pivot
1шт.
9
N8356
SCREW,Phillips Drive, Flat HD, M5 x 8mm
- special, pivot shaft to bracket
4шт.
10
L112088
WASHER
- special, large, shaft
1шт.
11
L112087
NUT
- special, large, shaft
1шт.
12
L112089
WASHER
- wave, special, shaft end
1шт.
13
L112090
NUT
- hex, special, 8 mm, shaft end
1шт.
14
L112081
CAP
- pivot shaft end
1шт.
15
R54241
SPACER
- pivot shaft
1шт.
16
D128745
WIPER ARM
ARM - windshield wiper, 570 mm (22-7/16 inch) long, complete
1шт.
17
A187909
WIPER BLADE
BLADE - wiper arm, complete, used in production, 500 mm (19-11/16 inch) long, not available for service, for complete blade order Ref. 17A, 132024A1
1шт.

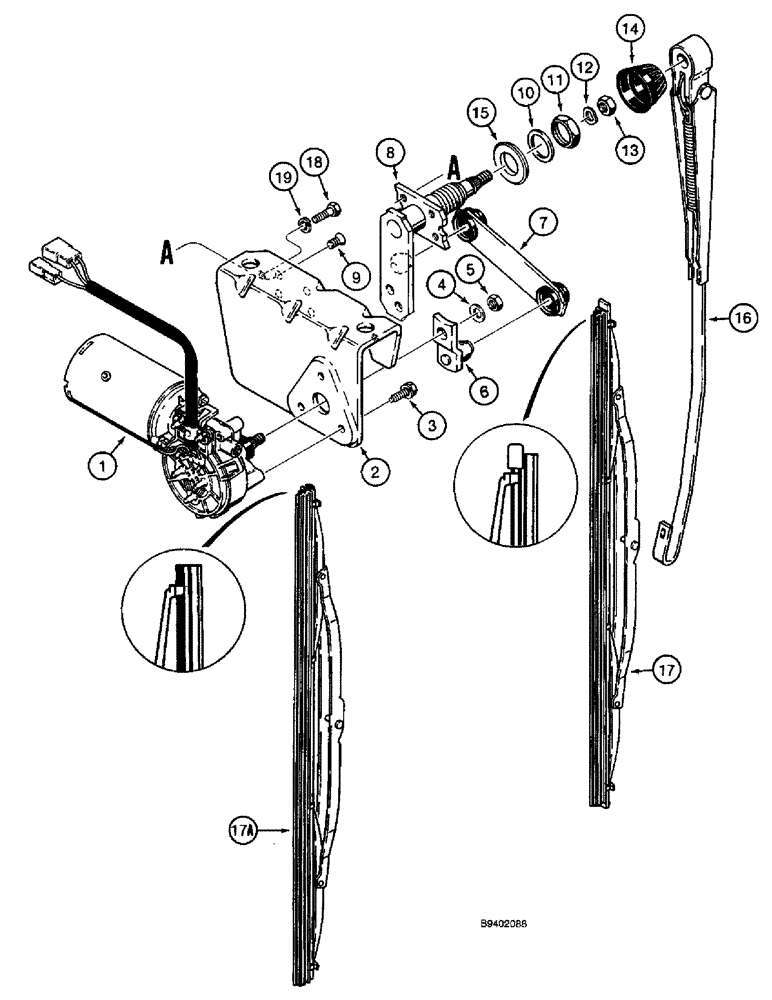

See the blade ends in the illustrations for items 17 and 17A to determine which blade to order.
1шт.
17a
132024A1
WIPER BLADE
BLADE - wiper arm, complete, for blade only, order 132025A1 blade refill, shown below
1шт.
See the blade ends in the illustrations for items 17 and 17A to determine which blade to order.
1шт.
18
414-412
BOLT,Hex, 1/4" - 28 x 3/4", Gr 5
- hex, 1/4 NF x 3/4 inch
2шт.
19
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
1983335C1
WIPER
BLADE - rubber, 500 mm long, refill for A187909 complete blade, no longer available, order Ref. 17A, 132024A1
1шт.
See the blade ends in the illustrations for items 17 and 17A to determine which blade to order.
1шт.
132025A1
WIPER BLADE
BLADE - rubber, 500 mm long, refill for 132024A1 complete blade
1шт.
See the blade ends in the illustrations for items 17 and 17A to determine which blade to order.
1шт.
Выбрано товаров: 27
