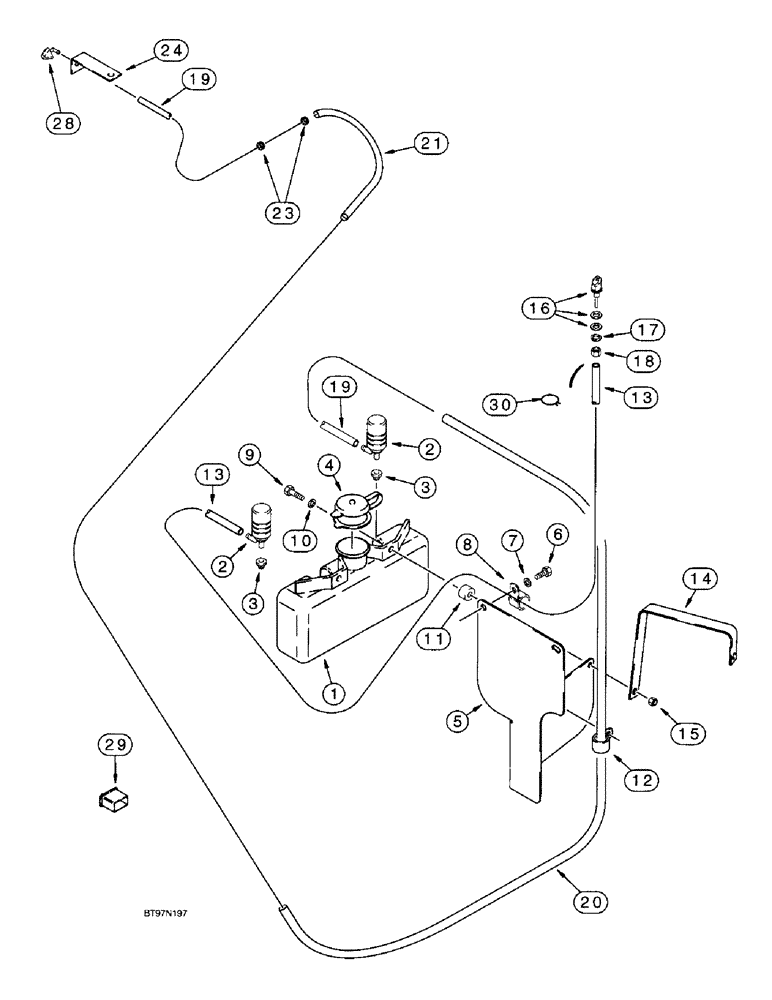

Запчасти Case 590SL (9-81) - WINDSHIELD WASHERS - FRONT AND REAR (09) - CHASSIS/ATTACHMENTS

E46560

RESERVOIR

- windshield washer, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

RESERVOIR - windshield washer

1шт.

2

E47238

PUMP,12V

- windshield washer

2шт.

3

E47239

SEAL,6.5mm ID x 12mm OD x 10mm L

GASKET - mounting

2шт.

4

E47240

PLUG

CAP - reservoir

1шт.

5

367073A1

BRACKET

- reservoir mounting, mountings to firewall, replaces 226376A1

1шт.

6

806-8040

BOLT,Hex, M8 x 40mm, Cl 10.9

- hex, self-locking, 10 - 1.5 x 40 mm, class 10.9

2шт.

8

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

P-type 3/8", Insul, 5/16" Bolt

1шт.

9

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

11

E46561

SPACER

- plastic

2шт.

12

D147383

CLIP,5/8" J

CLAMP - J-type, 5/8 inch diameter

1шт.

13

292408A1

HOSE

- 850 mm (33-1/2 inch) long, front washer, fixed hood to reservoir pump closest to the firewall

1шт.

14

367957A1

STRIP

BRACKET - support, uses existing air cleaner mounting hardware, Replaces 295597A1

1шт.

15

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

2шт.

16

284154A1

NOZZLE,3/8" - 16

NOZZLE - washer, front, includes steel and rubber washer which are not serviced separately

1шт.

17

492-11038

LOCK WASHER,3/8"

1шт.

18

425-106

NUT,3/8"-16, Cl 5

1шт.

19

226584A1

HOSE,4mm ID x 5020mm L

- 5020 mm (197-11/16 inch) long, rear washer, mounts to reservoir pump located the furthest away from the firewall

1шт.

20

226582A1

HOSE PROTECTION

SLEEVE - hose, 1850 mm (72-7/8 inch), lower hose

1шт.

21

226580A1

PROTECTOR

SLEEVE - hose, 520 mm (20-1/2 inch), upper hose

1шт.

23

E46524

GROMMET

- rubber, 8 (5/16) ID x 23 mm (29/32 inch) O.D.

2шт.

24

305818A1

SUPPORT

BRACKET - rear nozzle mounting, uses existing lamp mounting hardware

1шт.

28

E43769

SPRAY

NOZZLE - washer, rear, includes rubber gasket which is not serviced separately

1шт.

29

144900A1

WINDSHIELD WASHER SW

SWITCH - rocker, windshield washer, front and rear, mounts in cab control panel

1шт.

30

305578A1

CLAMP,7.65mm - 8.76mm

- hose

1шт.

10

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

7

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.
