Артикул
Название
Примечание
Количество
1
REF
INSTRUCTION

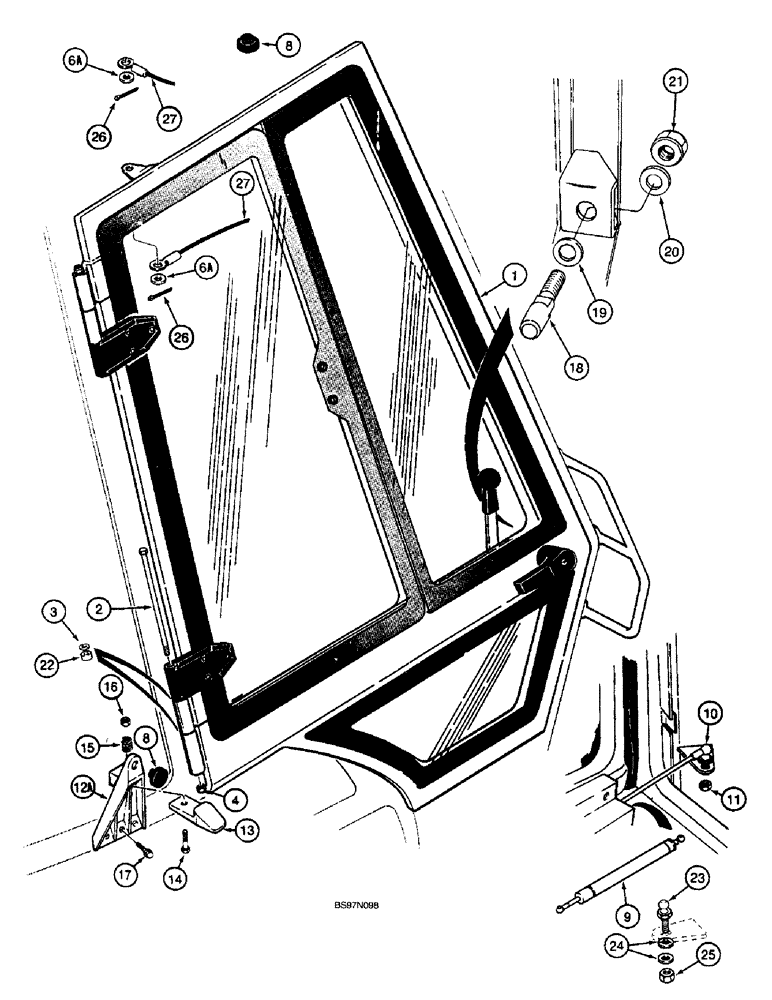

DOOR - cab, see figure 9-76 through 9-78
1шт.
2
413-6152
BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5
- hex, 3/8 NC x 9-1/2 inch
4шт.
3
F64046
WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk
- thrust, plastic
8шт.
4
131-203
LOCK NUT,3/8"-16, GB, LH
NUT - light hex, self locking, 3/8 inch NC
4шт.
6a
495-21038
WASHER,5/16"
(flat, 3/8 x 7/8 x 3/32") 5/16"
4шт.
8
L60224
BUMPER
- rubber, cab door frame and window latch
4шт.
9
F44881
CYLINDER ASSY.
CYLINDER - door, left-hand and right-hand
2шт.
10
1340345C1
BALL STUD
STUD - ball, cylinder, right-hand door
1шт.
11
230-4215
NUT,5/16"-18, GA
NUT - hex, self-locking, 5/16 inch NC
2шт.
12
230590A1
SUPPORT
BRACKET - left-hand cab door window retaining, mounts to frame, black, not shown
1шт.
12a
230589A1
SUPPORT
BRACKET - right-hand cab door window retaining, mounts to frame, black
1шт.
13
230588A1
LATCH
- door window to cab frame
2шт.
15
D36669
SPRING
- compression, left-hand and right-hand window latch release
2шт.
16
230-4214
LOCK NUT,1/4"-20, GA
NUT - hex, self-locking, 1/4 inch NC
2шт.
17
281-18712
SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"
SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch, bracket to frame
6шт.
18
R52735
LATCH
STRIKER - door latch
2шт.
19
F44748
SPRING WASHER
SPRING - Belleville, washer
2шт.
20
495-81148
WASHER,7/16" x 1 1/4" x .134"
- flat, 7/16 x 1-1/4 x 1/8 inch
2шт.
21
230-4217
LOCK NUT,7/16"-14, GA
NUT - hex, self-locking, 7/16 inch NC
2шт.
22
107949A1
BUSHING
- door hinge
8шт.
23
139362A1
BALL JOINT
STUD - upper ball, 10 mm - 1.5, cylinder, left-hand door
1шт.
24
495-71041
WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk
- flat, 13/32 x 1-1/4 x 3/32 inch
2шт.
25
832-10410
NUT,M10 x 1.5, Cl 8
NUT, LOCK, M10 x 1.5, Cl 8
1шт.
26
COTTER PIN,Int, 7/64" x .051"
PIN - hair, 7/64 x 3/4 inch, mounts to clevis pin welded to frame
4шт.
27
225059A1
CABLE,280mm L
- door, upper
2шт.
228689A1
PIN
- clevis, welded to cab frame, not shown
4шт.
14
413-420
BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5
Latch to bracket Hex, 1/4"-20 x 1 1/4", G5
2шт.
