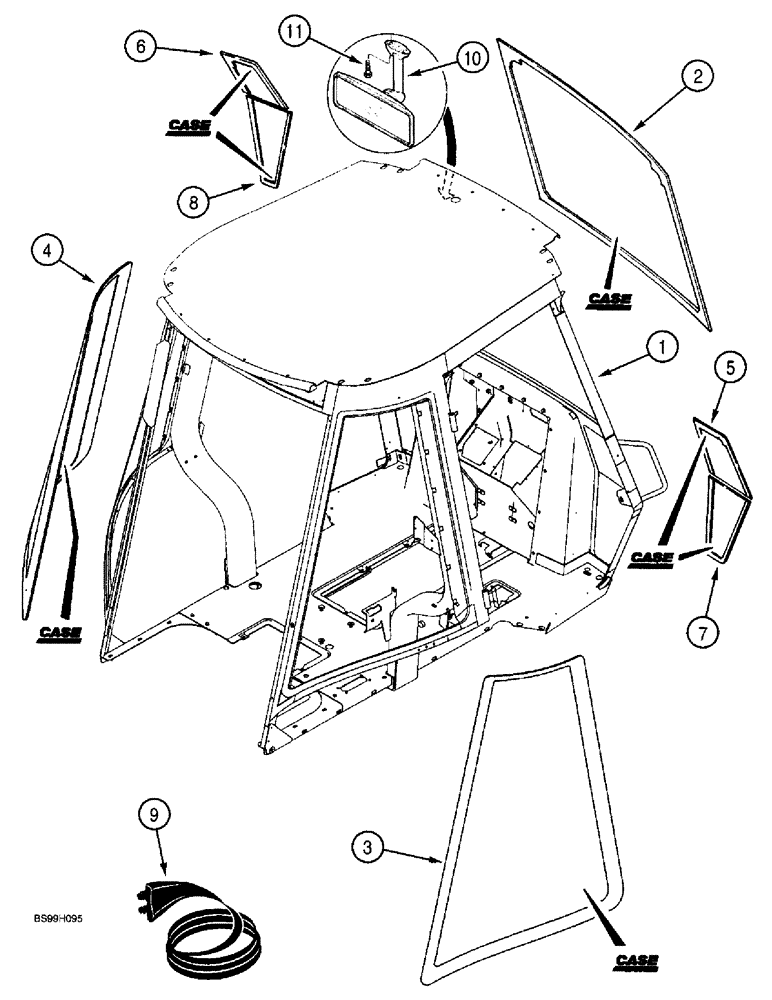

Запчасти Case 590SL (9-74) - ROPS CAB AND GLASS (09) - CHASSIS/ATTACHMENTS

1

280995A2

CAB

ASSEMBLY - ROPS, operators, complete with heat, order from Machinery Price List, parts list figures 9-75 thru 9-90

1шт.

1

280996A2

CAB

ASSEMBLY - ROPS, operators, complete with heat and air conditioning, order from Machinery Price List, parts list figures 9-75 thru 9-90

1шт.

2

97290C1

GLASS

- front windshield, use 3M Superfast Urethane Auto Glass Sealer

1шт.

3

D126204

GLASS

- right-hand rear quarter panel window

1шт.

4

D126205

GLASS

- left-hand rear quarter panel window

1шт.

5

107230A1

GLASS

- knee, upper, right-hand

1шт.

6

107233A1

GLASS

- knee, upper, left-hand

1шт.

7

107232A1

GLASS

- knee, lower, right-hand

1шт.

8

107234A1

GLASS

- knee, lower, left-hand

1шт.

9

108513A1

SEAL, GLASS,290mm L

- 290 mm (11-7/16 inch) long, front knee glass

2шт.

10

143369A2

MIRROR ASSY.

MIRROR - rear view, interior

1шт.

11

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

- self-tapping, Fillister head, No. 10 NC x 1-1/4 inch

2шт.
