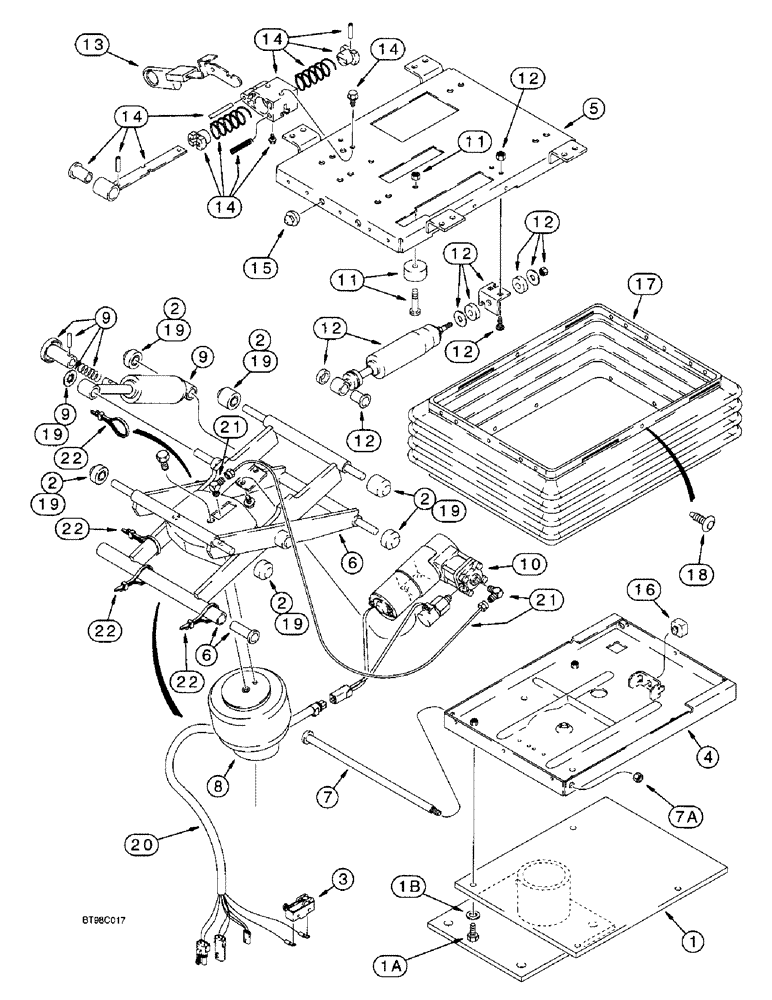

Запчасти Case 590SL (9-73) - DELUXE AIR SUSPENSION SEAT, SUSPENSION ASSEMBLY AND PEDESTAL (09) - CHASSIS/ATTACHMENTS

275547A1

SEAT ASSY.

SEAT ASSEMBLY - air suspension, cloth, deluxe, complete with armrests, continued from previous figure, Includes: Ref. 1 - 22

1шт.

1

300669A1

PEDESTAL

- weldment, base

1шт.

1a

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

4шт.

1b

NSS

NOT SOLD SEPARAT

WASHER - flat, rear, tether

2шт.

300685A1

KIT

- air suspension assembly, includes parts from upper housing plate to lower housing plate, includes all Ref. shown except for the boot and pedestal, Ref 1 and 17

1шт.

2

135512A3

PACKAGE

KIT - roller bearing, isolator, includes (4) narrow rollers, (2) wide rollers, (1) bushing, (1) spacer and (1) retaining ring, isolator

1шт.

3

D137363

SWITCH

- contact, swivel limit

1шт.

4

226560A1

HOUSING

- lower, with upper stop bracket

1шт.

5

300688A1

HOUSING

- upper

1шт.

6

132862A1

DIPPER

ARM - suspension

1шт.

7

143786A1

SHAFT,308.9mm L

- bearing

1шт.

7a

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex, self-locking, 3/8 inch NC

1шт.

8

197793A1

SPRING

KIT - air spring, includes air spring, J-clip and (3) tie straps

1шт.

9

132866A1

SHOCK ABSORBER

KIT - shock absorber, includes shock, (2) bearings, fastener, actuator arm, roll pin, bracket and retaining ring

1шт.

132864A1

KIT

- compressor/valve, includes compressor, valve, mount, air line tubing, (2) screws, (2) sleeves and (2) nuts, Includes: Ref. 10 and compressor mount

1шт.

10

300689A1

KIT

- compressor and valve

1шт.

300690A1

MOUNTING PARTS

MOUNT - compressor

1шт.

11

180593A1

KIT

- bumper, Includes nuts and screws

1шт.

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

340-12520

SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"

2шт.

12

300691A1

SPARE PART SET

KIT - fore/aft isolator latch, includes shock absorber, (3) nuts, (2) washers, (2) grommets, (1) bearing and (15) Christmas tree clips

1шт.

13

1981850C1

GRIP

KNOB - isolator control, fore/aft

1шт.

14

300692A1

SPARE PART SET

KIT - fore/aft isolator latch, includes latch assembly and (2) screws

1шт.

15

133422A1

BUMPER

- rubber

2шт.

16

A45054

BUMPER,Neoprene

- seat

1шт.

17

133421A1

PACKAGE

KIT - boot, with pins

1шт.

18

132872A1

KIT

- boot pin, package of 23 retainers and 3 dome nuts

1шт.

19

180594A3

KIT

KIT - rollers and bearings, includes (2) bushings, (6) rollers, (1) push nut, (5) bearings and (2) spacers

1шт.

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

20

300896A1

HARNESS

- wire, attaches to cab harness

1шт.

21

1990548C4

KIT

- air line and fittings, includes (2) elbows, (1) tee, (2) adapters, 3.5 feet nylon tubing, (5) tie straps and (1) J-clip

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

5шт.
