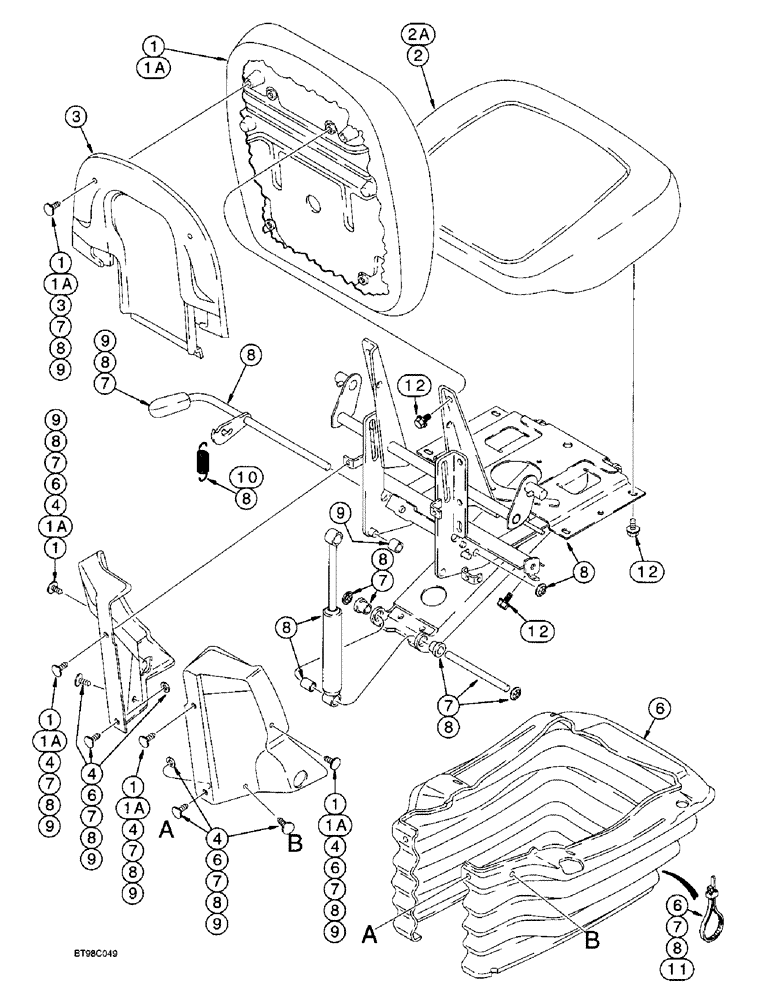

Запчасти Case 590SL (9-70) - SUSPENSION SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

258313A1

SEAT

ASSEMBLY - suspension, gray cloth, without armrests, includes seat, suspension, pedestal, and weight adjuster on figure 9-71, individual component parts not serviced separately, for service order respective component kits, Includes: Ref. 1 - 12

1шт.

259071A1

SEAT ASSY.

SEAT ASSEMBLY - suspension, gray vinyl, without armrests, includes seat, suspension, pedestal, and weight adjuster on figure 9-71, individual component parts not serviced separately, for service order respective component kits, Includes: Ref. 1 - 12

1шт.

1

307094A1

KIT

- backrest cushion, gray cloth, includes lumbar knob, (6) Christmas tree clips and (4) screws

1шт.

1a

307095A1

KIT

- backrest cushion, gray vinyl, includes lumbar knob, (6) Christmas tree clips and (4) screws

1шт.

2

307096A1

KIT

- seat cushion, gray cloth, includes (6) screws

1шт.

2a

307097A1

KIT

- seat cushion, gray vinyl, includes (6) screws

1шт.

3

307091A1

ASSEMBLY

KIT - backrest shroud, includes (2) Christmas tree clips

1шт.

4

307090A1

KIT

- side shroud, left-hand and right-hand, includes (6) Christmas tree clips, (2) washers, (1) height adjustment grip and (1) back angle grip

1шт.

6

307098A1

KIT

- boot, rubber, includes (2) ties, (2) washers and (4) Christmas tree clips

1шт.

7

176919A1

KIT

- swing arm pivot shaft, includes (2) flanged bearings, (4) push nuts, (10) Christmas tree clips, (2) washers, (1) grip and (2) tie straps

1шт.

8

307092A1

KIT

- suspension, includes suspension, back angle adjust, (2) groove pins, (1) handle, (8) screws, (2) springs, (3) washers, (1) rivet, (1) spacer, (2) tie straps, (8) Christmas tree clips, (12) nuts, (1) height adjust grip, (1) back angle grip, (1)

1шт.

9

176921A1

KIT

- plastic components, includes (2) rollers, (4) downstops, (2) roller guides, (2) bearings, (1) bumper, (4) nuts, (10) Christmas tree clips, (2) washers and (1) grip, also see additional kit parts on page 9-109, item 2

1шт.

10

116547A1

KIT

- height adjusting spring, includes (10) shroud plastic retainers, (2) washers, (2) springs and (1) wear strip, see additional kit parts on figure 9-71, Ref. 6

1шт.

11

181170A1

KIT

- cable, fore-aft/swivel mechanism, includes (2) screws, (2) tie straps, cable and (4) nuts

1шт.

12

NSS

NOT SOLD SEPARAT

BOLT - 5/16 inch thread, length as needed, purchase locally, seat cushion and backrest

8шт.
