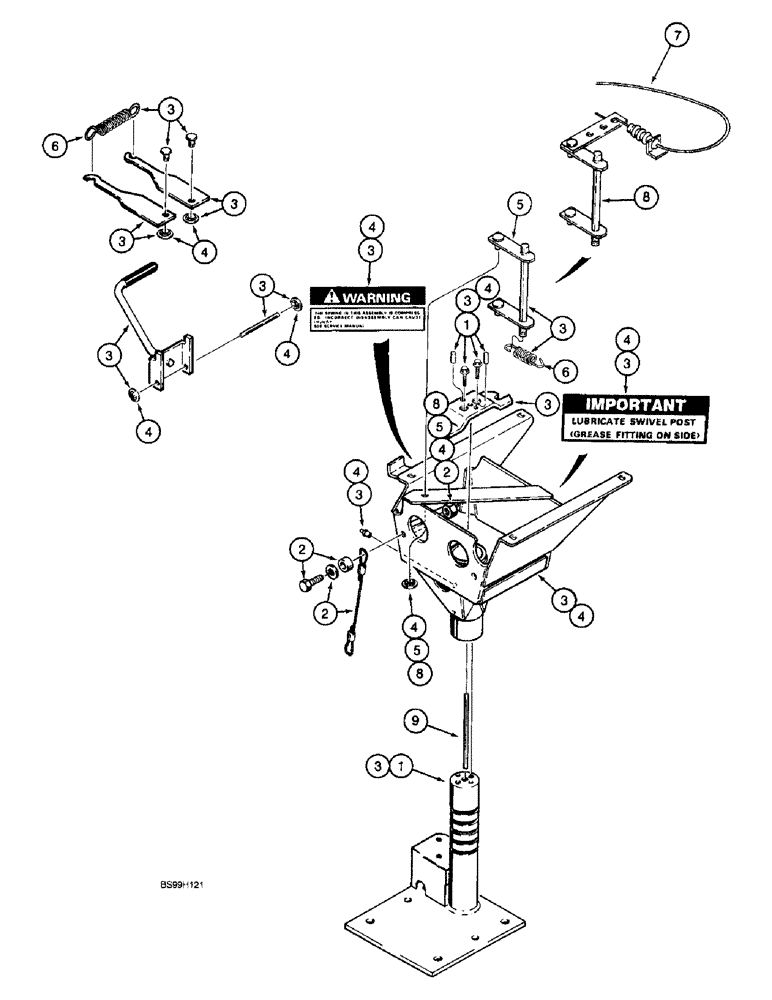

Запчасти Case 590SL (9-69) - STANDARD SEAT SUPPORT AND PEDESTAL (09) - CHASSIS/ATTACHMENTS

185156A1

SEAT

ASSEMBLY - standard, gray vinyl, includes seat on figure 9-69 and support and pedestal below, individual component parts not serviced separately, for service order respective kits, Includes: Ref. 1 - 9

1шт.

1

116761A2

KIT

- support, base

1шт.

Also includes (4) lock nuts for seat adjuster slide on figure 9-68

1шт.

2

116763A1

KIT

- cable, anchor, includes hardware for both ends of cable

1шт.

3

116764A2

KIT

- pedestal, includes 219-16 grease fitting

1шт.

Also includes (4) lock nuts for seat adjuster slide on figure 9-68

1шт.

4

116766A2

KIT

- pedestal box - includes 219-16 grease fitting

1шт.

Also includes (4) lock nuts for seat adjuster slide on figure 9-68

1шт.

5

116767A1

KIT

- swivel latch, includes (6) lock nuts, (1) push nut and (1) swivel latch, if used

1шт.

Also includes (4) lock nuts for seat adjuster slide on figure 9-68

1шт.

6

119171A1

KIT

- spring

1шт.

7

181169A1

KIT

- cable, fore-aft/swivel mechanism, also includes (4) nuts on figure 9-68

1шт.

8

253209A1

KIT

- swivel latch, includes (4) lock nuts, (1) rivet, (1) spacer, (1) washer, (1) push nut and (1) swivel latch, if used

1шт.

9

NSS

NOT SOLD SEPARAT

PIN - seat

1шт.
