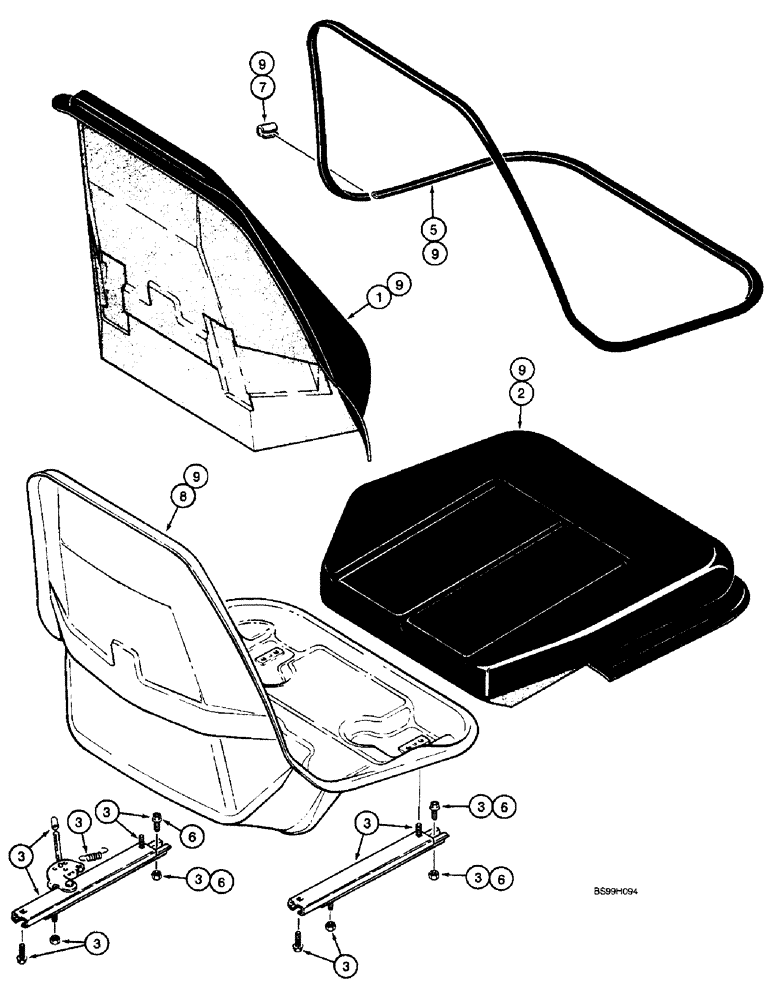

Запчасти Case 590SL (9-68) - STANDARD SEAT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

185156A1

SEAT

ASSEMBLY - standard, gray vinyl, not serviced as a complete assembly, for service order respective component kits, see figure 9-69 for standard support and pedestal, Includes: Ref. 1 - 6

1шт.

1

176926A1

KIT

- backrest cushion, gray

1шт.

2

176925A1

KIT

- seat cushion, gray

1шт.

3

116760A1

KIT

- adjuster, seat slide, fore/aft

1шт.

5

176924A1

SET OF PARTS

TRIM - edging, gray, Serial Range: cushion-shell

1шт.

6

181169A1

KIT

- cable, fore-aft/swivel mechanism, also includes cable on figure 9-69

1шт.

7

NSS

NOT SOLD SEPARAT

CLIP - retainer, order N7802 clip kit, see below

1шт.

8

NSS

NOT SOLD SEPARAT

SHELL - seat frame, order 234223A1 shell, cushion and trim kit, Ref 9

1шт.

9

234223A1

SEAT

KIT - seat shell, cushion and trim, includes Ref 1, 2, 5 and 8

1шт.

N7802

CLIP

KIT - clip, includes item 7 clip above, plus 6 additional narrow clips

1шт.
