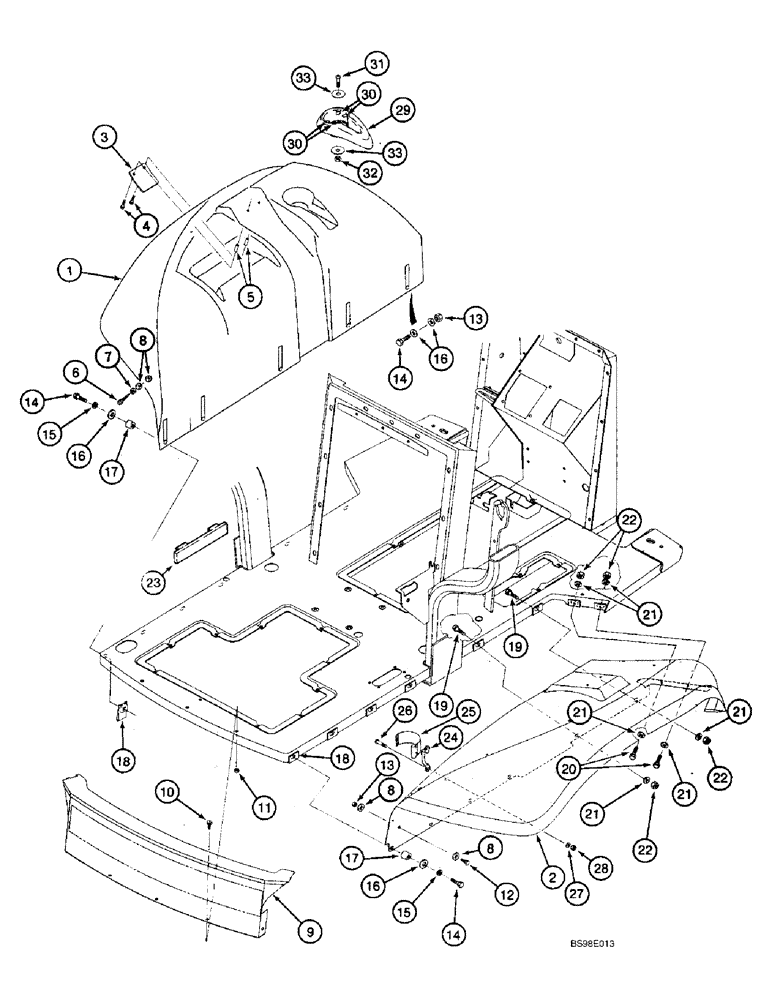

Запчасти Case 590SL (9-64) - REAR FENDERS AND REAR CLOSURE PANEL, ROPS CANOPY MODELS (09) - CHASSIS/ATTACHMENTS

1

133025A1

FENDER

- left-hand

1шт.

2

133024A1

FENDER

- right-hand

1шт.

3

141404A1

LARGE PLATE

PLATE - fender support

2шт.

4

781-24830

SELF-TAP SCREW,Hex Flg, M8 x 1.25 x 30mm

BOLT - hex flange, self-tapping, 8 - 1.25 x 30 mm

4шт.

5

144282A1

SPACER

- 16 x 10 mm long, fender support plate

4шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

8шт.

9

136745A1

LARGE PLATE

PANEL - rear closure

1шт.

10

112865A1

SCREW

- pointed, self-aligning, special, 5/16 NC x 13/16 inch

3шт.

11

425-285

FLANGE NUT,Flg, 5/16"-18, G5

- hex flange, 5/16 inch NC

3шт.

12

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

13

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

4шт.

14

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

HH, CL 8.8, M8 x 1.25 x 30

12шт.

15

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

19шт.

16

495-81001

WASHER,5/16"

- flat, 3/8 x 1-1/8 x 1/16 inch

14шт.

17

144282A1

SPACER

- 16 x 10 mm long

10шт.

18

833-40408

NUT,M8, U

12шт.

19

614-8045

BOLT,Hex, M8 x 1.25 x 45mm, Cl 8.8, Full Thd

Mud guard to fender, see Fig 9-66 for mud guard Hex, M8 x 45, 8.8, Full Thd

2шт.

20

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

- hex, 8 - 1.25 x 35 mm, Mud guard to fender, See figure 9-66 for mud guard

2шт.

21

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

6шт.

22

832-10408

NUT,M8 x 1.25, Cl 8.8

NUT, M8 x 1.25, Cl 8

4шт.

23

188482A1

SEALING STRIP

SEAL - foam, fender

2шт.

24

182594A1

HANDLE

BRACKET - velcro retainer

2шт.

25

184726A1

FIXING STRIP

STRAP - velcro, right-hand fender

1шт.

26

842-1425

SCREW,Phillips Drive, Oval HD, M4 x 25mm, Cl 4.8

- machine, oval countersunk Phillips, 4 - 0.7 x 25 mm

4шт.

27

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(Flat, 4.3 x 9 x 0.8 mm) M4

4шт.

28

832-10404

NUT,M4 x 0.7, Cl 8.8

NUT - hex, self-locking, 4 mm - 0.7

4шт.

29

303022A1

INSERT

- coffee cup holder, black plastic liner, optional deluxe interior, Includes: Ref. 30

1шт.

30

304061A1

BUMPER,Rubber

- rubber

4шт.

31

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

1шт.

32

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

33

495-61020

WASHER,0.203" ID x 0.75" OD x 0.067" Thk

- flat, 13/64 x 3/4 x 1/16 inch

2шт.
