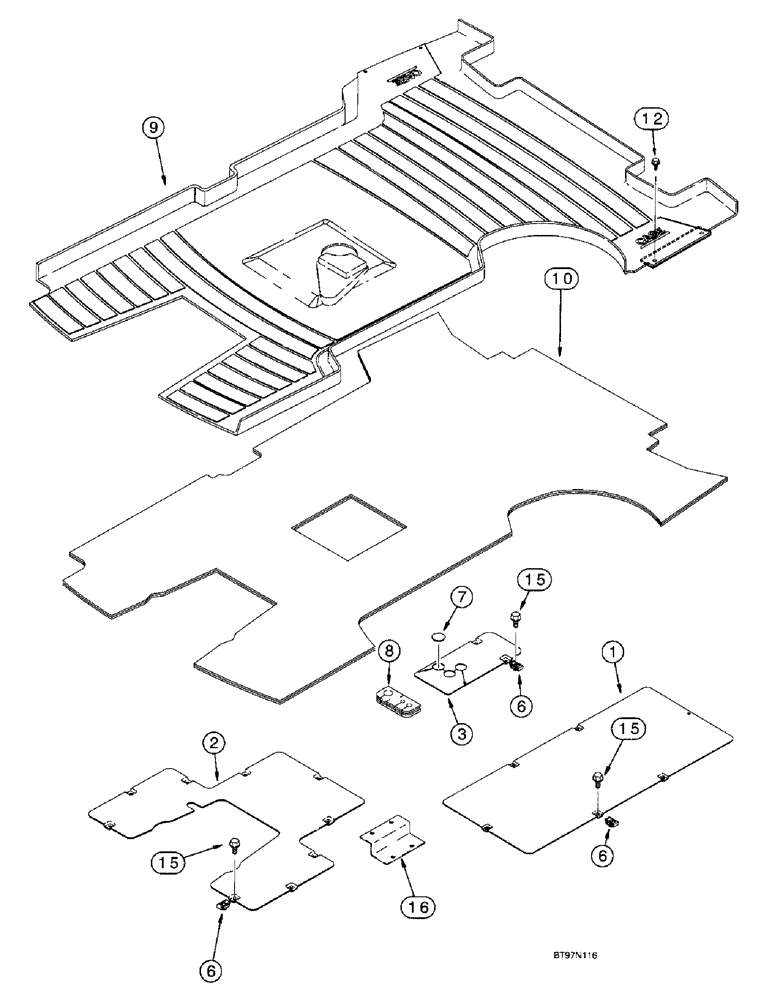

Запчасти Case 590SL (9-63) - FLOOR PLATES AND FLOORMATS (09) - CHASSIS/ATTACHMENTS

1

234913A1

LARGE PLATE

PLATE - floor, front cover

1шт.

2

298449A1

LARGE PLATE

PLATE - floor, rear cover

1шт.

3

127377A1

LARGE PLATE

PLATE - floor, loader control lever mounting

1шт.

6

833-40406

NUT,M6, U

- U-type, 6 mm - 1.0

21шт.

7

353-422

PLUG,Dome, 1.250" hole, Nylon

Used on models without clam bucket Dome, 1.250" hole, Nylon

1шт.

8

127378A3

RUBBER INSULATOR

GROMMET - rubber, floor

1шт.

9

243122A1

FLOOR MAT

FLOORMAT - cab models, waffle back

1шт.

10

182296A1

PAD

- foam, floormat, if used

1шт.

12

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW - self-tapping, hex washer head, No. 10 - 16 x 1 inch

4шт.

15

233724A1

FLANGE BOLT,Hex, M6 x 1 x 25mm

BOLT - hex washer, self-aligning, 6 - 1.0 x 25 mm

19шт.

16

223199A1

SUPPORT

BRACKET - mounting, heater hoses, if used

1шт.
