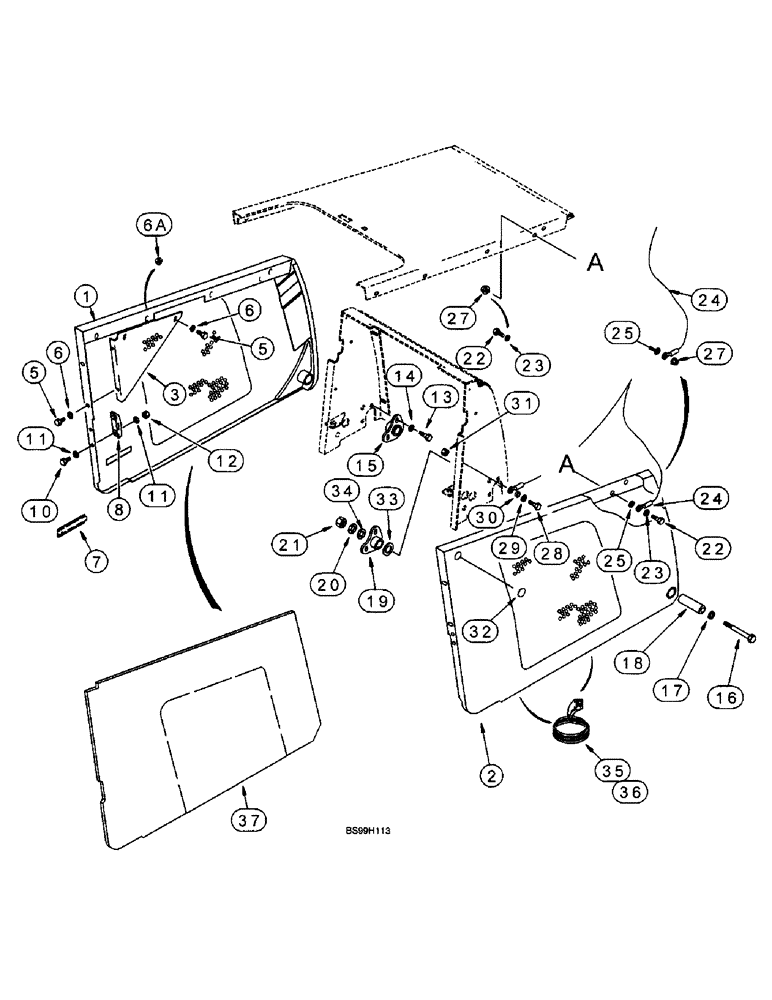

Запчасти Case 590SL (9-61) - ENGINE SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

359430A1

PANEL, SIDE

PANEL - engine, left-hand side, with grille, Replaces 233523A1

1шт.

2

359429A1

PANEL, SIDE

PANEL - engine, right-hand side, with grille, Replaces 233522A1

1шт.

3

139492A1

LARGE PLATE

BRACE - side panel, left-hand

1шт.

4

139490A1

LARGE PLATE

BRACE - side panel, right-hand, not shown

1шт.

5

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

8шт.

6a

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5

4шт.

7

183168A1

HANDLE

- side panel, left-hand

1шт.

8

D143715

SUPPORT

BRACKET - side panel, left-hand

1шт.

9

D143714

SUPPORT

BRACKET - side panel, right-hand, not shown

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

NUT, LOCK, M10 x 1.5, Cl 8

4шт.

13

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT - hex washer, special, 10 - 1.5 x 30 mm

4шт.

14

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

4шт.

15

139835A1

PIVOT

PLATE - pivot, left-hand, 22 mm long tube, no longer available, order 310843A1 plate

1шт.

15

310843A1

PIVOT

PLATE - pivot, left-hand, 25 mm long tube, self-lubricating

1шт.

16

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

- hex, 12 - 1.75 x 110 mm, 8.8, used with 140428A1 tube

2шт.

16

814-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

- hex, 12 - 1.75 x 120 mm, used with 299249A1 tube

2шт.

17

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

- flat, 13.5 x 28 x 4 mm, hardened, Replaces 895-15012 washer used on some models

2шт.

18

140428A1

TUBE,14.3 mm ID, 25.4 mm OD, 87 mm Length

- pivot, 14.3 x 25.4 x 87 mm long, no longer available, order 299249A1 tube

2шт.

18

299249A1

TUBE,13.5 mm ID, 25.36 mm OD, 90 mm Length

- pivot, 13.5 x 25.3 x 90 mm long, self-lubricating

2шт.

19

139834A1

PIVOT

PLATE - pivot, right-hand, 22 mm long tube, no longer available, order 310842A1 plate

1шт.

19

310842A1

PIVOT

PLATE - pivot, right-hand, 25 mm long tube, self-lubricating

1шт.

20

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

- flat, 13.5 x 28 x 4 mm, hardened, Replaces 895-15012 washer used on some models

2шт.

21

829-1412

NUT,M12, Cl 10.9

- hex, 12 mm - 1.75, class 10

2шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

24

144908A1

CABLE

- hood retaining

1шт.

25

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

- 10 ID x 16 O.D. x 6 mm long, cable

1шт.

27

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5

1шт.

28

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

30

D143417

SPACER,10.31mm ID x 15.88mm OD x 6.4mm L

- 10 ID x 16 O.D. x 6 mm long, cable

1шт.

31

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

32

D140267

PLUG,30.16mm OD

- side panel

2шт.

33

495-11106

WASHER,1", SAE

- flat, 1-1/16 x 2 x 1/8 inch, Used with 139834A1 or 139835A1 plate

2шт.

34

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

Used with 139834A1 or 139835A1 plate M13.5 x 24.5 x 3, HT

2шт.

35

234923A1

PROTECTOR

TRIM - 150 mm (5-29/32 inch) long, used on models with air conditioning

2шт.

36

244441A1

ADHESIVE STRIP

TRIM - 700 mm (27-9/16 inch) long, used on models with air conditioning

2шт.

37

297836A1

LARGE PLATE

PANEL - noise reduction, insulation, right-hand side

1шт.

38

297837A1

LARGE PLATE

PANEL - noise reduction, insulation, left-hand side, not shown

1шт.

6

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

8шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

8шт.

23

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.

29

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

- flat, 11 x 20 x 2 mm

1шт.
