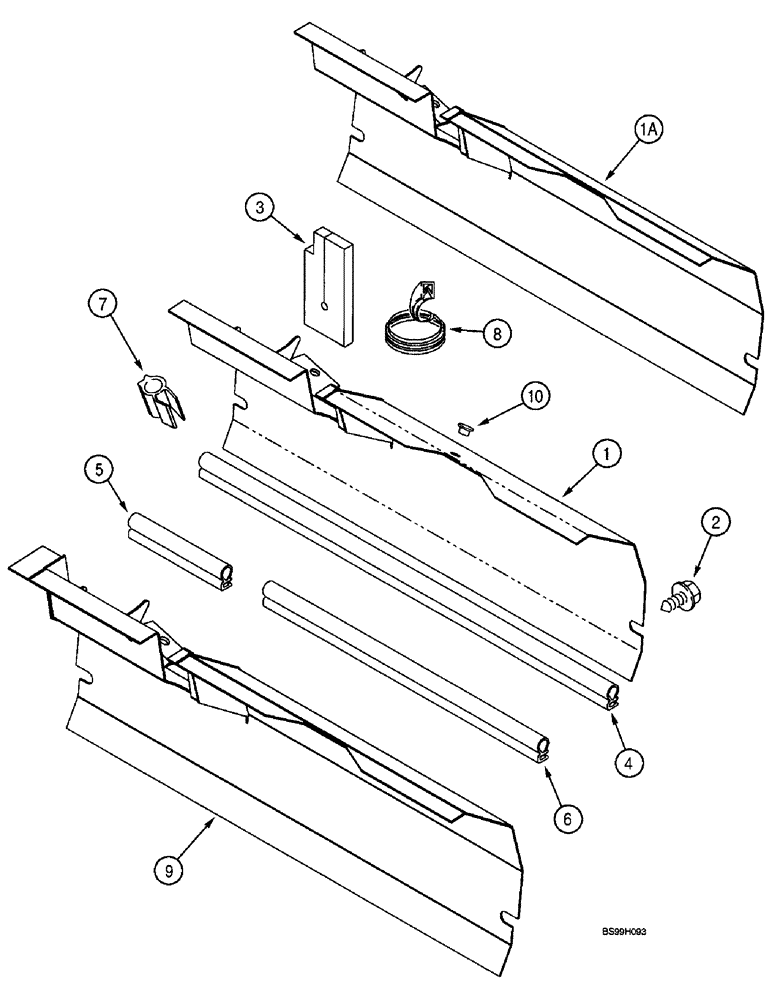

Запчасти Case 590SL (9-60) - BAFFLE PLATE AND SEALS (09) - CHASSIS/ATTACHMENTS

1

245011A1

LARGE PLATE

PLATE - baffle, no longer available, order 245011A3 plate

1шт.

1a

245011A3

BAFFLE

PLATE - baffle, heavy duty, with air conditioning, horn mounting hole relocated; Replaces 245011A2 plate, if used

1шт.

2

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT - hex washer, special, 10 - 1.5 x 30 mm

2шт.

3

305690A1

SEAL

- foam, adhesive-backed

1шт.

4

245450A1

RUBBER SEAL,571mm L

TRIM - edge, 571 mm (22-1/2 inch) long

1шт.

5

246063A1

SEAL

TRIM - edge, 170 mm (6-11/16 inch) long, cut from 233749A1 bulk trim

1шт.

6

246064A1

SEAL

TRIM - edge, 365 mm (14-3/8 inch) long, cut from 233749A1 bulk trim

1шт.

7

185493A1

SEAL

TRIM - edge, 160 mm (6-5/16 inch) long, cut from 137315A1 bulk trim

2шт.

8

D36179

LINING

TRIM - edge, 108 mm (4-1/2 inch) long, cut from F42827 bulk trim

1шт.

9

313534A1

PLATE

- baffle, standard, with air conditioning, Replaces 245011A3 plate used on some models, if used

1шт.

10

353-402

PLUG,Dome, .375" hole, Nylon

If used Dome, .375" hole, Nylon

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 2946 mm (116 inch) long

1шт.

137315A1

SEAL,899.6mm L

TRIM - edge, bulk, 900 mm (35-7/16 inch) long

1шт.

233749A1

SEAL

TRIM - edge, bulk, 76200 mm (3000 inch or 250 feet) long

1шт.
