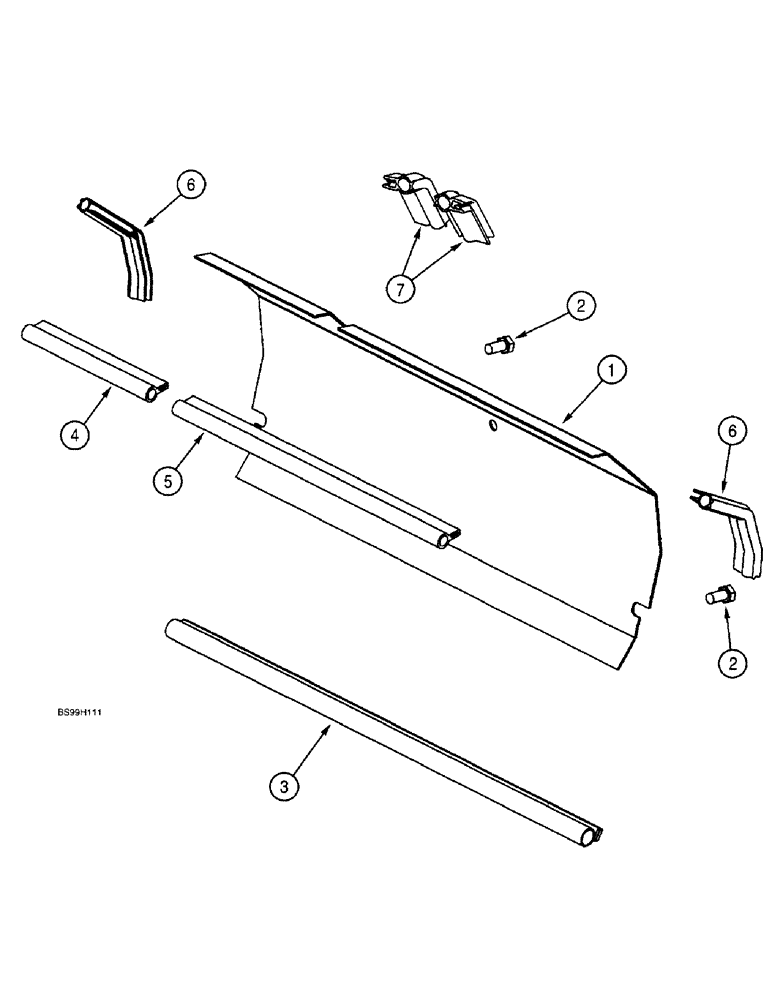

Запчасти Case 590SL (9-59) - BAFFLE PLATE AND SEALS, USED WITH FUEL COOLER, WITHOUT AIR CONDITIONING (09) - CHASSIS/ATTACHMENTS

1

362006A1

PLATE

- baffle

1шт.

2

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

BOLT - hex washer, special, 10 - 1.5 x 30 mm

2шт.

3

245450A1

RUBBER SEAL,571mm L

TRIM - edge, 571 mm (22-1/2 inch) long

1шт.

4

246063A1

SEAL

TRIM - edge, 170 mm (6-11/16 inch) long, cut from 233749A1 bulk trim

1шт.

5

246064A1

SEAL

TRIM - edge, 365 mm (14-3/8 inch) long, cut from 233749A1 bulk trim

1шт.

6

185493A1

SEAL

TRIM - edge, 160 mm (6-5/16 inch) long, cut from 137315A1 bulk trim

2шт.

7

363403A1

SEAL

TRIM - edge, 57 mm (2-1/4 inch) long

2шт.

233749A1

SEAL

TRIM - edge, bulk, 76200 mm (3000 inch or 250 feet) long

1шт.

137315A1

SEAL,899.6mm L

TRIM - edge, bulk, 900 mm (35-7/16 inch) long

1шт.
