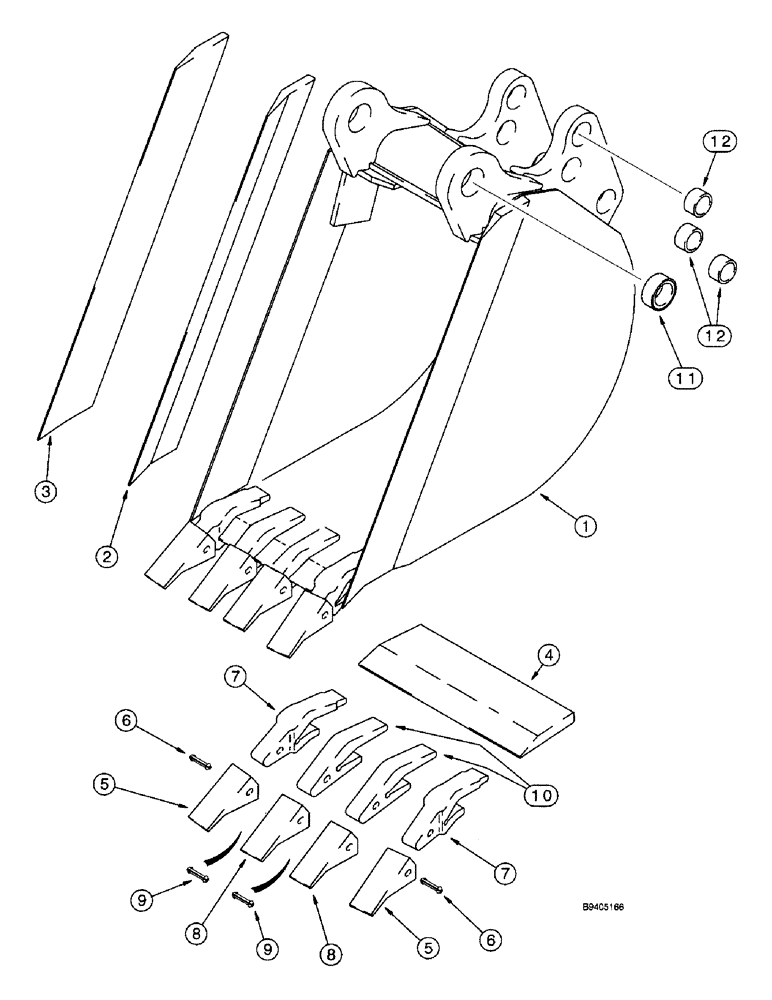

Запчасти Case 590SL (9-48) - UNIVERSAL BACKHOE BUCKETS, 406MM (16") & 457MM (18") WIDE, 406MM (16") WIDE TRENCHING BUCKET & TEETH (09) - CHASSIS/ATTACHMENTS

1

D147247

BUCKET

ASSEMBLY - heavy duty trenching, with 3 teeth, order from Machinery Price List, 406 mm (16 inch) wide, not shown, Includes: Ref. 2 - 12

1шт.

2

D146421

EDGE, CUTTING

EDGE - cutting, right-hand side, bucket

1шт.

3

D146420

EDGE, CUTTING

EDGE - cutting, left-hand side, bucket

1шт.

4

D147249

EDGE

- cutting, center, 406 mm (16 inch) bucket

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy - outer corners, Includes Ref 5 - 7

2шт.

5

D51750

BUCKET TOOTH POINT

POINT - tooth, outer corners

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

PIN - flex, Outer point and shank

1шт.

7

D138157

SHANK

- tooth, outer corners

1шт.

D139849

BUCKET TOOTH

TOOTH ASSEMBLY - center, Includes Ref 8 - 10

1шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, center

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

PIN - flex, Center point and shank

1шт.

10

D48212

SHANK

- tooth, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 1-3/4 x 2-1/4 x 1-1/4 inch

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 x 1-7/8 x 1-1/4 inch

6шт.

1

D146588

BUCKET

ASSEMBLY - heavy duty trenching, with 4 teeth, order from Machinery Price List, 457 mm (18 inch) wide, Includes: Ref. 2 - 12

1шт.

2

D146421

EDGE, CUTTING

EDGE - cutting, right-hand side, bucket 457 mm (18 inch) wide trenching bucket and teeth, heavy duty

1шт.

3

D146420

EDGE, CUTTING

EDGE - cutting, left-hand side, bucket 457 mm (18 inch) wide trenching bucket and teeth, heavy duty

1шт.

4

D145060

EDGE, CUTTING,444.6mm W x 165.1mm L

EDGE - cutting, center, 457 mm (18 inch) bucket 457 mm (18 inch) wide trenching bucket and teeth, heavy duty

1шт.

D139851

BUCKET TOOTH

TOOTH, BUCKET, Assy - outer corners, Includes Ref 5 - 7, 457 mm (18 inch) wide trenching bucket and teeth, heavy duty

2шт.

5

D51750

BUCKET TOOTH POINT

POINT - tooth, outer corners 457 mm (18 inch) wide trenching bucket and teeth, heavy duty

1шт.

6

245466A1

RETAINER,Flexpin, Bucket Tooth

PIN - flex, Outer point and shank, 457 mm (18") wide trenching bucket and teeth, heavy duty

1шт.

7

D138157

SHANK

- tooth, outer corners 457 mm (18 inch) wide trenching bucket and teeth, heavy duty

1шт.

D139849

BUCKET TOOTH

TOOTH ASSEMBLY - center, Includes Ref 8 - 10, 457 mm (18 inch) wide trenching bucket and teeth, heavy duty

2шт.

8

D51750

BUCKET TOOTH POINT

POINT - tooth, center 457 mm (18 inch) wide trenching bucket and teeth, heavy duty

1шт.

9

245466A1

RETAINER,Flexpin, Bucket Tooth

PIN - flex, Center point and shank, 457 mm (18") wide trenching bucket and teeth, heavy duty

1шт.

10

D48212

SHANK

- tooth, center 457 mm (18 inch) wide trenching bucket and teeth, heavy duty

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 1-3/4 x 2-1/4 x 1-1/4 inch 457 mm (18 inch) wide trenching bucket and teeth, heavy duty

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- 1-1/2 x 1-7/8 x 1-1/4 inch 457 mm (18 inch) wide trenching bucket and teeth, heavy duty

6шт.
