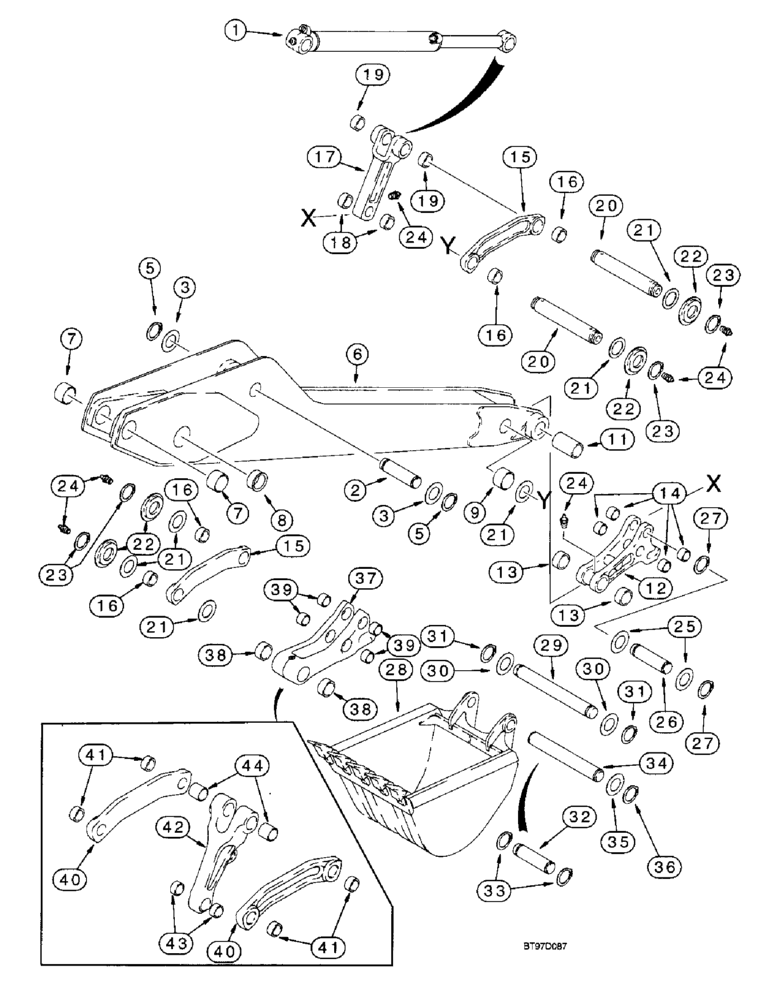

Запчасти Case 590SL (9-45) - BACKHOE DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS

1

296434A1

CYLINDER,Double Acting, 69.8mm Rod, 872mm Stroke

ASSEMBLY - 95 (3-3/4) ID x 872 mm (34-5/16 inch) stroke, bucket, parts list figure 9-21

1шт.

1

296434A1R

REMAN-HYD CYLINDER

590SL Series 2

1шт.

1

296434A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

175316A1

PIN,60mm OD x 199mm L

- bucket cylinder closed, end, dipper

1шт.

3

H433285

SPACER

SHIM - 57 x 76 x 1.5 mm

1шт.

5

800-4155

SNAP RING,55mm ID

RING - external retaining, No. 55, pin retaining

2шт.

302070A1

DIPPER

ASSEMBLY - backhoe, service replacement, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

DIPPER - backhoe

1шт.

7

D144161

BUSHING,70.19mm ID x 80mm OD x 46mm L

- 70 (2-3/4) ID x 50 mm (2 inch) long

2шт.

8

D151059

BUSHING,80.19mm ID x 104mm OD x 42mm L

- 80 (3-5/32) ID x 46 mm (1-13/16 inch) long

2шт.

9

D140029

BUSHING,50.22mm ID x 60mm OD x 25.5mm L

- 50 x 60 x 25.5 mm long, bucket link pivot

2шт.

11

307186A1

BUSHING,44.6mm ID x 57.15mm OD x 104mm L

- 104 mm long, bucket coupler pivot, not included with dipper assembly, order separately

2шт.

134437A1

COUPLING

COUPLER ASSEMBLY - bucket, used with Ref. 15 and 17 links, if used, see Ref. 37 - 44 for optional coupler and links, Includes: Ref. 12 - 14

1шт.

12

NSS

NOT SOLD SEPARAT

COUPLER - backhoe bucket

1шт.

13

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

- 30 mm long, special, at dipper

2шт.

14

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

- 28 mm long, at bucket link

4шт.

15

D150608

PITMAN

LINK - bucket guide, used with 134437A1 coupler, if used, see Ref. 37 - 44 for optional coupler and links, Includes: Ref. 16

2шт.

16

D150122

BUSHING

- 50 x 60 x 33 mm

2шт.

17

D150080

PITMAN

LINK - bucket dump, with two bushings at forked end, used with 134437A1 coupler, if used, see Ref. 37 - 44 for optional coupler and links, Includes: Ref. 18 and 19

1шт.

18

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

- 28 mm long

2шт.

19

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

- 54 mm (2-1/8 inch) long

2шт.

20

D141142

PIN,50mm OD x 306mm L

- 306 mm long, Guide links, Replaces 175317A1

2шт.

21

495-81282

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 3/32 inch

1шт.

22

D141164

SPACER,46mm ID x 76mm OD x 2.5mm Thk

- 1-13/16 x 3 x 1/8 inch

4шт.

23

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

4шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

6шт.

25

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

26

D146288

PIN,44.45mm OD x 167mm L

Dump Link to Bucket Coupler

1шт.

27

103-16175

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

28

REF

INSTRUCTION

BUCKET - backhoe, see figures 9-47 - 9-51 for bucket options

1шт.

29

D149298

PIN,44.38mm OD x 331mm L

- dipper to bucket

1шт.

30

D143324

WASHER,38.15mm ID x 64mm OD x 1.7mm Thk

- spacer, 38 x 64 x 2 mm

2шт.

31

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

32

D37614

PIN,38mm Od x 246mm L

- rear of bucket coupler, 12 inch (305 mm) Universal bucket only

1шт.

33

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Pin #175, Ext

2шт.

34

D150619

PIN,44.29mm OD x 372.6mm L

- Dipper to bucket and bucket coupler, all buckets except 305 mm (12 inch) buckets, for models with 12 inch bucket see Ref. 32 pin

1шт.

35

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

36

103-16175

SNAP RING,#175, Ext

Ring, Snap, , Dipper to bucket pin #175, Ext

2шт.

294195A1

COUPLING,Bucket, Extendable Dipper

COUPLER ASSEMBLY - bucket, may replace 134437A1 (Ref. 12) coupler on some models, used with Ref. 40 and 42 links, if used, Includes: Ref. 37 - 39

1шт.

37

NSS

NOT SOLD SEPARAT

COUPLER - bucket, if used

1шт.

38

D127167

BUSHING,57.34mm ID x 70mm OD x 30mm L

- 30 mm long, special, at dipper

2шт.

39

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

- 28 mm long, at bucket link

4шт.

40

242562A1

LINK ASSY.

LINK - bucket guide, used with 294195A1 coupler, if used, Includes: Ref. 41

2шт.

41

D150122

BUSHING

- 50 x 60 x 33 mm

2шт.

42

242561A1

PITMAN

LINK - bucket dump, used with 294195A1 coupler, if used, Includes: Ref. 43 and 44

1шт.

43

D127172

BUSHING,44.75mm x 57.15mm OD x 28mm L

- 28 mm long

2шт.

44

D138047

BUSHING,50.22mm ID x 60mm OD x 54mm L

- 54 mm (2-1/8 inch) long

2шт.
