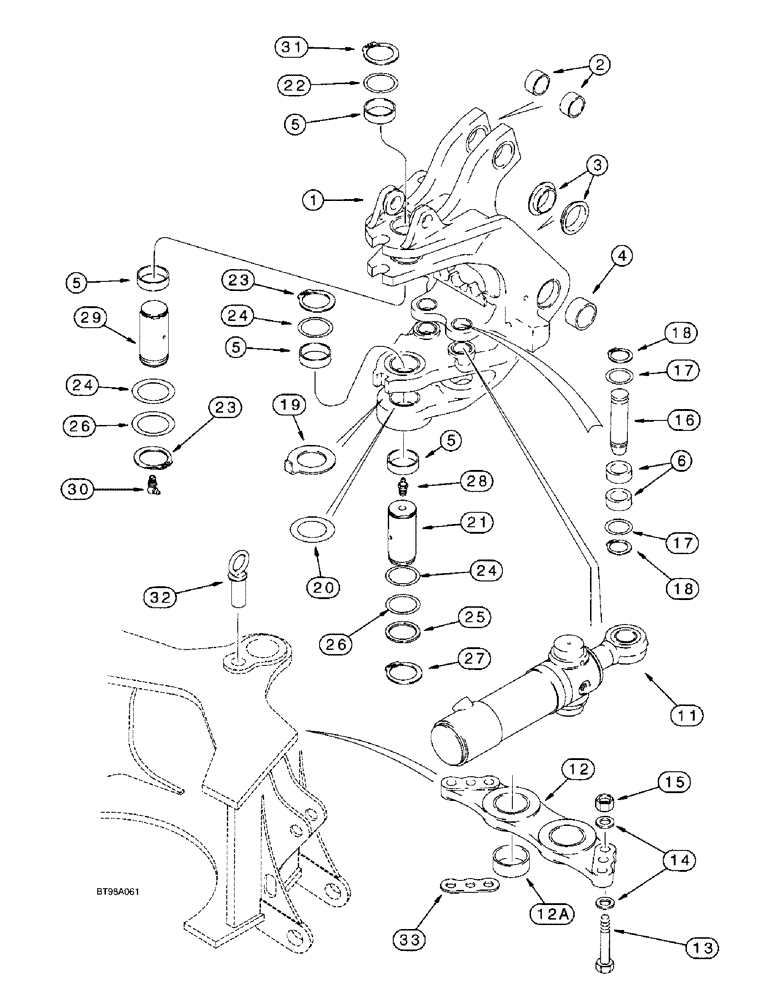

Запчасти Case 590SL (9-42) - BACKHOE SWING CYLINDERS AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

140515A1

TOWER

ASSEMBLY - backhoe swing, Includes: Ref. 2 - 6

1шт.

2

D151061

BUSHING,80.19mm ID x 100mm OD x 32mm L

- boom cylinder pivot

2шт.

3

221476A1

BUSHING,80.19mm ID x 94mm OD x 23mm L

- inner, boom pivot

2шт.

4

D144170

BUSHING,80.19mm ID x 90mm OD x 20mm L

- outer, boom pivot

2шт.

5

D151060

BUSHING,70.19mm ID x 90mm OD x 30mm L

- swing tower pivot

4шт.

6

135249A1

BUSHING,50.96mm ID x 63.5mm OD x 28.6mm L

- swing cylinder pivot, 28.6 mm long

4шт.

11

139808A2

HYDRAULIC CYLINDER,Double Acting, 50.8mm Rod, 292mm Stroke

Assy, 102 (4) ID x 292 mm (11-1/2 inch) stroke, Swing, Parts list figure 9-18

2шт.

11

139808A2R

REMAN-HYD CYLINDER

Assy, 102 (4) ID x 292 mm (11-1/2 inch) stroke, Swing, Parts list figure 9-18

2шт.

11

139808A2C

CORE-HYD CYLINDER

Return Number

2шт.

12

198976A1

PLATE

Bracket, Swing cylinder to frame, Incl Ref 12A

1шт.

12a

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

- 80 mm ID, cylinder pivot

2шт.

13

827-20075

BOLT,Hex, M20 x 2.5 x 75mm, Cl 10.9, Full Thd

- hex, 20 - 2.5 x 75 mm, class 10.9

6шт.

14

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

- flat, 22 x 37 x 4 mm, hardened

12шт.

15

829-1420

NUT,M20, Cl 10

6шт.

16

135247A1

PIN

- swing cylinder rod end to swing tower

2шт.

17

495-81227

WASHER,52.38mm ID x 74.63mm OD x 1.7mm Thk

- flat, 2-1/16 x 2-15/16 x 1/16 inch

1шт.

18

103-16200

SNAP RING,#200, Ext

Ring, Snap, , Pin #200, Ext

4шт.

19

220489A1

LOCK WASHER

- bearing, 5 mm thick, swing tower

1шт.

20

134167A1

SHIM,72mm ID x 140mm OD x 2.05mm Thk

- 2.05 mm (.08 inch) thick

1шт.

21

175597A1

PIN,70mm OD x 175mm L

- lower, swing tower to frame, grease fitting mounts in top of pin

1шт.

22

175323A1

SHIM

- 1.6 mm thick

1шт.

23

800-40070

SNAP RING,M70 Ext

RING - external retaining, No. 70, pin retaining

2шт.

24

D136392

SHIM,72mm ID x 89mm OD x 3.05mm Thk

(M72 ID x 89 OD) 3.05mm Thk

1шт.

25

175323A1

SHIM

- 1.6 mm thick, lower

1шт.

26

D136391

SHIM,72mm ID x 89mm OD x 1.57mm Thk

(M72 ID x 89 OD) 1.57mm Thk

1шт.

27

800-40065

SNAP RING,M65, Ext

RING - external retaining, No. 65, pin retaining, lower

1шт.

28

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

29

139262A1

PIN,70mm OD x 161mm L

- swing tower to frame, upper

1шт.

30

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

31

800-40065

SNAP RING,M65, Ext

RING - external retaining, No. 65, pin retaining

1шт.

32

D149240

PIN

- swing stop, without snap ring

1шт.

33

197718A1

SHIM

- swing cylinder spacer, use as required between bracket and ear of main frame, shims may be required on one end or both ends of bracket, if used

1шт.
